WQD-A
Category:
SUBMERSIBLE SEWAGE PUMPS
- Product description
- Model parameter table

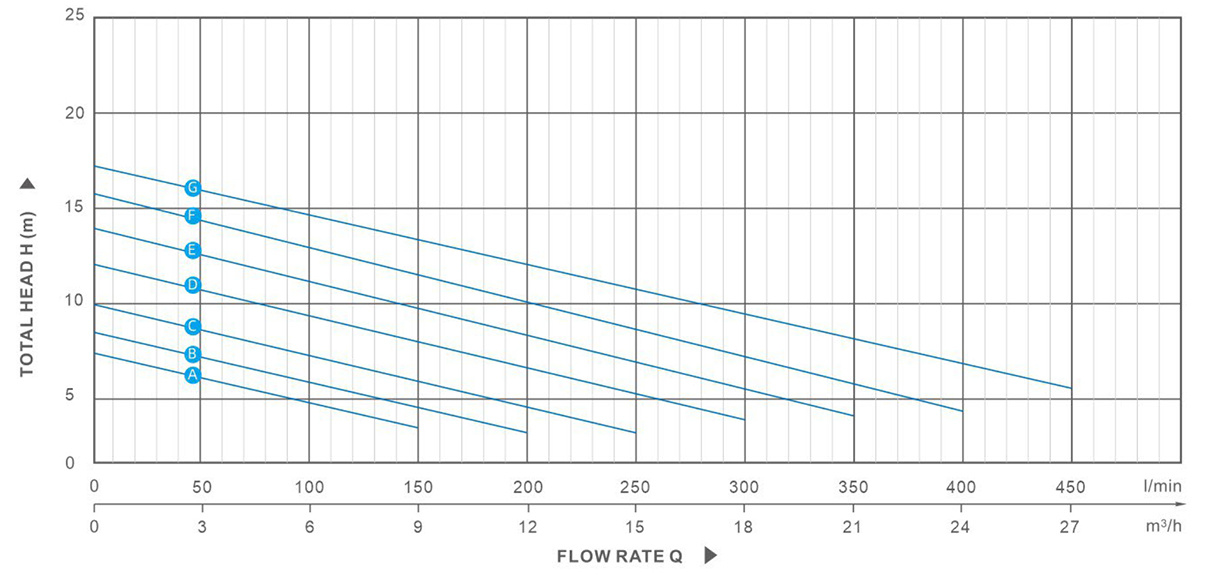

- Performance curve
- Package
- Parts
-
Applications
● Suitable for use with dirty water that is not chemically aggressive towards the materials fromwhichthepumpismade.
● As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as clearing dirty water, discharging domestic waste water, and for emptying collection traps containing partical up to a maximum of Φ10mm.Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP68
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50HZ, 60Hz if requestOperating conditions
● 5m maximum immersion depth
● Liquid temperature upto 35°C
● Maximum ambient temperature 40°CComponent Construction
● Pump body: Cast iron
● Suction filter: AISI304 SS
● Impeller: Cast iron
● Motor shaft: AISI304SS
● Mechanical seal: SIC-SIC/Ceramic-Graphite
● Cable: 6m power cable with plugKey words:- vcm
- the
- and
- motor
- pump
- to
- for
- if
- in
- are
-
(50Hz n=2850 rpm/min)
Model Inlet/ Outlet
Power
Flow
Q(m3/h) 0 3 6 9 12 15 18 21 24 27 Inch kW HP (L/min) 0 50 100 150 200 250 300 350 400 450 WQD370F-A
1¼" 0.25 0.34 H(m)
7 6 4.5 2.8 WQD370F-A
1¼" 0.37
0.5 8 7 6 4.2 2.5 WQD550F-A
2" 0.55 0.75 10 8 7 5.5 3.5 2.5 WQD750F-A
2" 0.75 1 12 10 9 7.5 6.5 4.5 3 WQD1100F-A
2" 1.1 1.5 14 12 11 10 8.5 7.5 5.5 3.8 WQD1500F-A
2" 1.5 2 15.5 14.3 13 12 11 9 8 6.5 4.6 WQD2200F-A
2" 2.2 3 16.5 15.5 14.5 14 13 11 10.5 9 7.5 5.7 -

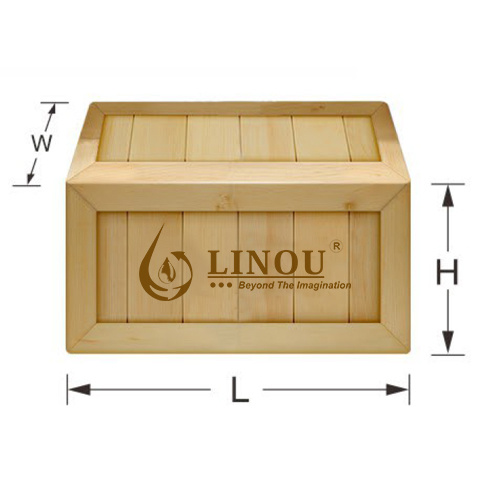

n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 1¼" 7.5 265x220x365 1¼" 8.5 265x220x380 2" 13 265x220x435 2" 14 265x220x435 2" 16 265x220x435 2" 19 265x220x515 2" 21 265x220x530 -
