V-A/B
Category：
SUBMERSIBLE SEWAGE PUMPS
- Product description
- Model parameter table

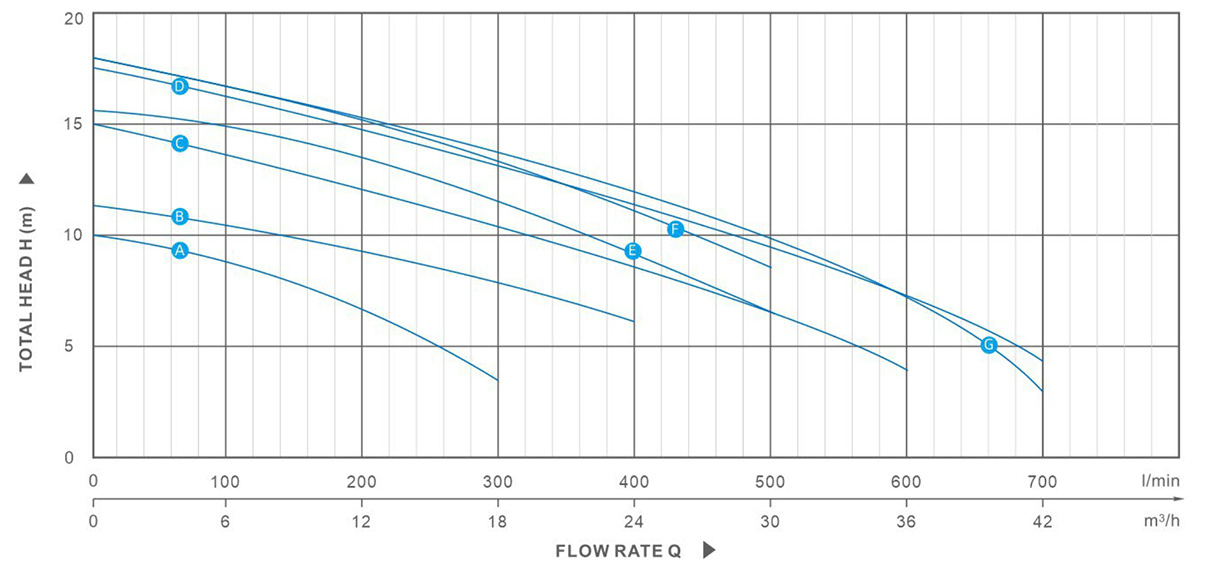

- Performance curve
- Package
- Parts
-
Applications
● Suitable for use with dirty water that is not chemically aggressive towards the materials fromwhichthepumpismade.
● As a result of their reliability and the fact that they are easy to use, and suitablefor use in applications such as clearing dirty water, discharging domestic wastewater, and for emptying collection traps containing partical up to a maximum of Φ10mm.Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP68
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50HZ, 60Hz if requestOperating conditions
● 8m maximum immersion depth
● Liquid temperature upto 35°C
● Maximum ambient temperature 40°CComponent Construction
● Pump body: Cast iron
● Suction filter: AISI304 SS
● Impeller: Cast iron
● Motor shaft: AISI304SS
● Mechanical seal: SIC-SIC/Ceramic-Graphite
● Cable: 6m power cable with plugKey words:- vcm
- the
- and
- motor
- pump
- to
- for
- if
- in
- are
-
(50Hz n=2850 rpm/min)
Model
Inlet/ Outlet
Power
FlowQ(m3/h) 0 6 12 18 24 30 36 42 Inch kW HP (L/min) 0 100 200 300 400 500 600 700
V800-A2" 0.8 1.1 H(m)
10 8.5 6.5 4
V1100-A2" 1.1 1.5 11.5 10.5 9 7.5 6
V1600-A3" 1.5 2 15 14 12.5 10.3 8 6 4
V2200-A3" 2.2 3 17.5 16.3 15 13.5 11.6 9.3 7 4.5
V1500-B2" 1.5 2 15.5 15 12.5 10 8.5 6.3
V2200-B2" 2.2 3 18 16 15 13 12 8.2
V2200-B2½"/3" 2.2 3 18 16 15 13 12 10 7 3 -
n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 2" 20 290x230x570 2" 22 300x230x590 3" 32 370x270x660 3" 36 370x270x690 2" 25 300x200x495 2" 28 300x200x520 2½"/3" 28 300x200x520 -
