WQD-B

Category：

Product Center

Submersible pump

Sewage pump

SUBMERSIBLE SEWAGE PUMPS

Enquiry
Back to list
  • Product description
  • Model parameter table

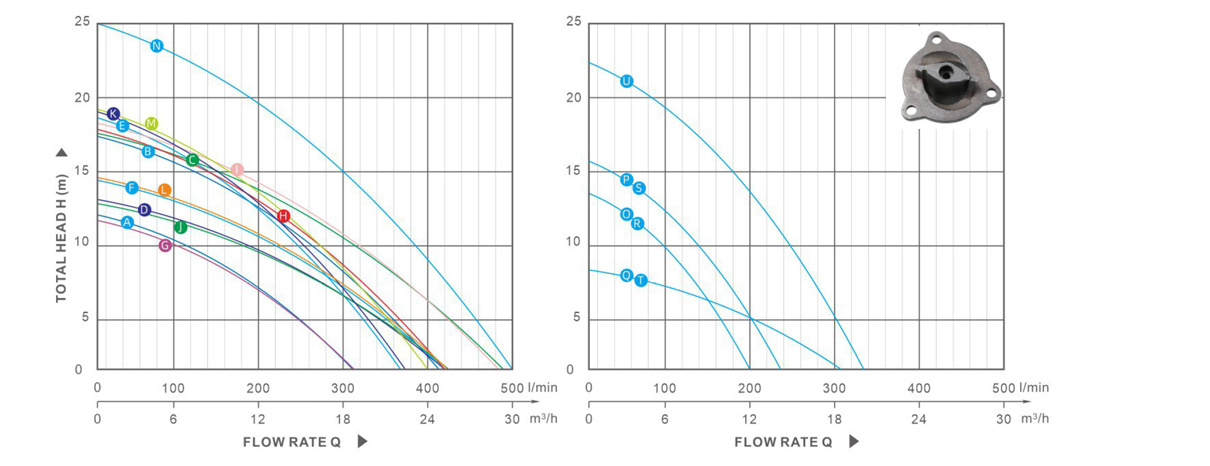

  • Performance curve
  • Package
  • Parts

  •



    Applications



    ● Suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
    ● As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as clearing dirty water, discharging domestic waste water, and for emptying collection traps containing partical up to a maximum of     Φ10mm.




    Motor



    ● Two-pole induction motor(n=2850 r.p.m)
    ● Insulation Class B
    ● Protection IP68
    ● Continuous service S1
    ● Thermal protector for single phase
    ● Single-phase 220V/50Hz, 60Hz if request
    ● Three-phase 380V/50Hz, 60Hz if request





    Operating conditions



    ● 5m maximum immersion depth
    ● Liquid temperature up to 35°C
    ● Maximum ambient temperature 40°C



    Component Construction



    ● Pump body:      Cast iron
    ● Suction filter:       AISI304 SS
    ● Impeller:       Cast iron
    ● Motor shaft:        AISI304 SS
    ● Mechanical seal:        SIC-SIC/Ceramic-Graphite
    ● Cable:        6m power cable with plug



    Key words:
    • vcm
    • the
    • and
    • motor
    • pump
    • to
    • for
    • if
    • in
    • are

  • (50Hz n=2850 rpm/min)





    Model

    Inlet/ Outlet

    Power

    Rate Current

    Max. FLOW

    Max.Head



    N.W

    LxWxH
      Inch kW HP (A) (m3/h) (m)
       WQD10-8-0.55 2" 0.55 0.75 4.1 19 12.3 20.5 255x175x379
       WQD5-17-0.75 1.5" 0.75 1 5.2 25 17.2 22 237x175x392
       WQD6-16-0.75 1.5" 0.75 1 5.2 29 17.7 22 237x175x392
       WQD10-11-0.75 2" 0.75 1 5.2 25.5 13.9 22 255x175x401
       WQD8-16-1.1 2" 1.1 1.5 7.3 22.9 18.3 24 255x175x424
       WQD15-10-1.1 2" 1.1 1.5 7.3 25 14.8 24.5 265x175x421
       WQ10-8-0.55 2" 0.55 0.75 4.1 19 12.3 20 255x175x379
       WQ5-17-0.75 1.5" 0.75 1 2 25 17.2 21 237x175x392
       WQ6-16-0.75 1.5" 0.75 1 2 29 17.7 21 237x175x392
       WQ10-11-0.75 2" 0.75 1 2 25.8 13.9 21 255x175x401
       WQ8-16-1.1 2" 1.1 1.5 2.7 22.9 18.3 22.5 255x175x424
       WQ15-10-1.1 2" 1.1 1.5 2.7 25 14.8 23 265x175x421
       WQ15-15-1.5 2" 1.5 2 3.6 24 19 26 255x175x454
       WQ8-20-1.5 1.5" 1.5 2 3.6 30 25 25.5 255x175x454
       WQD7-8-0.75QG 2" 0.75 1 5.2 12 13 21 253x180x445
       WQD7-12-1.1QG 2" 1.1 1.5 7.3 14 15.5 24 253x180x445
       WQD7-16-1.5QG 2" 1.5 2 9.5 18.4 7.3 27 253x180x445
       WQ7-8-0.75QG 2" 0.75 1 2 12 13 21 253x180x445
       WQ7-12-1.1 QG 2" 1.1 1.5 2.7 14 15.5 22 253x180x445
       WQ7-16-1.5QG 2" 1.5 2 3.6 18.4 7.3 25 253x180x445
       WQ9-18-2.2QG 2" 2.2 3 5.1 20 22 33 253x195x480

  • n=2900 rpm/ min



  •

  •
