JSW/JSP
CLEAN WATER JET PUMP
- Product description
- Model parameter table

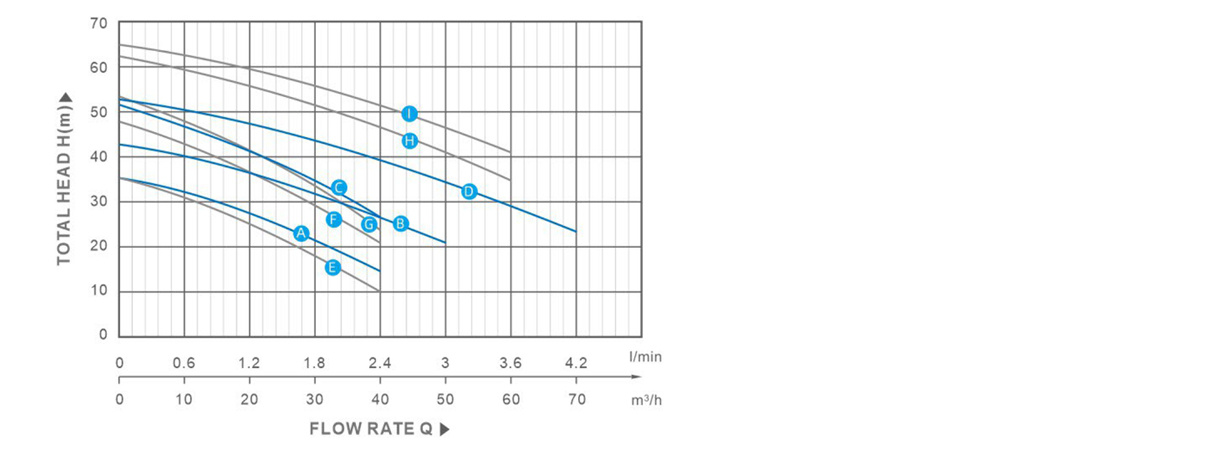

- Performance curve
- Package
- Parts
-
Applications
● Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
● The self-priming jet pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if requestOperating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 9m
Key words:- vcm
- the
- and
- motor
- pump
- to
- for
- if
- in
- are
-
(50Hz n=2850 rpm/min)
Model
Inlet/ Outlet
Power
FlowQ(m3/h) 0 0.6 1.2 1.8 2.4 3 3.6 4.2 Inch kW HP (L/min) 0 10 20 30 40 50 60 70
JSW-6M1"x1" 0.37 0.5 H(m)
35 28 22 18 15
JSW-10M1"x1" 0.75 1 43 38 31.5 27 23.5 21
JSW-10H1"x1" 0.75 1 51 42 35 30 27
JSW-15M1"x1" 1.1 1.5 52 48 42.5 38 34 30 27 23.5
JSP-601"x1" 0.37 0.5 35 29 20 13 10
JSP-801"x1" 0.55 0.75 48 42 33 25.5 21
JSP-1001"x1" 0.75 1 53 46 38 30 24.5
JSP-15011/4"x1" 1.1 1.5 61 54 49 44.5 41 38 35.5
JSP-20011/4"x1" 1.5 2 65 59 53.5 49.5 46 43 41 -
n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 1"x1" 8.5 380x180x205 1"x1" 14 445x210x235 1"x1" 14 445x210x235 1"x1" 18 460x210x235 1"x1" 13 460x210x230 1"x1" 14 460x210x230 1"x1" 15 460x210x230 11/4"x1" 25 520x235x270 11/4"x1" 26 520x235x270 -
Materials Table

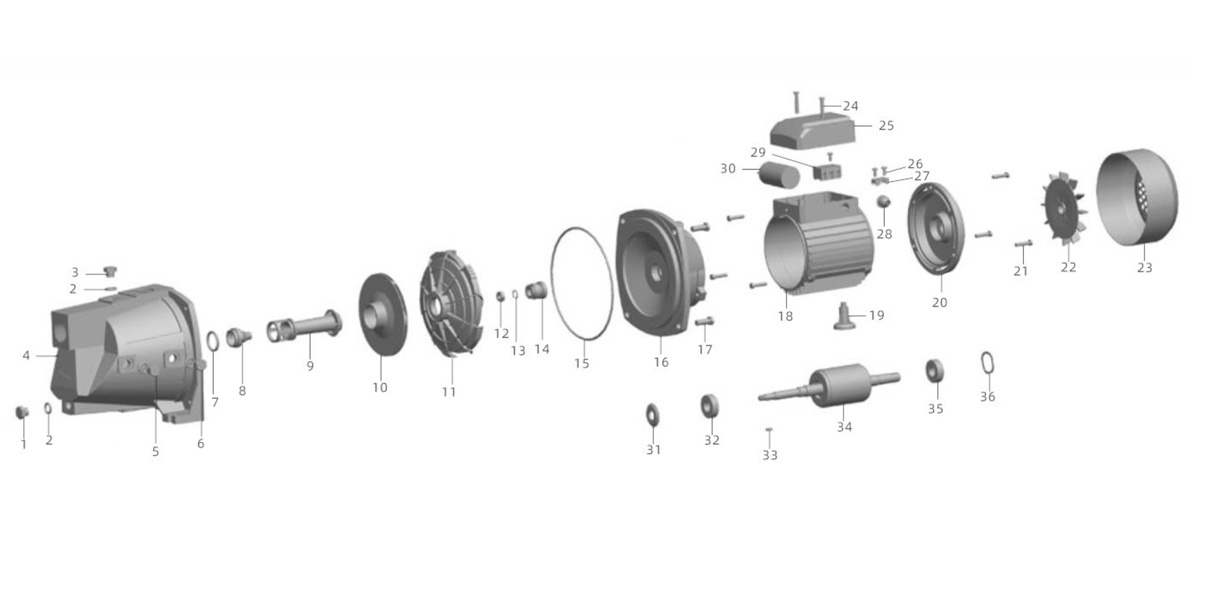

NO. Part Material 1 56Discharge plug Brass 2 "O"ring Rubber 3 Charge plug Brass 4 Pump casing lron 5 Gauge plug Brass 6 Switch plug Brass 7 "O"ring Rubber 8 Nozzle PPO 9 Venturi pipe PPO 10 Impeller Brass 11 Diffuser PPO 12 Nut STEEL 13 Spring gasket STEEL 14 Mechanicalseal Ceramic graphite 15 "O"ring Rubber 16 Pump support lron 17 Bolt STEEL 18 Casing with wound stator Cast aluminum 19 Stand ABS 20 Driving cap Iron 21 Bolt STEEL 22 Fan POM 23 Fan cover STEEL 24 Bolt STEEL 25 Terminal cover ABS 26 Screw STEEL 27 Cable presser ABS 28 Fairlead Rubber 29 Terminal board Assembly 30 Capacitor Assembly 31 Drops quard Rubber 32 Bearing Assembly 33 Key STEEL 34 Rotor Assembly 35 Bearing Assembly 36 Split ring STEEL
