JET
CLEAN WATER JET PUMP
- Product description
- Model parameter table

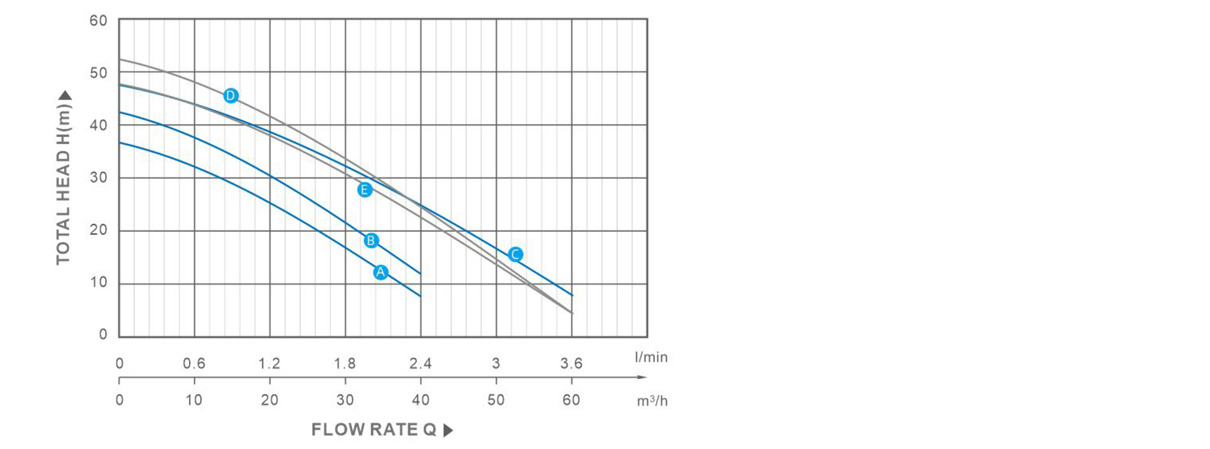

- Performance curve
- Package

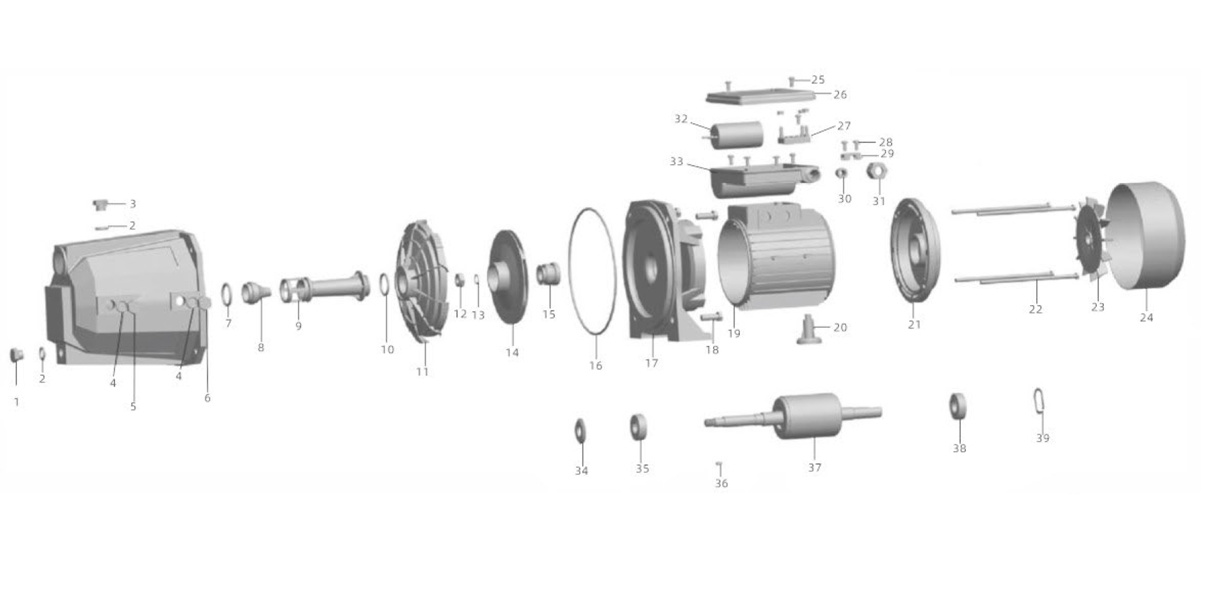

- Parts
-
Applications
● Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
● The self-priming jet pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if requestOperating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 9m
Component Construction
● Pump body: Cast iron
● Pump support: Cast iron
● Motor housing: Aluminum
● Impeller: Brass
● Diffuser: Noryl
● Motor shaft: Carbon steel, AISI304 SS if request
● Mechanical seal: SIC/GraphiteKey words:- vcm
- the
- and
- motor
- pump
- to
- for
- if
- in
- are
-
(50Hz n=2850 rpm/min)
Model
Inlet/ Outlet
Power
FlowQ(m3/h) 0 0.6 1.2 1.8 2.4 3 3.6 Inch kW HP (L/min) 0 10 20 30 40 50 60
JET 60 JET 60-S1"x1" 0.40 0.5 H(m)
36 26 20 16 7 - -
JET 80 1"x1" 0.60 0.8 42 32 26 20 12 - -
JET 100 JET 100-D1"x1" 0.75 1.0 47 38 31.5 28.5 24 17 9
JET 100M 1"x1" 0.75 1.0 52 49 44 37 20 10 5
JET 100P 1"x1" 0.75 1.0 47 45 42 32 20 10 5 -
n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 1"x1" 12.5 450x215x235 1"x1" 13.5 450x215x235 1"x1" 14.5 450x215x235 -
Materials Table
NO. Part Material 1 Discharge plug Brass 2 "O"ring Rubber 3 Charge plug Rubber 4 "O"ring STEEL 5 Gauge plug Brass 6 Switch plug Brass 7 "O"ring Rubber 8 Nozzle PPO 9 Venturi pipe PPO 10 "O"ring Rubber 11 Diffuser PPO 12 Nut STEEL 13 Sping gasket STEEL 14 Impeller Brass/PPO 15 Mechanical seal Ceramic graphite 16 "O"ring Rubber 17 Pump support Iron 18 Bolt STEEL 19 Casing with wound stator Cast aluminum 20 Stand ABS 21 Driving cap Iron 22 Tie-rod STEEL 23 Fan POM 24 Fan cover STEEL 25 Screw STEEL 26 Terminal cover ABS 27 Impeller Assembly 28 Mechanical seal STEEL 29 "O"ring ABS 30 Pump support ABS 31 Bolt ABS 32 Casing with wound stator Assembly 33 Stand ABS 34 Driving cap Rubber 35 Tie-rod Assembly 36 Fan STEEL 37 Fan cover Assembly 38 Screw Assembly 39 Terminal cover STEEL
