VMF
CLEAN WATER CENTRIFUGE PUMP
- Product description
- Model parameter table

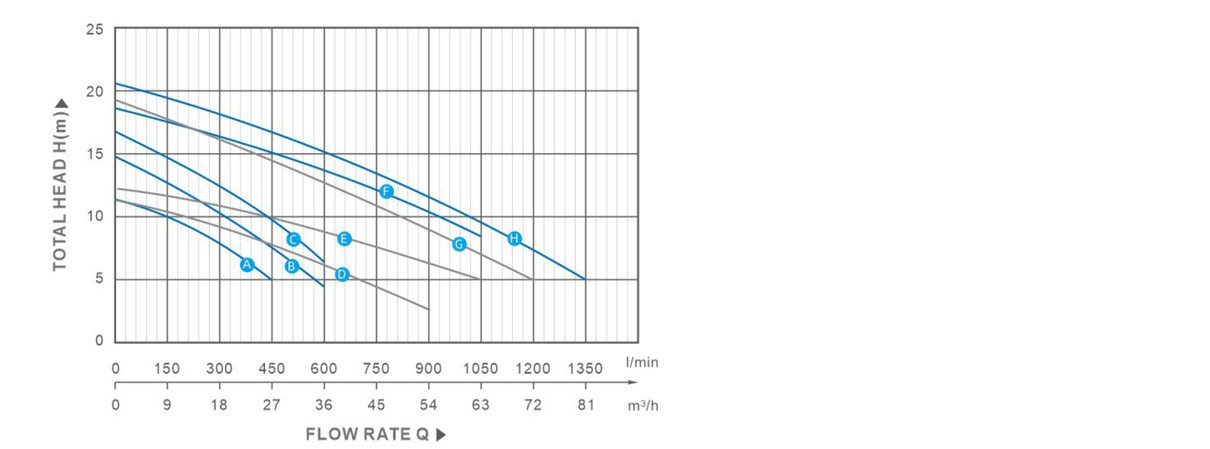

- Performance curve
- Package
- Parts
-
Applications
● Suitable for use in civil and agricultural applications.
● The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if requestOperating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 8m
Key words:- vcm
- the
- and
- motor
- pump
- to
- for
- if
- in
- are
-
(50Hz n=2850 rpm/min)
Model
Inlet/ Outlet
Power
FlowQ(m3/h) 0 9 18 27 36 45 54 63 72 81 Single phase Inch kW HP (L/min) 0 150 300 450 600 750 900 1050 1200 1350
VMF-128A2"x2" 0.75 1 H(m)
12 10.5 8.5 5
VMF-129B2"x2" 1.1 1.5 15 14 12 8.5 4
VMF-129A2"x2" 1.5 2 17 15.5 14 11 7
VMF-130C3"x3" 1.1 1.5 12 11.5 10.5 9 6.5 4 2
VMF-130B3"x3" 1.5 2 13.5 12.5 11.5 10 7.5 5 3 5
VMF-130A3"x3" 2.2 3 18 17 16 14.5 13 11 8 8
VMF-131B3"x3" 3 4 19 18 17 16 15 13 10.5 11 5
VMF-131A3"x3" 4 5.5 21 20.5 19.5 18 17 15.5 13 10 8 5 -
n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 2"x2" 18.5 370x225x295 2"x2" 22 425x230x295 2"x2" 23.5 425x230x295 3"x3" 28.5 465x310x345 3"x3" 30 465x310x345 3"x3" 35 520x300x350 3"x3" 38 560x310x350 3"x3" 40 560x310x350 -

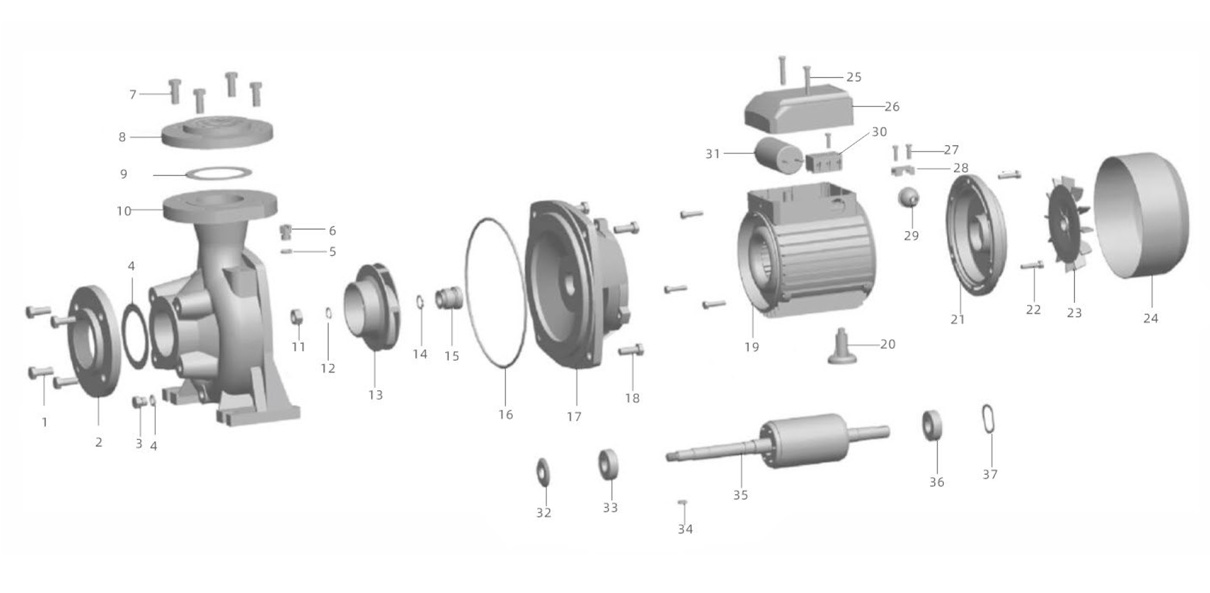

Materials Table
NO. Part Material 1 Bolt STEEL 2 Suction flange lron 3 Discharge plug Brass 4 Suction gasket Rubber 5 "O"ring Rubber 6 Charge plug Brass 7 Bolt STEEL 8 Delivery flange lron 9 Delivery gasket Rubber 10 Pump casing lron 11 Nut STEEL 12 Spring gasket STEEL 13 Impeller Brass/PPO 14 Snap ring STEEL 15 Mechanicalseal Ceramic graphite 16 "O"ring Rubber 17 Pump support lron 18 Bolt STEEL 19 Casing withwound stator Cast aluminum 20 Stand ABS 21 Driving cap lron 22 Bolt STEEL 23 Fan POM 24 Fan cover STEEL 25 Bolt STEEL 26 Terminal cover ABS 27 Screw STEEL 28 Cable presser ABS 29 Fairlead Rubber 30 Terminal board Assembly 31 Capacitor Assembly 32 Drops guard Rubber 33 Bearing Assembly 34 Key STEEL 35 Rotor Assembly 36 Bearing Assembly 37 Split ring STEEL
