8SP(304)
8" 10"Stainless Steel Deep Well Pumps
● The motor is loose and can be repaired.
● Stainless steel guide vane and impeller have high strength and corrosion resistance.
● Imported steel, continuous shaft.
● The drive coupling resists wear.
● The ultra-high water inlet section has a lot of water inflow.
● Ultra-large flow, ultra-high lift.
● Cable waterproof design, to prevent water from entering the motor.
● Environmentally friendly food grade mechanical oil, no pollution.
● The motor is automatically protected and does not burn the machine.
● Ultra-low voltage 100V start.
● High efficiency and more power saving.
● The diversion part is designed to prevent sand, and no sand is stuck.
- Product description
- Model parameter table

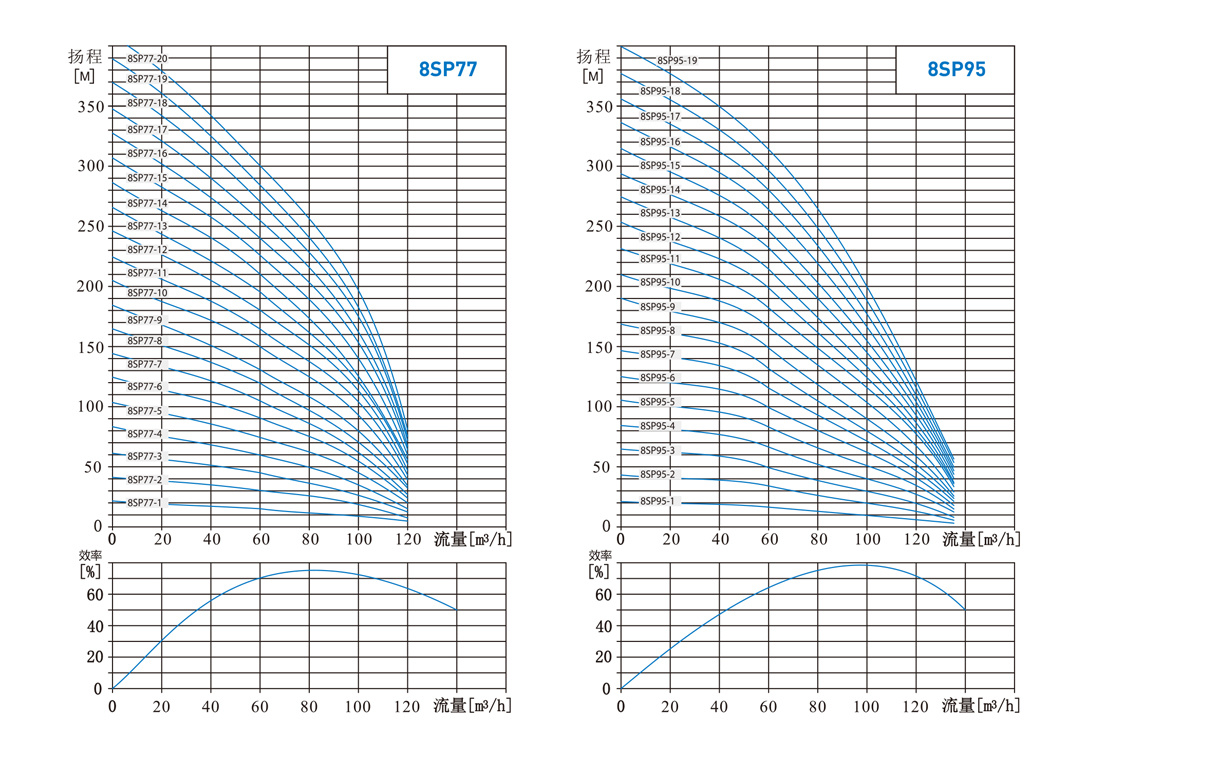

- Performance curve
- Package
- Parts
-
Mode Implication
Applications
● Water supply
● Pressure boosting
● Sprinkler irrigation
● Fire-fightingOperating conditions
● Max.pump overall diameter(cable guard included): 175mm
● Max.immersion depth: with oil flled motor-30m
with water flled motor- 150m
● Max.permissible quantity of sand:150g/m3
● Max.temperature of water in contact with motor:35℃Construction characterstic
● Abrasion-resistant construction.The front wear plate combined with the floating impellers, ensures
optimum resistance to abrasion.
● The Discharge and Intake are made of precision-cast stainless steel, ensuring resistance to corrosion,
durability and a sturdy coupling to the motor.
● The hexagonal shaft guarantees an effective impeller driving.
● Stainless steel coupling press ft to pump shaft,couples to all standard NEMA motors.
● A stainless steel check valve is ftted in the discharge to prevent any back flow of water and aleviate any
water harming to the pump,thus safeguarding impellers and diffusers.
Motor
● Standard NEMA motor
● Two choices: oil flled rewindable motor
water flled encapsulated motorWarranty: 1 Year
● (according to our general sales conditions).
Key words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
Type Power Flow (n = 2850r/min) l/min 0 200 250 400 500 600 750 800 1000 1200 1250 1400 1500 1600 1750 2000 2250 kW HP m3/h 0 12 15 24 30 36 45 48 60 72 75 84 90 96 105 120 135 8SP77-1* 5.5 7.5 Head
(m)
21 20 19 17.5 16 15 14 12 10.5 4 8SP77-2* 7.5 10 41 40 38 35 32 30 28 25 21 8 8SP77-3* 11 15 61 60 57 52.5 48 45 42 37 31.5 12 8SP77-4* 15 20 82 80 76 70 64 60 56 49 42 16 8SP77-5* 18.5 25 102 100 95 87.5 80 75 70 61.5 52.5 20 8SP77-6* 22 30 123 120 114 105 96 90 84 74 63 24 8SP77-7* 26 35 143 140 133 122.5 112 105 98 86 73.5 28 8SP77-8 30 40 164 160 152 140 128 120 112 98 84 32 8SP77-9 30 40 184 175 164 151 141 131 121 106 95 33 8SP77-10 37 50 205 198 188 174 160 149 139 123 105 40 8SP77-11 45 60 225 220 209 192.5 176 165 154 135 115.5 44 8SP77-12 45 60 246 240 228 210 182 180 168 148 126 48 8SP77-13 55 75 266 260 247 227.5 198 195 182 160 136.5 52 8SP77-14 55 75 287 280 266 245 224 210 196 172 147 56 8SP77-15 55 75 307 300 285 262.5 240 225 210 185 158.5 60 8SP77-16 63 85 328 320 304 280 256 240 224 197 169 64 8SP77-17 63 85 348 340 323 297.5 272 255 238 209 179.5 68 8SP77-18 75 100 369 360 342 315 288 270 252 221 190 72 8SP77-19 75 100 389 380 361 332.5 304 285 266 234 200.5 76 8SP77-20 75 100 410 400 380 350 320 300 280 246 211 80 8SP95-1* 5.5 7.5 Head
(m)
21 20 19 18 16 14 12.5 10 6 3 8SP95-2* 9.2 12.5 42 41 39 36 33 28 25 20 13 6 8SP95-3* 13 17.5 63 61 58 54 49 42 37.5 29 19 9 8SP95-4* 18.5 25 84 82 78 72 66 56 50 39 26 12 8SP95-5* 22 30 105 102 97 90 82 70 62.5 49 32 15 8SP95-6* 26 35 126 122 116 108 99 84 75 59 38 18 8SP95-7 30 40 147 143 136 126 115 98 87.5 68 45 21 8SP95-8 37 50 168 163 155 142 132 114 100 78 51 23 8SP95-9 37 50 189 183 174 160 149 121 112.5 88 57 26 8SP95-10 45 60 210 204 194 178 165 139 125 98 64 29 8SP95-11 45 60 231 224 213 196 181 154 137.5 107 70 32 8SP95-12 55 75 252 245 232 214 198 168 150 117 77 35 8SP95-13 55 75 273 265 251 232 214 182 162.5 127 83 38 8SP95-14 63 85 294 285 270 250 231 196 175 137 89 41 8SP95-15 63 85 315 306 289 268 247 210 187.5 146 96 44 8SP95-16 75 100 336 326 308 286 264 224 200 156 102 47 8SP95-17 75 100 357 346 327 304 280 238 212.5 166 108 50 8SP95-18 93 125 378 367 346 322 297 252 225 176 115 53 8SP95-19 93 125 398 387 365 340 313 266 237.5 185 121 56 8SP95-20 93 125 420 408 384 358 330 280 250 195 128 59 -
-

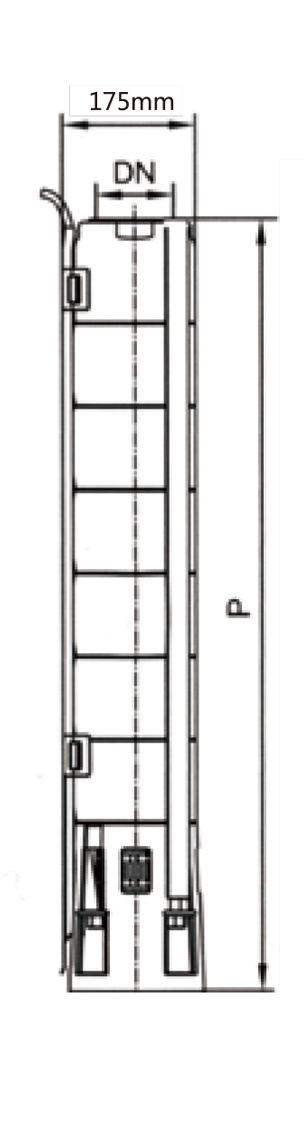

Type DN Dimension P 8SP77-1* 5"
445 8SP77-2* 570 8SP77-3* 695 8SP77-4* 820 8SP77-5* 945 8SP77-6* 1070 8SP77-7* 1195 8SP77-8 1320 8SP77-9 1445 8SP77-10 1570 8SP77-11 1695 8SP77-12 1820 8SP77-13 1945 8SP77-14 2070 8SP77-15 2195 8SP77-16 2320 8SP77-17 2445 8SP77-18 2570 8SP77-19 2695 8SP77-20 2820
Type DN Dimension P 8SP95-1* 5" 445 8SP95-2* 570 8SP95-3* 695 8SP95-4* 820 8SP95-5* 945 8SP95-6* 1070 8SP95-7 1195 8SP95-8 1320 8SP95-9 1445 8SP95-10 1570 8SP95-11 1695 8SP95-12 1820 8SP95-13 1945 8SP95-14 2070 8SP95-15 2195 8SP95-16 2320 8SP95-17 2445 8SP95-18 2570 8SP95-19 2695 8SP95-20 2820 -
Pure copper outlet, pure copper connection
Stainless Steel Coupling, Stainless Steel Bushing
Machinery Seal
