6SP(304)
6" Stainless Steel Deep Well Pumps
● The motor is loose and can be repaired.
● Stainless steel guide vane and impeller have high strength and corrosion resistance.
● Imported steel, continuous shaft.
● The drive coupling resists wear.
● The ultra-high water inlet section has a lot of water inflow.
● Ultra-large flow, ultra-high lift.
● Cable waterproof design, to prevent water from entering the motor.
● Environmentally friendly food grade mechanical oil, no pollution.
● High efficiency and more power saving.
● The diversion part is designed to prevent sand, and no sand is stuck.
- Product description
- Model parameter table

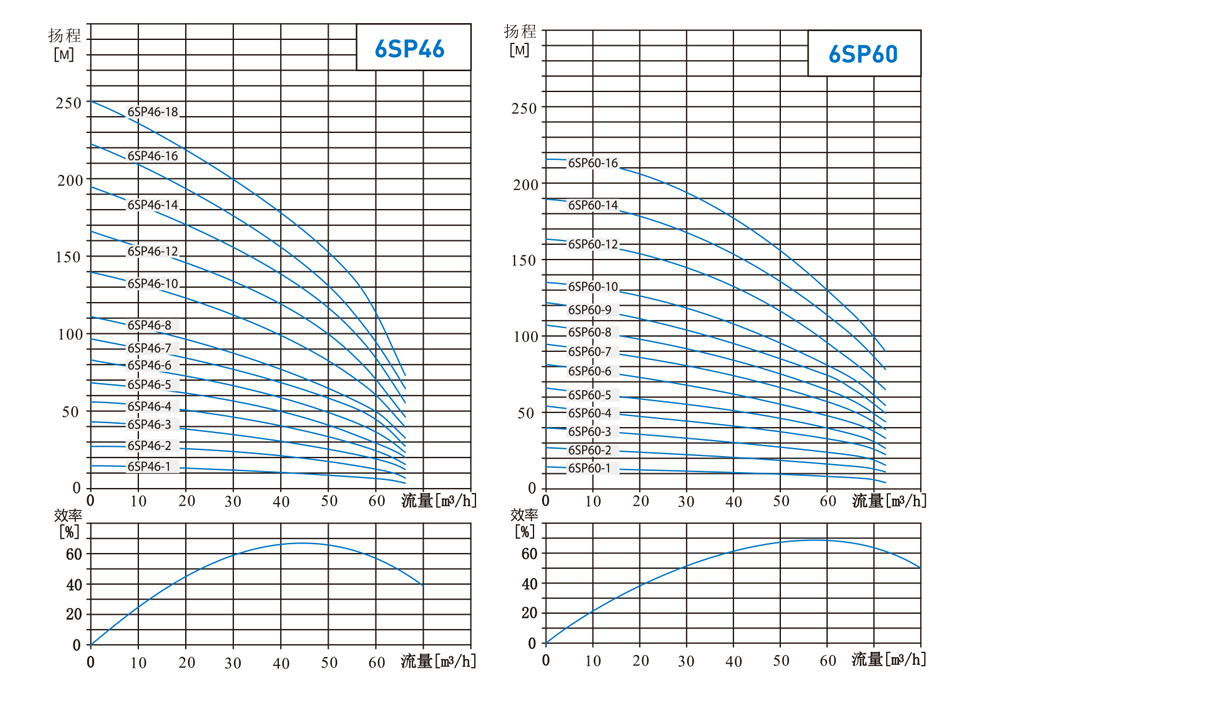

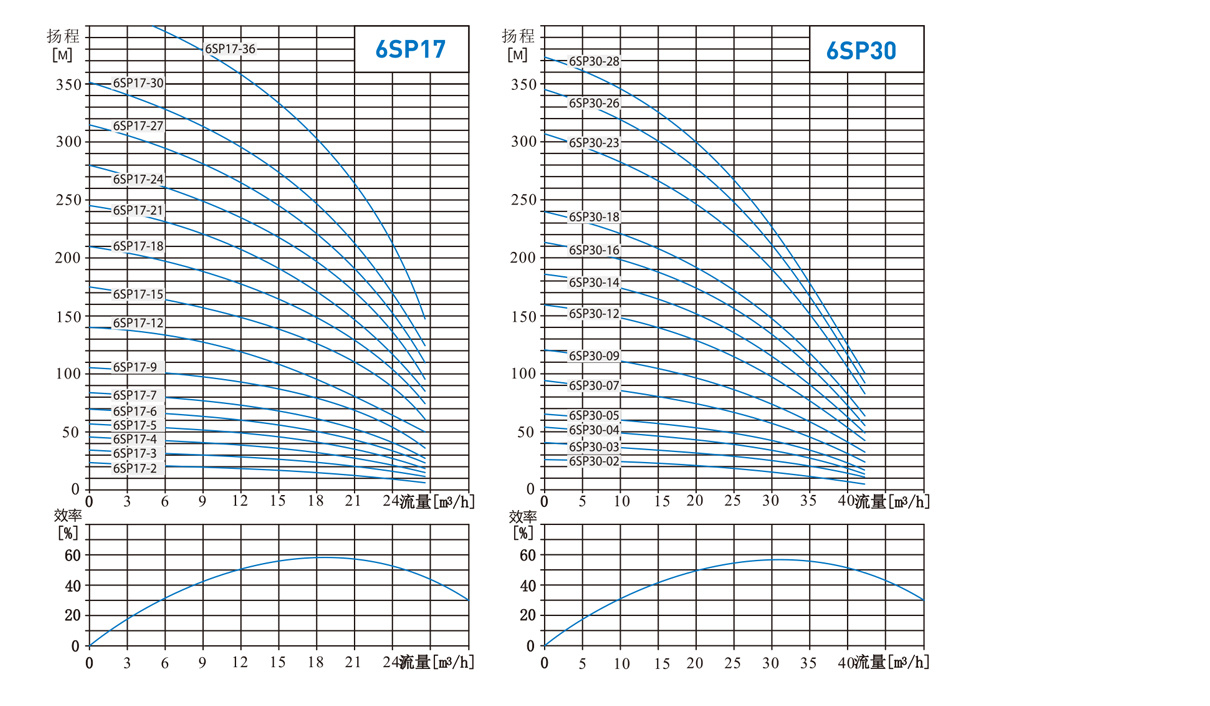

- Performance curve
- Package
- Parts
-

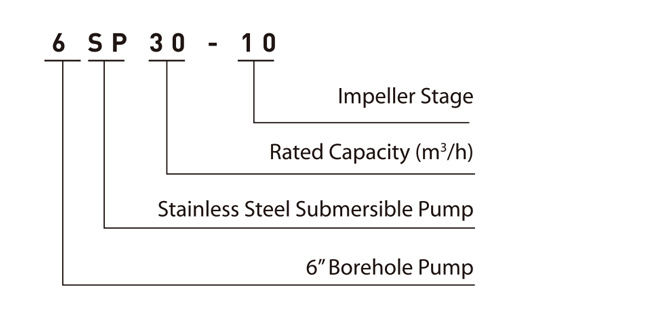

Mode Implication
Applications
● Water supply
● Pressure boosting
● Sprinkler irigation
● Fire-fightingOperating conditions
● Max.pump overall diameter(cable guard included): 145mm
● Max.immersion depth: with oil flled motor-30m
with water flled motor- 150m
● Max.permissible quantity of sand:150g/m3
● Max.temperature of water in contact with motor:35℃Construction characterstic
● Abrasion-resistant construction.The front wear plate combined with the floating impellers, ensures
optimum resistance to abrasion.
● The Discharge and Intake are made of precision-cast stainless steel, ensuring resistance to corrosion,
durability and a sturdy coupling to the motor.
● The hexagonal shaft guarantees an effective impeller driving.
● Stainless steel coupling press ft to pump shaft,couples to all standard NEMA motors.
● A stainless steel check valve is ftted in the discharge to prevent any back flow of water and aleviate any
water harming to the pump,thus safeguarding impellers and diffusers.
Motor
● Standard NEMA motor
● Two choices: oil flled rewindable motor
water flled encapsulated motorWarranty: 1 Year
● (according to our general sales conditions).
Key words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
Type Power Flow（n =2850r/min) l/min 0 250 283 300 333 350 400 450 467 500 600 667 700 800 900 1000 1100 1200 kW HP m3/h 0 15 17 18 20 21 24 27 28 30 36 40 42 48 54 60 66 72 6SP17-2 1.5 2 Head
(m)
23 19 18 17 16 15 12 8 6SP17-3 2.2 3 35 28 27 25 23 22 17 12 6SP17-4 2.2 3 47 37 35 34 31 29 23 16 6SP17-5 3 4 58 46 44 42 39 36 29 20 6SP17-6 4 5.5 70 56 53 51 47 44 35 25 6SP17-7 5.5 7.5 82 65 62 59 54 51 41 29 6SP17-9 7.5 10 105 83 80 76 70 66 52 37 6SP17-12 9.2 12.5 140 111 107 102 94 87 69 49 6SP17-15 11 15 175 139 133 127 117 109 87 61 6SP17-18 13 18 210 167 160 153 140 131 104 74 6SP17-21 15 20 245 195 187 178 164 153 121 86 6SP17-24 15 20 280 223 213 204 187 175 139 98 6SP17-27 18.5 25 315 251 240 229 210 197 156 110 6SP17-30 22 30 351 279 267 255 234 219 174 123 6SP17-36 26 35 421 335 320 306 280 262 209 147 6SP30-2 2.2 3 Head
(m)
27 22 20 17 16 12 8 7 6SP30-3 3 4 40 33 30 26 24 18 13 11 6SP30-4 4 5.5 53 44 40 35 32 24 17 14 6SP30-5 5.5 7.5 66 55 50 44 41 30 21 18 6SP30-7 7.5 10 93 77 69 62 57 42 30 25 6SP30-9 9.2 12.5 120 100 89 79 73 54 39 32 6SP30-12 11 15 160 133 119 105 98 72 52 43 6SP30-14 13 18 186 155 138 123 114 84 60 50 6SP30-16 15 20 212 177 158 141 130 96 69 57 6SP30-18 18.5 25 239 199 178 158 147 108 77 65 6SP30-23 22 30 306 255 228 202 187 138 99 83 6SP30-26 26 35 346 288 257 229 212 156 112 93 6SP30-28 30 40 372 311 288 246 228 168 120 101 6SP46-1 3 4 Head
(m)
14 12 11 10 9.5 8 7 4 6SP46-2 4 5.5 28 24 22 20 19 17 15 8 6SP46-3 5.5 7.5 42 36 33 31 28 26 22 12 6SP46-4 7.5 10 56 48 44 41 38 35 30 16 6SP46-5 9.2 12.5 69 60 55 51 47 44 37 20 6SP46-6 11 15 83 72 66 62 57 52 44 24 6SP46-7 13 18 97 84 77 72 66 61 52 28 6SP46-8 15 20 111 96 88 82 76 69 59 32 6SP46-10 18.5 20 139 120 110 103 95 87 74 40 6SP46-12 18.5 25 167 144 132 123 114 104 89 48 6SP46-14 22 30 194 168 154 144 133 122 103 56 6SP46-16 26 35 222 192 176 165 152 139 118 64 6SP46-18 30 40 250 216 198 185 171 156 133 72 6SP60-1 3 4 Head
(m)
14 12.5 11 10 9.5 9 8 5 6SP60-2 4 5.5 27 25 22 20 19 18 16 11 6SP60-3 5.5 7.5 40 38 33 30 28 27 24 17 6SP60-4 7.5 10 54 50 44 40 38 35 32 22 6SP60-5 9.2 12.5 67 63 55 50 47 44 40 28 6SP60-6 11 15 81 75 66 60 57 53 48 33 6SP60-7 13 18 94 88 77 70 66 62 58 39 6SP60-8 15 20 108 101 88 80 76 71 65 44 6SP60-9 18.5 20 121 113 99 90 85 80 73 50 6SP60-10 18.5 25 135 126 110 100 95 89 81 56 6SP60-12 22 30 162 151 132 120 114 106 97 67 6SP60-14 26 35 189 176 154 140 133 124 112 78 6SP60-16 30 40 216 201 176 160 152 142 130 90 -
-
Type DN Dimension P 6SP17-2 2.5"
394 6SP17-3 456 6SP17-4 518 6SP17-5 580 6SP17-6 642 6SP17-7 704 6SP17-9 828 6SP17-12 1014 6SP17-15 1200 6SP17-18 1386 6SP17-21 1572 6SP17-24 1758 6SP17-27 1944 6SP17-30 2130 6SP17-36 2502 6SP30-2 3" 462 6SP30-3 558 6SP30-4 654 6SP30-5 750 6SP30-7 942 6SP30-9 1134 6SP30-12 1422 6SP30-14 1614 6SP30-16 1806 6SP30-18 1998 6SP30-23 2478 6SP30-26 2766 6SP30-28 2958
Type DN Dimension P 6SP46-1 3" 383 6SP46-2 496 6SP46-3 609 6SP46-4 722 6SP46-5 835 6SP46-6 948 6SP46-7 1061 6SP46-8 1174 6SP46-10 1400 6SP46-12 1626 6SP46-14 1852 6SP46-16 2078 6SP46-18 4" 2304 6SP60-1 383 6SP60-2 496 6SP60-3 609 6SP60-4 722 6SP60-5 835 6SP60-6 943 6SP60-7 1061 6SP60-8 1174 6SP60-9 1287 6SP60-10 1400 6SP60-12 1626 6SP60-14 1852 6SP60-16 2078 -
Pure copper outlet, pure copper connection
Stainless Steel Coupling, Stainless Steel Bushing
Machinery Seal
