150QJ
6" Deep Well Pumps
● The motor is loose and can be repaired.
● The plastic guide vane impeller has high strength and wear resistance.
● Imported steel, continuous shaft.
● The drive coupling resists wear.
● The ultra-high water inlet section has a lot of water inflow.
● Ultra-large flow, ultra-high lift.
● Cable waterproof design, to prevent water from entering the motor.
● Environmentally friendly food grade mechanical oil, no pollution.
● High efficiency and more power saving.
● The diversion part is designed to prevent sand, and no sand is stuck.
- Product description
- Model parameter table

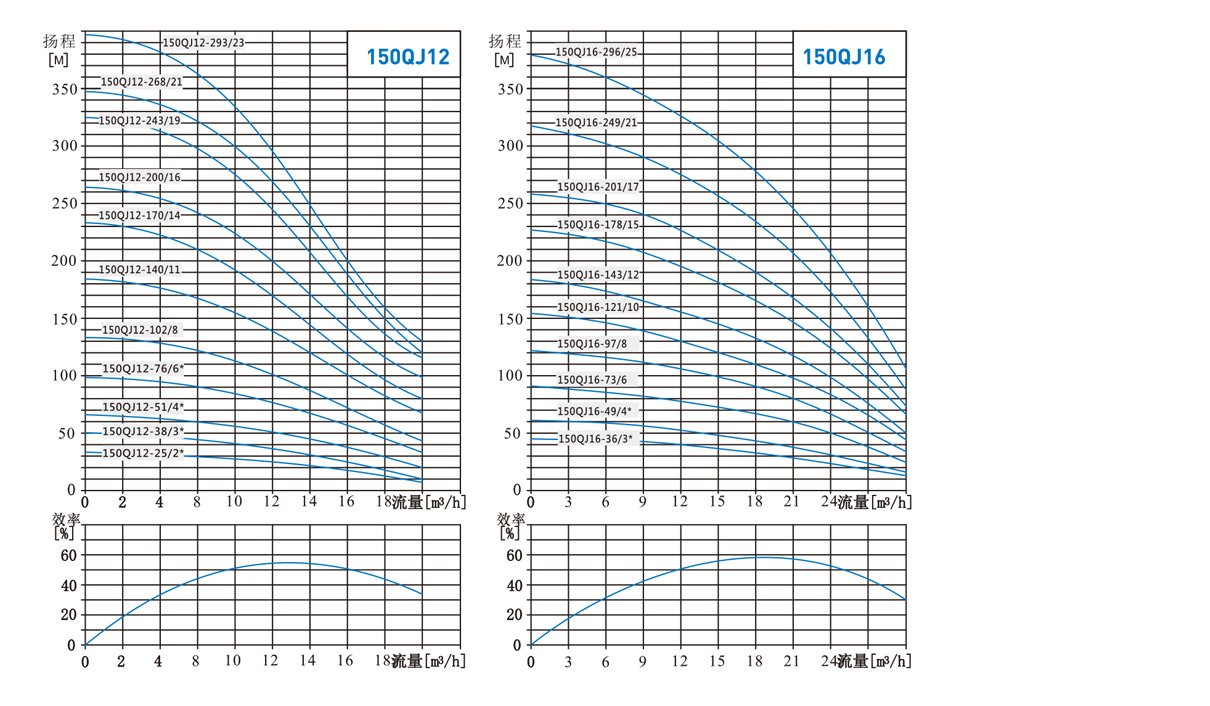

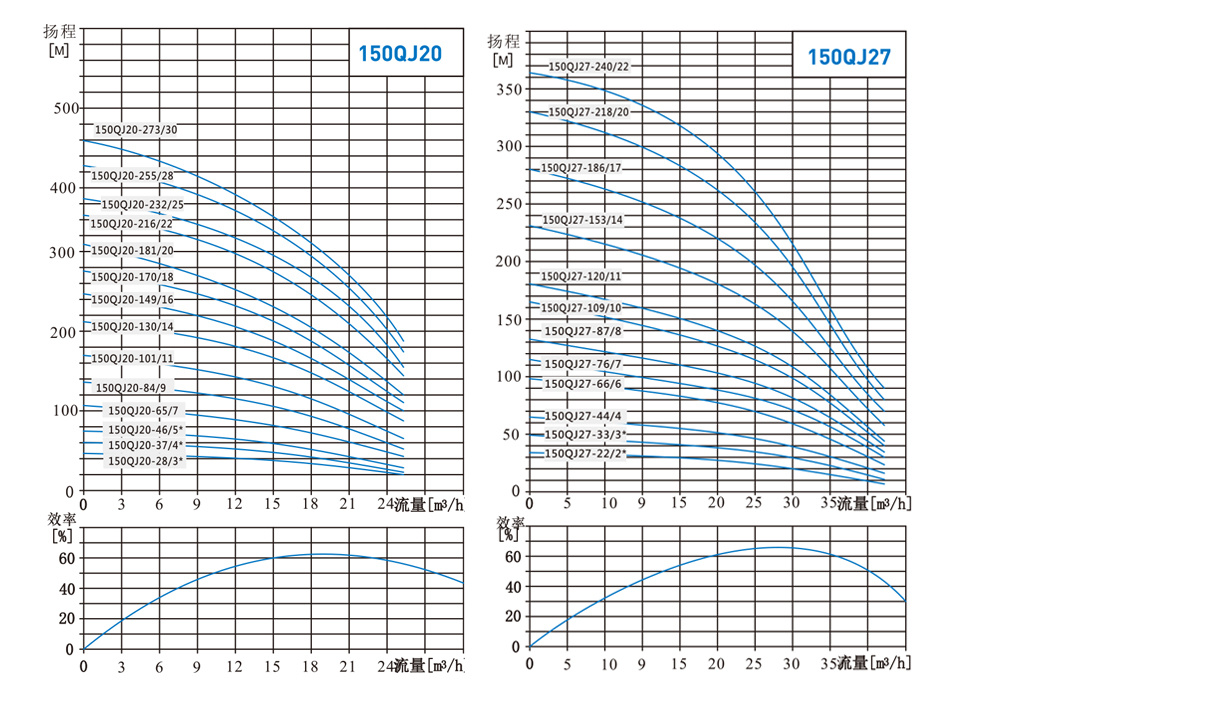

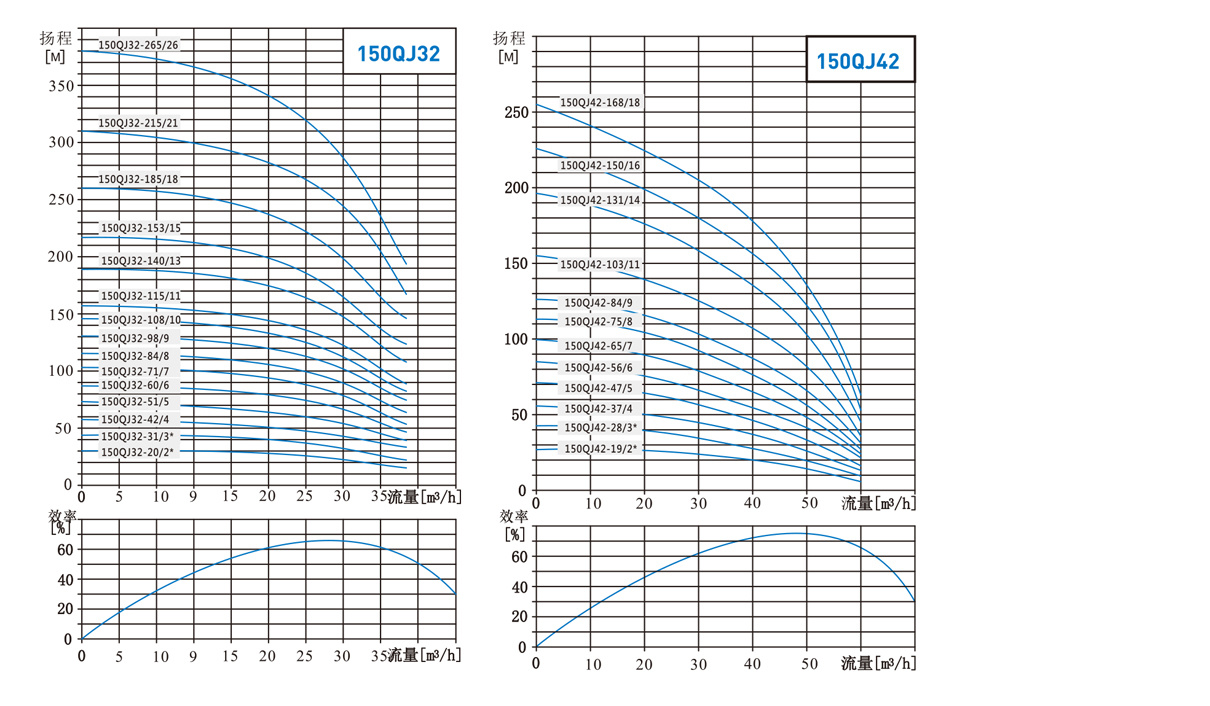

- Performance curve
- Package
- Parts
-
Domestic model
Applications
● For water supply from wells or reservoirs.
● For domestic use,for civil and industrial applications.
● For garden use and irrigation.Operating conditions
● Maximum fluid temperature up to+35 C
● Maximum sand content: 0.15%
● Maximum irnmersion: 50m.
● Maximum well diameter:6"Options on request
● Special mechanical seal
● Other voltages or frequency 60Hz
● Single phase motor with buit-in capacitor
Motor and Pump
● Rewindable motor or Full obturated screeri motor.
● Three-phase: 380V-415V/50Hz
● Single-phase: 220V-240V/50Hz
● Equip with start control box or digital auto-controlbox
● Pumps are designed by casing stressed
● NEMA dimension standards
● Curve tolerance according to ISO 9906Warranty: 1 Year
● (according to our general sales conditions).
Key words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
Domestic model Power Flow (n = 2850r/min) l/min 0 100 133 167 200 233 250 267 300 333 350 367 400 417 433 450 500 TYPE kW HP m3/h 0 6 8 10 12 14 15 16 18 20 21 22 24 25 26 27 30 150QJ12-25/2* 1.5 2 Head
(m)
33 31 30 27 25 21 16 9 150QJ12-38/3* 2.2 3 50 45 44 41 38 31 24 10 150QJ12-51/4* 3 4 66 61 59 56 51 43 36 20 150QJ12-76/6* 4 5.5 99 92 89 84 76 65 50 32 150QJ12-102/8 5.5 7.5 132 122 116 110 102 88 68 42 150QJ12-140/11 7.5 10 183 171 164 155 140 122 100 58 150QJ12-170/14 9.2 12.5 232 217 200 194 170 151 120 90 150QJ12-200/16 11 15 264 247 230 224 200 177 140 98 150QJ12-243/19 13 18.5 324 296 283 265 243 210 169 116 150QJ12-268/21 15 20 348 328 313 290 268 236 190 120 150QJ12-293/23 18.5 25 384 359 343 321 293 250 200 130 150QJ16-36/3* 3 4 Head
(m)
45 39 37 36 33 30 25 19 13 150QJ16-49/4* 4 5.5 61 52 49 49 45 39 33 26 17 150QJ16-73/6 5 7.5 91 78 73 73 67 59 50 39 25 150QJ16-97/8 7.5 10 121 104 98 97 89 79 66 52 34 150QJ16-121/10 9.2 12.5 152 130 122 121 111 99 83 64 42 150QJ16-143/12 11 15 182 156 146 143 134 118 100 77 51 150QJ16-178/15 13 18.5 227 196 183 178 167 148 125 97 63 150QJ16-201/17 15 20 258 222 207 201 189 168 141 110 72 150QJ16-249/21 18.5 25 318 274 256 249 234 207 174 135 89 150QJ16-296/25 22 30 379 326 305 296 279 247 208 161 106 Domestic model Power Flow (n = 2850r/min) l/min 0 100 133 167 200 233 250 267 300 333 350 367 400 417 433 450 500 533 550 583 600 633 700 800 1000 TYPE kW HP m3/h 0 6 8 10 12 14 15 16 18 20 21 22 24 25 26 27 30 32 33 35 36 38 42 48 60 150QJ20-28/3* 3 4 Head
(m)46 39 37 34 31 28 25 19 150QJ20-37/4* 4 5.5 61 52 49 45 42 37 32 25 150QJ20-46/5* 4 5.5 77 64 61 57 51 46 41 31 150QJ20-65/7 5.5 7.5 108 90 86 79 73 65 58 44 150QJ20-84^9 7.5 10 138 116 111 101 96 84 76 56 150QJ20-101/11 9.2 12.5 168 142 136 124 113 101 90 69 150QJ20-130/14 11 15 215 180 171 150 145 130 113 88 150QJ20-149/16 13 18.5 246 206 195 180 165 149 130 100 150QJ20-170/18 15 20 277 232 225 202 193 170 152 113 150QJ20-181/20 18.5 25 307 256 240 215 203 181 156 120 150QJ20-216/22 18.5 25 345 295 282 262 241 216 189 143 150QJ20-232/25 22 30 386 320 303 281 265 232 208 158 150QJ20-255/28 26 35 428 358 336 301 291 255 221 174 150QJ20-273/30 30 40 459 384 360 322 312 373 237 186 150QJ27-22/2* 3 4 Head
(m)33 25 24 22 20 17 15 8 150QJ27-33/3* 4 5.5 49 38 35 33 30 26 22 12 150QJ27-44/4 5.5 7.5 66 50 47 44 40 35 29 16 150QJ27-66/6 7.5 10 99 76 71 66 59 52 44 25 150QJ27-76/7 9.2 12.5 115 88 83 76 69 61 51 29 150QJ27-87/8 11 15 132 101 95 87 79 70 59 33 150QJ27-109/10 13 18.5 165 126 118 109 99 87 74 41 150QJ27-120/11 15 20 181 139 130 120 109 96 81 45 150QJ27-153/14 18.5 25 231 177 166 153 138 122 103 58 150QJ27-186/17 22 30 280 215 201 186 168 148 125 70 150QJ27-218/20 26 35 330 252 237 218 198 174 147 82 150QJ27-240/22 30 40 363 278 260 240 217 191 162 90 150QJ32-20/2* 3 4 Head
（m）
30 28 27 26 24 20 18 16 150QJ32-31/3* 4 5.5 44 42 41 40 36 31 27 21 150QJ32-42/4 5.5 7.5 59 56 55 53 48 42 39 33 150QJ32-51/5 7.5 10 72 71 69 65 59 51 45 40 150QJ32-60/6 7.5 10 88 86 84 78 71 60 54 48 150QJ32-71/7 9.2 12.5 102 99 97 92 84 71 64 53 150QJ32-84/8 11 15 116 115 112 105 95 84 71 63 150QJ32-98/9 13 18.5 130 129 126 120 109 98 85 75 150QJ32-108/10 15 20 147 144 141 131 120 108 95 82 150QJ32-115/11 18.5 25 158 157 153 144 132 115 102 89 150QJ32-140/13 18.5 25 190 185 181 175 158 140 123 109 150QJ32-153/15 22 30 218 215 210 200 183 153 138 123 150QJ32-185/18 26 35 260 257 251 240 220 185 170 148 150QJ32-215/21 30 40 310 302 294 280 258 215 193 168 150QJ32-265/26 37 50 380 368 355 340 316 265 235 195 150QJ42-19/2* 3 4 Head
（m）
28 25 24 23 21 19 16 7 150QJ42-28/3* 4 5.5 42 37 36 34 31 28 24 10 150QJ42-37/4 5.5 7.5 57 50 48 45 42 37 31 14 150QJ42-47/5 7.5 10 71 62 60 57 52 47 39 17 150QJ42-56/6 9.2 12.5 85 75 72 68 63 56 47 21 150QJ42-65/7 11 15 99 87 84 79 73 65 55 24 150QJ42-75/8 13 18.5 113 100 96 91 84 75 63 28 150QJ42-84/9 15 20 127 112 108 102 94 84 71 31 150QJ42-103/11 18.5 25 155 137 132 125 115 103 86 38 150QJ42-131/14 22 30 198 175 168 159 147 131 110 48 150QJ42-150/16 26 35 226 200 192 181 168 150 126 55 150QJ42-168/18 30 40 254 225 215 204 189 168 141 62 -
-

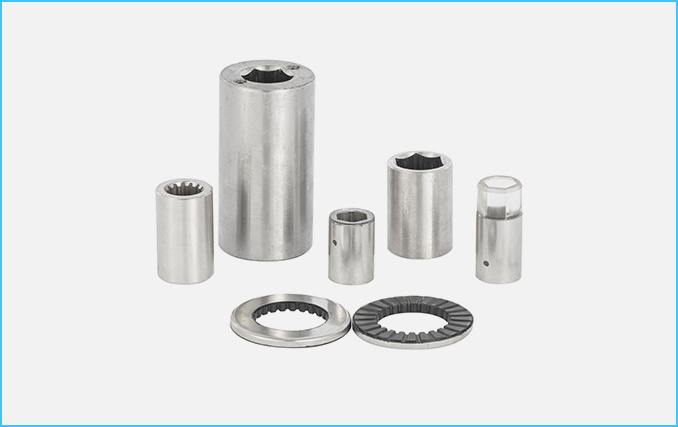

Stainless Steel Coupling, Stainless Steel Bushing
Machinery Seal

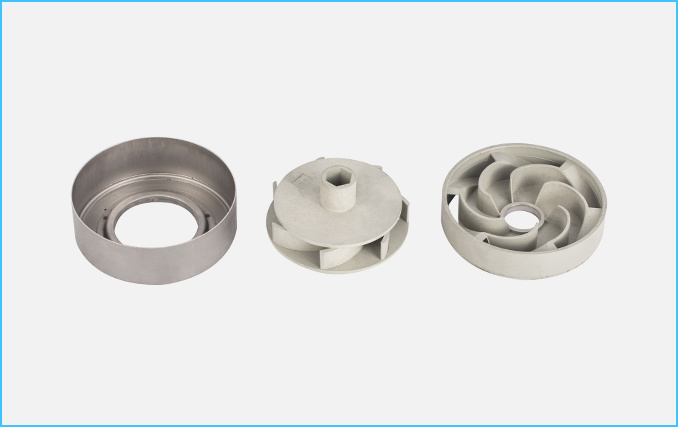

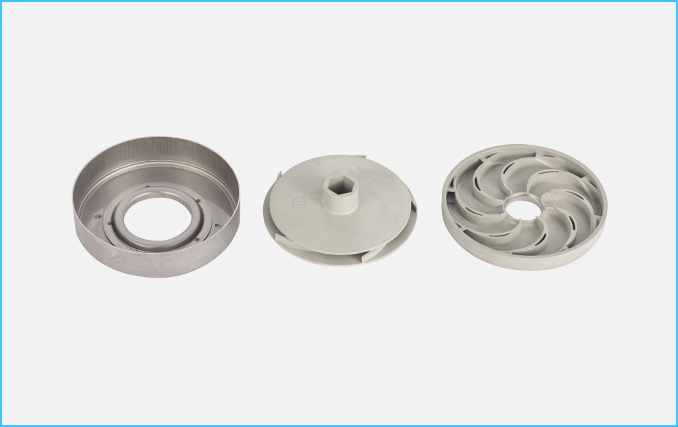

150QJ-12T Impeller Guide

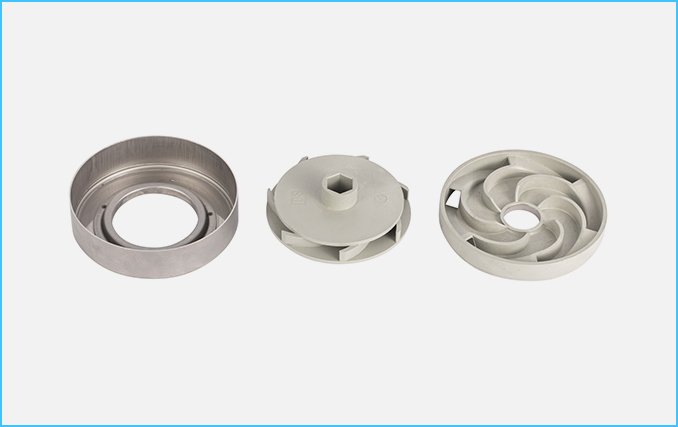

150QJ-20T Impeller Guide
150QJ-32T Impeller Guide

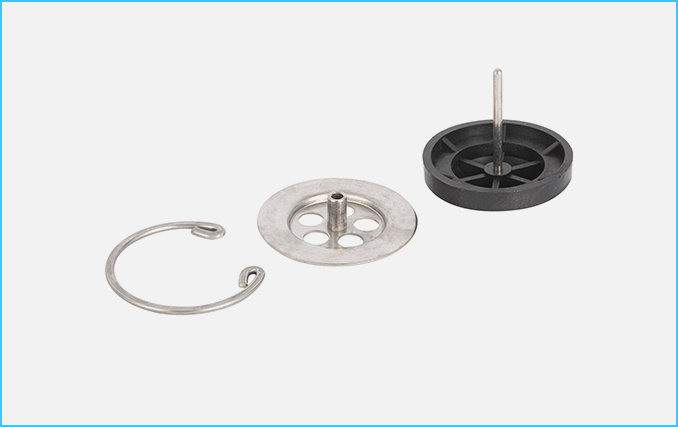

Return valve
Stainless steel accessories

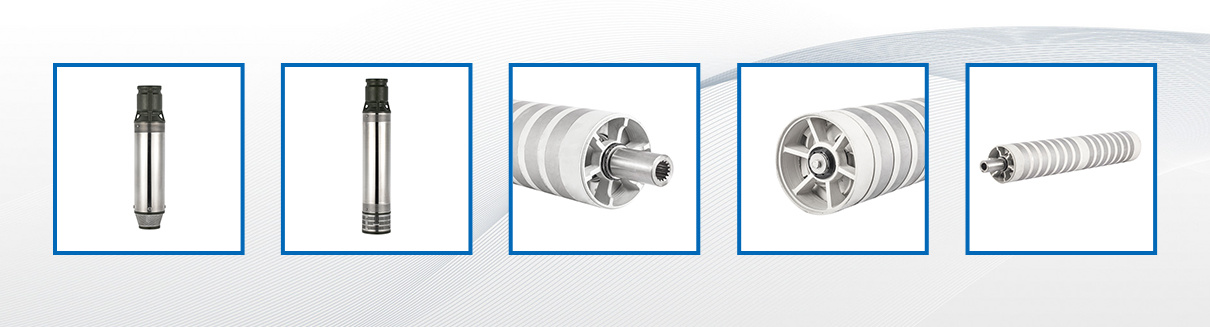

Related products
