3SK&4SK
4" Deep Well Pumps
● Vortex impeller - high pressure.
● Motor with protector
● Longer working life
● Motor housing with food grade mechanical oil
● Wear-resistance, anti-corrosion
● Safe and no pollotion
- Product description
- Model parameter table

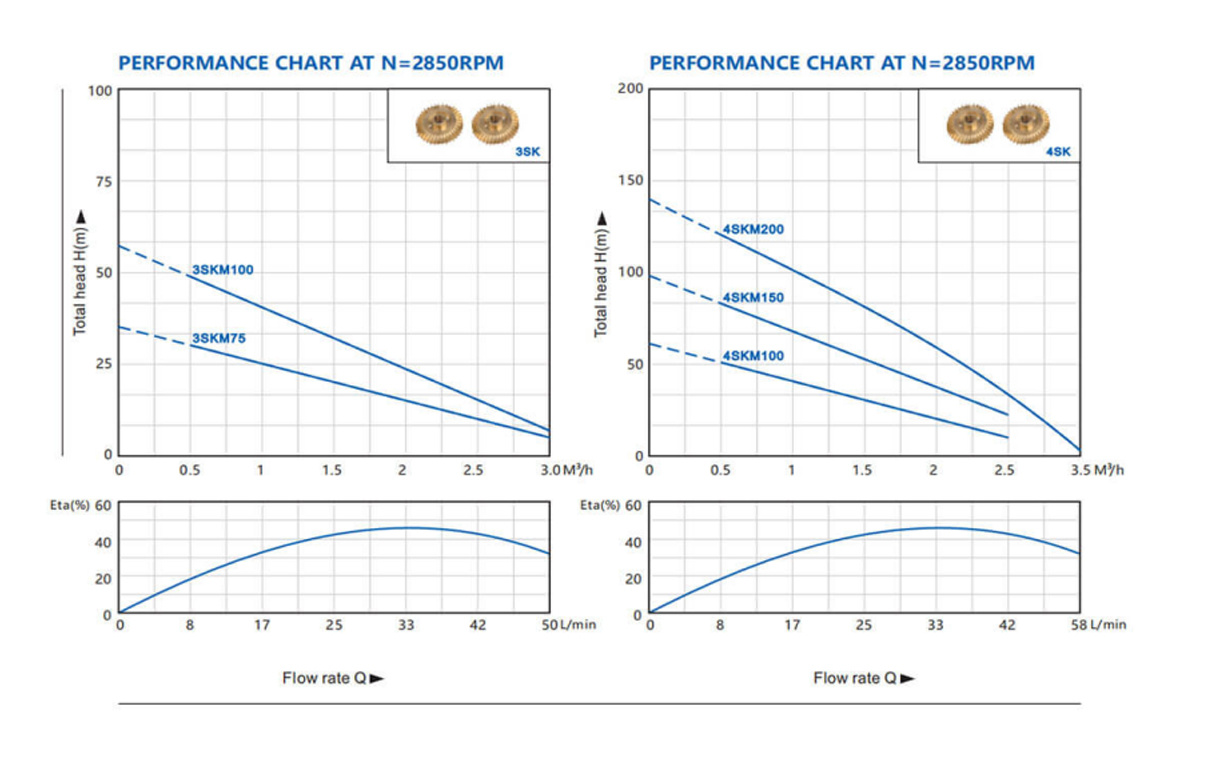

- Performance curve
- Package
- Parts
-
Applications
● For pumping clean water with sand content less than 150g/m³
● For well pumping, river pumping, farm irrigation, water supply, mining, draiaage in breeding industry.
Operating conditions
● Water temperature up to 35℃
● Ambient temperature permissible up to 40℃
● 3SK Minimum internal diameter of well: 3"(75mm)
● 4SK Minimum internal diameter of well: 4"(100mm)
● Maximum immersion depth: 80mMotor
● Rewindable motor
● Insulation Class B
● Protection IP68
● NEMA dimension standardsOptions on request
● Special mechanical seal
● Single phase motor with built-in capacitor
● Single phase motor with control box
● The length of cable: 2 Meter
● Outlet dimension : 1"
Key words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
3SK Model
50Hz
Motor Power Three Phase Single Phase Q Capacity m³/h 0 0.5 1 1.5 2 2.5 3 380V 220V l/min 0 8 17 25 33 42 50 HP kW A A Total head in meters 3SK75 0.75 0.55 2.1 4 Hm 35 29 25 20 15 9.5 6 3SK100 1 0.75 2.5 5.4 57 48 40 32 25 17 7 4SK Model
50Hz
Motor Power Three Phase Single Phase Q Capacity m³/h 0 0.5 1 1.5 2 2.5 3.5 380V 220V l/min 0 8 17 25 33 42 58 HP kW A A Total head in meters 4SK100 1 0.75 2.5 6.3 Hm 61 50 39 30 19 10 4SK150 1.5 1.1 3.4 8.6 99 83 68 54 38 22 4SK200 2 1.5 4.4 10 140 120 100 81 60 37 3 -
