100QJ
4" Deep Well Pumps
● The motor is loose and can be repaired.
● The plastic guide vane impeller has high strength and wear resistance.
● Imported steel, continuous shaft.
● The drive coupling resists wear.
● The ultra-high water inlet section has a lot of water inflow.
● Ultra-large flow, ultra-high lift.
● Cable waterproof design, to prevent water from entering the motor.
● Environmentally friendly food grade mechanical oil, no pollution.
● The motor is automatically protected and does not burn the machine.
● Ultra-low voltage 100V start.
● The motor is automatically protected and does not burn the machine.
● Ultra-low voltage 100V start.
● High efficiency and more power saving.
● The diversion part is designed to prevent sand, and no sand is stuck.
- Product description
- Model parameter table

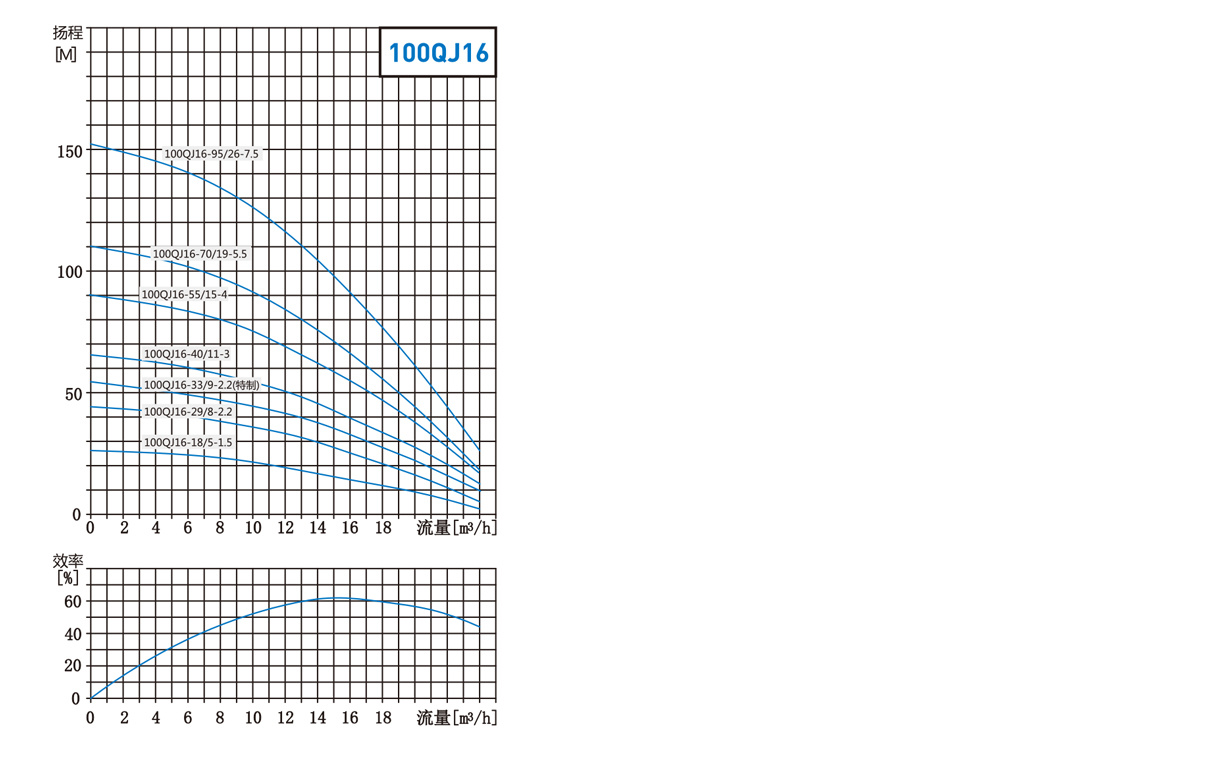

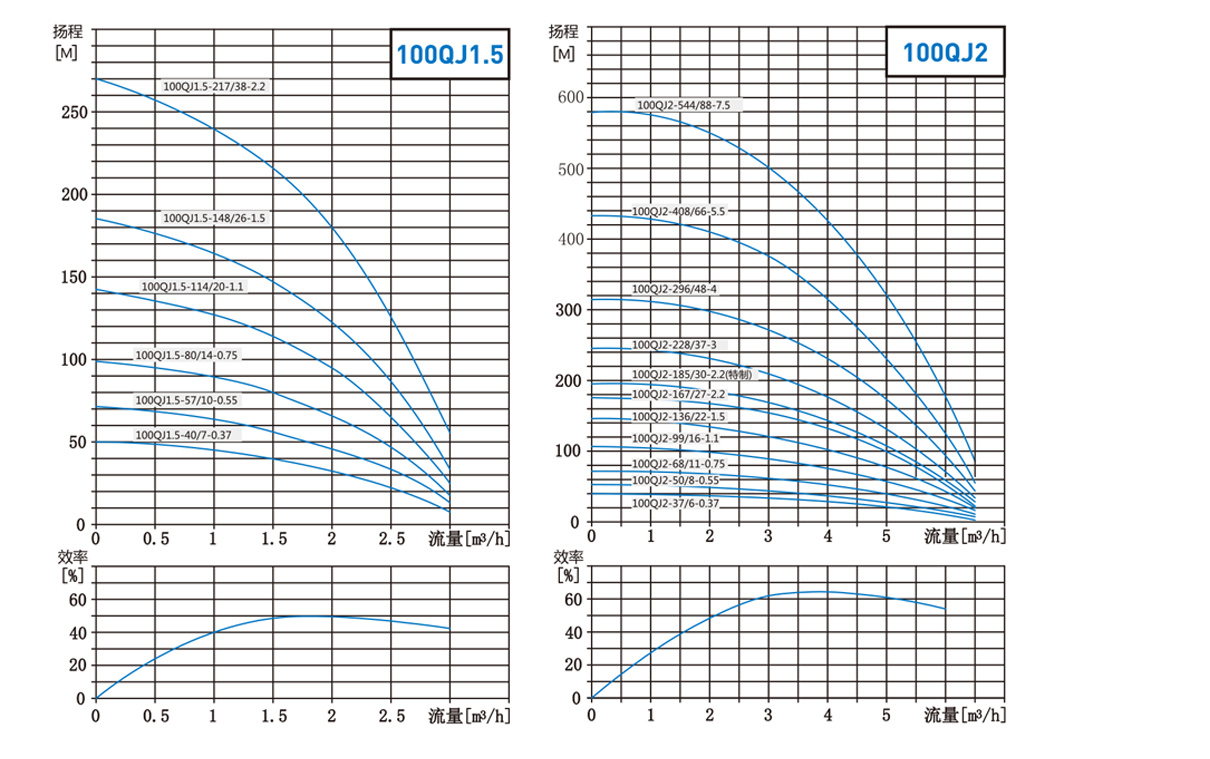

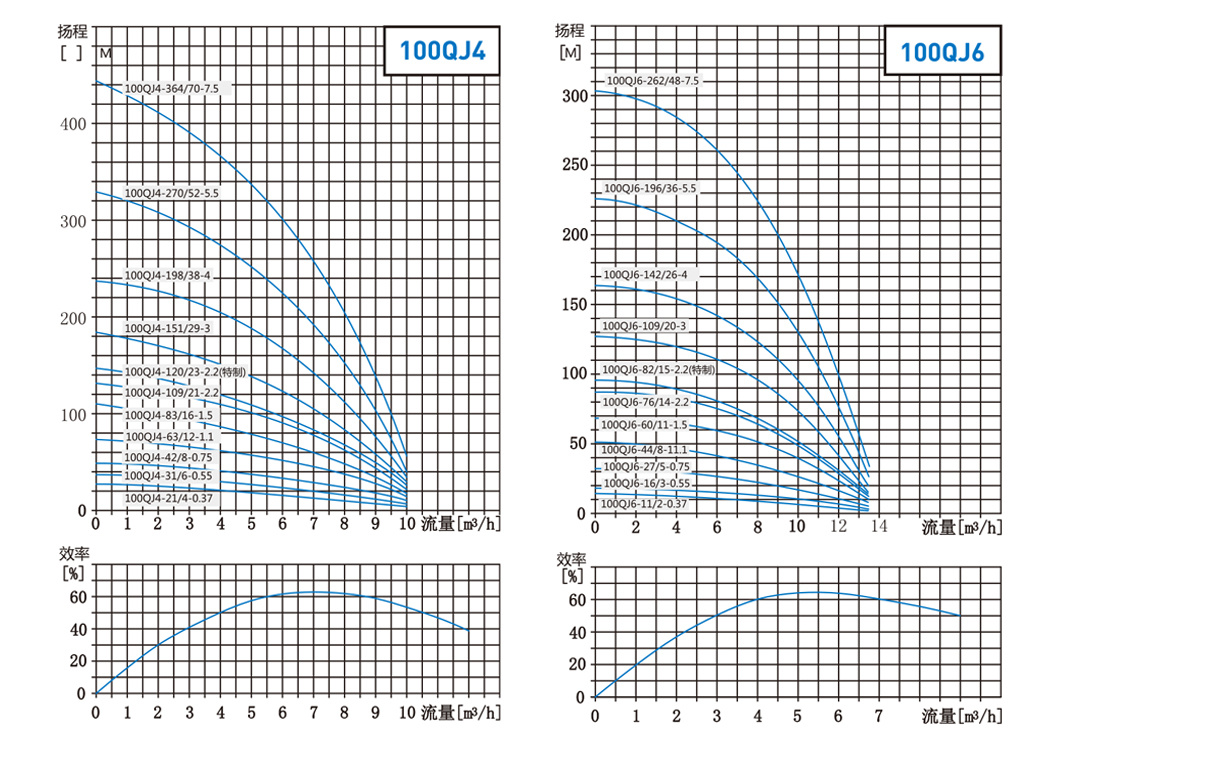

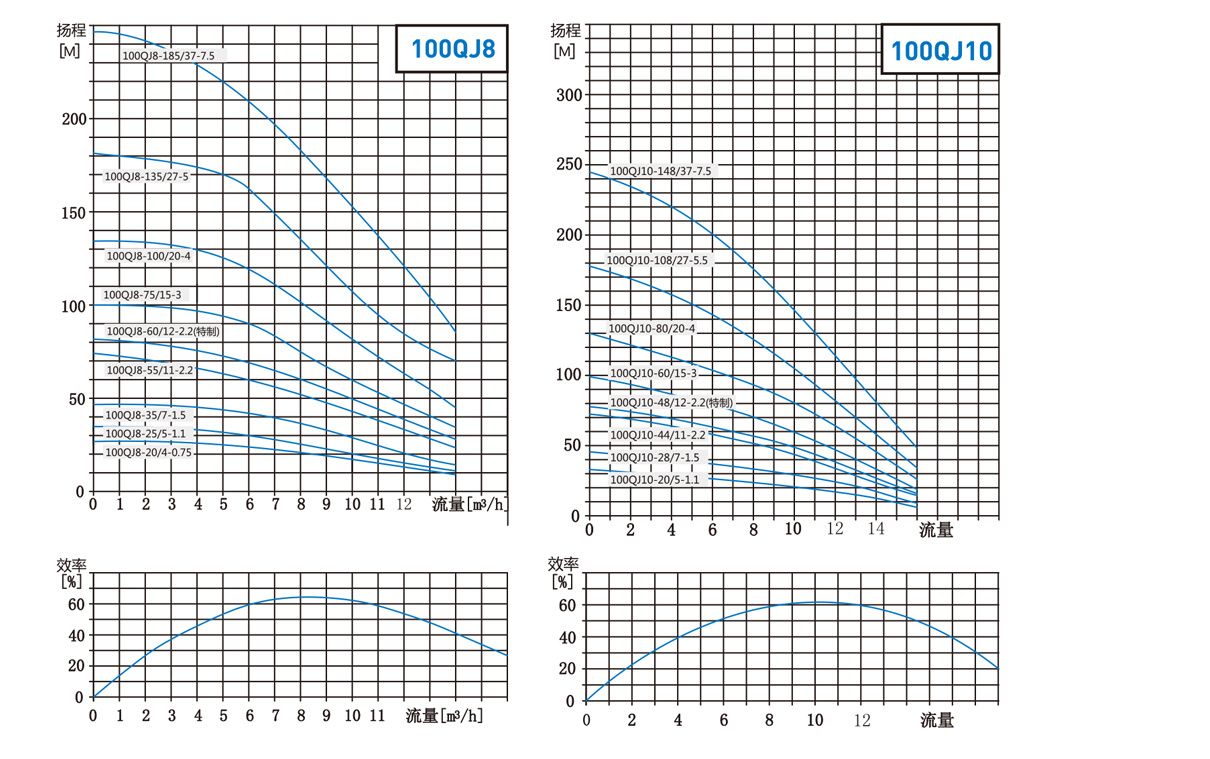

- Performance curve
- Package
- Parts
-

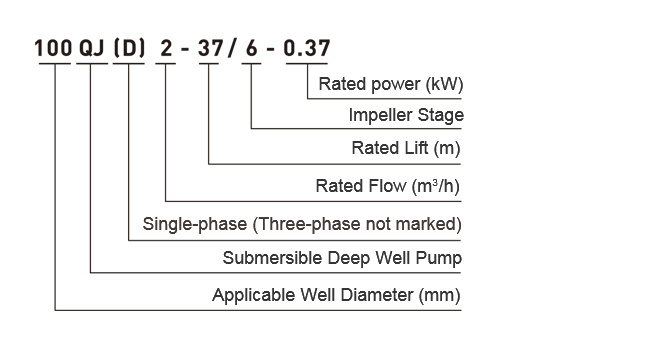

Domestic model
Applications
● For water supply from wells or reservoirs.
● For domestic use,for civil and industrial applications.
● For garden use and irrigation.Operating conditions
● Maximum fluid temperature up to+35 C
● Maximum sand content: 0.25%
● Maximum irnmersion: 80m.
● Maximum well diameter:4"Options on request
● Special mechanical seal
● Other voltages or frequency 60Hz
● Single phase motor with buit-in capacitor
Motor and Pump
● Rewindable motor or Full obturated screeri motor.
● Three-phase: 380V-41 5V/50Hz
● Single-phase: 220V-240V/50Hz
● Equip with start control box or digital auto-controlbox
● Pumps are designed by casing stressed
● NEMA dimension standards
● Curve tolerance according to ISO 9906Warranty: 1 Year
● (according to our general sales conditions).
Key words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
Type Power Flow(n = 2850r/min) kW HP m3/h 0 0.5 1 1.5 2 2.5 3 4 5 6 7 8 9 10 12 14 16 18 20 24 1OOQJ1.5-40/7-0.37 0.37 0.55 Head
(m)
50 48 45 40 34 23 9 100QJ1.5-57/10-0.55 0.55 0.75 71 68 64 57 48 33 13 100QJ1.5-80/14-0.75 0.75 1.1 99 95 89 80 67 46 18 100QJ1.5-114/20-1.1 1.1 1.5 142 136 128 114 95 65 25 100QJ1.5-148/26-1.5 1.5 2.2 185 177 167 148 123 84 32 100QJ1.5-217/38-2.2 2.2 3 270 258 243 217 180 123 47 100QJ2-37/6-0.37 0.37 0.55 Head
(m)
40 39 37 34 28.5 22 11 100QJ2-50/8-0.55 0.55 0.75 53 52 50 46 38 29.5 15 100QJ2-68/11-0.75 0.75 1.1 73 71.5 68 63 52.5 41 21 100QJ2-99/16-1.1 1.1 1.5 106 104 99 91 76 59 30 100QJ2-136/22-1.5 1.5 2.2 145 143 136 125 105 96 42 100QJ2-167/27-2.2 2.2 3 178 176 167 154 129 100 51 100QJ2-185/30-2.2 2.2 (Special) 3 198 195 185 171 143 111 57 100QJ2-228/37-3 3 4 244 240 228 211 177 137 70 100QJ2-296/48-4 4 5.5 317 312 296 274 229 178 91 100QJ2-408/66-5.5 5.5 7.5 436 429 408 376 315 244 125 100QJ2-544/88-7.5 7.5 10 580 572 544 502 421 326 167 100QJ4-21/4-0.37 0.37 0.55 Head
(m)
23.5 22 21 19 15 8 100QJ4-31/6-0.55 0.55 0.75 38 35 33 31 29 22 12 100QJ4-42/8-0.75 0.75 1.1 50 47 44 42 38 30 16 100QJ4-63/12-1.1 1.1 1.5 76 70 67 63 58 45 18 100QJ4-83/16-1.5 1.5 2.2 111 94 89 83 77 60 32 100QJ4-109/21-2.2 2.2 3 132 123 117 109 101 79 42 100QJ4-120/23-2.2 2.2 (Special) 3 145 135 128 120 110 86 46 100QJ4-151/29-3 3 4 183 170 161 151 139 109 58 100QJ4-198/38-4 4 5.5 239 223 211 198 182 143 76 100QJ4-270/52-5.5 5.5 7.5 328 305 289 270 250 195 104 100QJ4-364/70-7.5 7.5 10 441 411 389 364 336 263 140 100QJ6-11/2-0.37 0.37 0.55 Head
(m)
12.5 12 11.5 11 9.5 7 4 100QJ6-16/3-0.55 0.55 0.75 19 18.5 17.5 16 14 11 6 100QJ6-27/5-0.75 0.75 1.1 31.5 31 29 27 23.5 18 10 100QJ6-44/8-1.1 1.1 1.5 50.5 49.5 46.5 44 38 29 16 100QJ6-60/11-1.5 1.5 2.2 69 68 64 60 52 40 22 100QJ6-76/14-2.2 2.2 3 88 86 81 76 66 51 28 100QJ6-82/15-2.2 2.2 (Special) 3 95 93 87 82 74 54 30 100QJ6-109/20-3 3 4 126 124 116 109 95 72 40 100QJ6-142/26-4 4 5.5 164 161 151 142 123 94 52 100QJ6-196/36-5.5 5.5 7.5 227 222 209 196 167 130 72 100QJ6-262/48-7.5 7.5 10 302 297 279 262 227 174 96 100QJ8-20/4-0.75 0.75 1.1 Head
(m)
27 26 25.5 24 20 16 13 9 100QJ8-25/5-1.1 1.1 1.5 34 33 32 30 25 20 16 12 100QJ8-35/7-1.5 1.5 2.2 47 46 45 42 35 28 22 16 100QJ8-55/11-2.2 2.2 3 74 72 70 66 55 44 35 25 100QJ8-60/12-2.2 2.2 (Special) 3 81 79 76 72 60 55 39 27 100QJ8-75/15-3 3 4 111 99 96 90 75 60 48 35 100QJ8-100/20-4 4 5.5 134 131 128 120 100 80 64 46 100QJ8-135/27-5.5 5.5 7.5 181 177 173 162 135 108 86 70 100QJ8-185/37-7.5 7.5 10 248 243 237 222 185 148 118 85 100QJ10-20/5-1.1 1.1 1.5 Head
(m)
33 29 26 24 20 18 11 6.5 100QJ10-28/7-1.5 1.5 2.2 46 40 36 33 28 25 15 9 KXJQJ10-44/11-2.2 2.2 3 72 63 57 52 44 39 24 14 100QJ10-48/12-2.2 2.2 (Special) 3 79 69 62 57 48 43 26 15 100QJ10-60/15-3 3 4 99 86 78 71 60 53 33 19 100QJ10-80/20-4 4 5.5 131 114 104 94 80 70 44 26 100QJ10-108/27-5.5 5.5 7.5 177 154 140 127 108 94 59 35 100QJ10-148/37-7.5 7.5 10 243 212 192 175 148 130 81 48 100QJ16-18/5-1.5 1.5 2.2 Head
(m)
30 29 27 23 18 13 6 100QJ16-29/8-2.2 2.2 3 48 46 42 37 29 20 9 100QJ16-33/9-2.2 (Special) 2.2 3 54 52 47 42 33 23 10 100QJ16-40/11-3 3 4 66 63 58 51 40 28 13 100QJ16-55/15-4 4 5.5 90 86 80 69 55 38 17 100QJ16-70/19-5.5 5.5 7.5 114 109 101 88 70 48 22 100QJ16-95/26-7.5 7.5 10 156 149 138 120 95 65 30 -
-
*M(S)—Single Phase Motor *T(S)—Single Phase Motor+Pump
*M(T)—Three Phase Motor *T(T)—Three Phase Motor+Pump

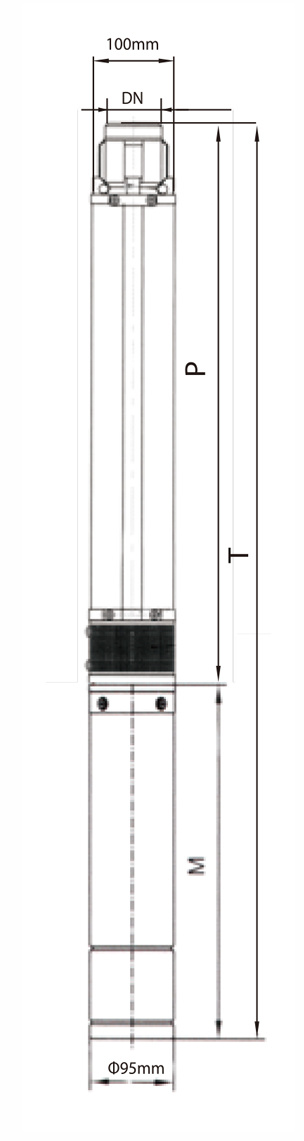

Type DN Dimension P M(S) M(T) T(S) T(T) 100QJ1.5-40/7-0.37 11/2"
420 384 374 804 794 100QJ1.5-57/10-0.55 481 394 394 875 875 100QJ1.5-80/140.75 563 419 414 982 977 100QJ1.5-114/20-1.1 686 449 444 1135 1130 100QJ1.5-14S/26-1.5 845 484 474 1329 1319 100QJ1.5-217/38-2.2 1127 539 529 1666 1656 100QJ2-37/6-0.37 400 384 374 784 774 100QJ2-50/8-0.55 452 394 394 846 846 100QJ2-68/11-0.75 530 419 414 949 944 100QJ2-99/16-1.1 660 449 444 1109 1104 100QJ2-136/22-1.5 852 484 474 1336 1326 100QJ2-167/27-2.2 1018 539 529 1557 1547 100QJ2-185/30-2.2 1096 589 529 1685 1625 100QJ2-228/37-3 1314 564 1878 100QJ2-296/4S-4 1636 634 2270 100QJ2-408/66-5.5 2140 734 2874 100QJ2-544/88-7.5 2748 869 3617 100QJ4-21/4-0.37 370 384 374 754 744 100QJ4-31/6-0.55 433 394 394 827 827 100QJ4-42/8-0.75 496 419 414 915 910 100014^3/12-1.1 622 449 444 1071 1066 100QJ4-83/16-1.5 784 484 474 1268 1258 100QJ4-109/21-2.2 942 539 529 1431 1471 100QJ4-120/23-2.2 1041 589 529 1630 1570 100QJ4-151/29-3 1229 564 1793 100QJ4-198/38-4 1549 634 2183 100014^270/52-5.5 2026 734 2760 100QJ4-364/70-7.5 2639 869 3498 100QJ6-11/2-0.37 313 384 374 697 687 100QJ6-16/3-0.55 348 394 394 742 742 100QJ6-27/5-0.75 417 419 414 836 831 100QJ6-44/8-1.1 520 449 444 969 964
Type DN Dimension P M(S) M(T) T(S) T(T) 100QJ6-60/11-1.5 11/2" 624 484 474 1108 1098 100QJ6-76/14-2.2 763 539 529 1302 1292 100QJ6-82/15-2.2 798 589 529 1387 1327 100QJ6-109/20-3 1006 564 1570 100QJ6-142/26-4 1249 634 1883 100QJ6-196/36-5.5 1630 734 2364 100QJ6-262/48-7.5 2080 869 1949 100QJ8-20/4-0.75 2" 531 419 414 950 945 100QJ8-25/5-1.1 599 449 444 1048 1043 100QJ8-35/7-1.5 735 484 474 1219 1209 100QJ8-55/11-2.2 1007 539 529 1546 1536 100QJ8-60/12-2.2 1075 589 529 1664 1604 100QJ8-75/15-3 1279 564 1843 100QJ8-100/2(M 1619 634 2253 100QJ8-135/27-5.5 2095 734 2829 100QJ8-185/37-7.5 2775 869 3644 100QJ10-20/5-1.1 599 449 444 1043 1043 100QJ10-28/7-1.5 735 484 474 1219 1209 100QJ10-44/11-2.2 1007 539 529 1546 1536 100QJ1(M«/l 2-2.2 1075 589 529 1664 1604 100QJ10-60/15-3 1279 564 1843 100QJ10-80/20-4 1619 634 2253 100QJ10-108/27-5.5 2095 734 2829 100QJ10-148/37-7.5 2775 869 3644 100QJ16-18/5-1.5 619 484 474 1103 1093 100QJ16-29/8-2.2 823 539 529 1362 1352 100QJ16-33/9-22(Special) 891 589 529 1480 1420 100QJ16-40/11-3 1027 564 1591 100QJ16-55/15-4 1299 634 1933 100QJ16-70/19-5.5 1571 734 2305 100QJ16-95/26-7.5 2047 869 2916 -

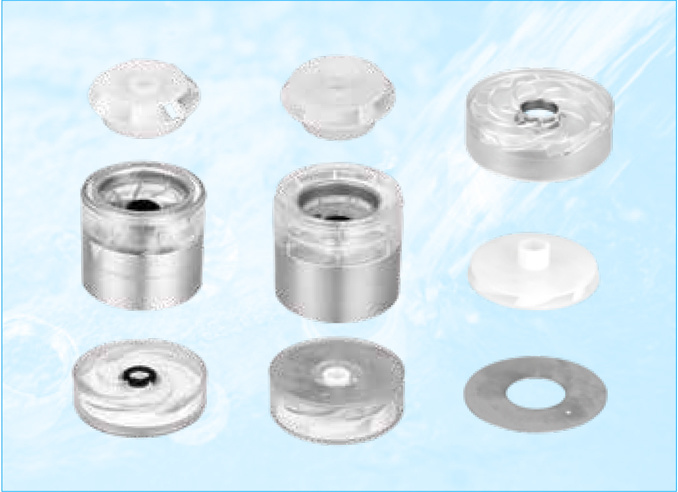

Single floating type impeller, sand-proof

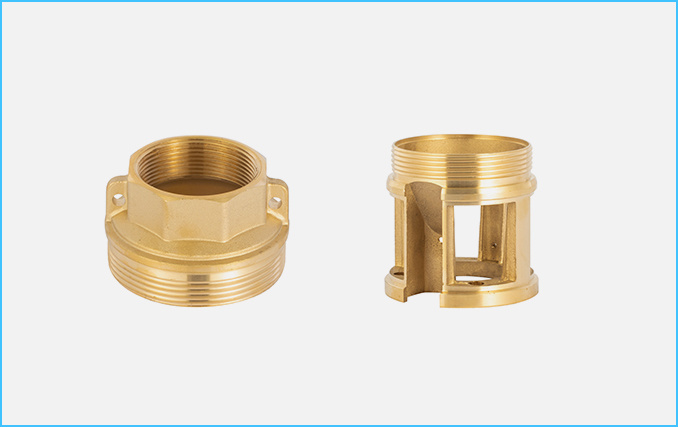

Pure copper outlet, pure copper connection

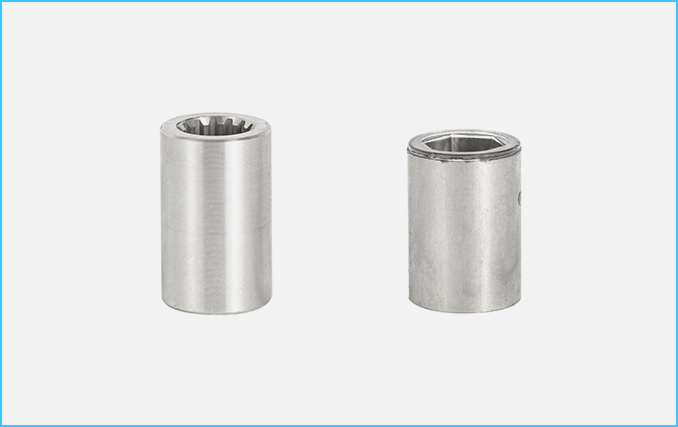

Stainless Steel Coupling, Stainless Steel Bushing

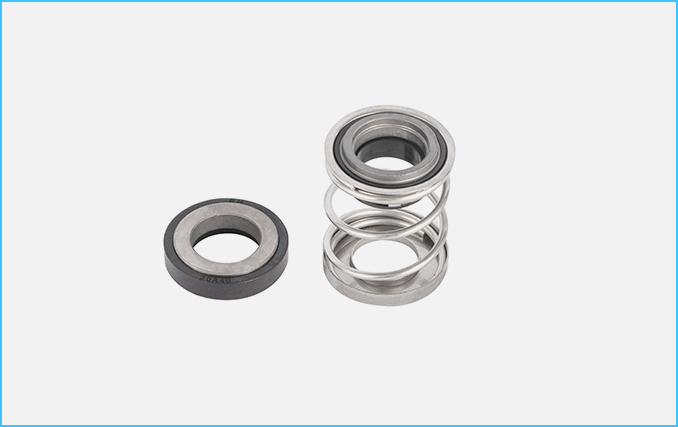

Machinery Seal
