3SD(75QJ)
3"Deep Well Pumps
● The plastic guide vane impeller has high strength and wear resistance.
● Motor with protector
● Longer working life
● Motor housing with food grade mechanical oil
● Wear-resistance, anti-corrosion
● Safe and no pollotion
- Product description
- Model parameter table

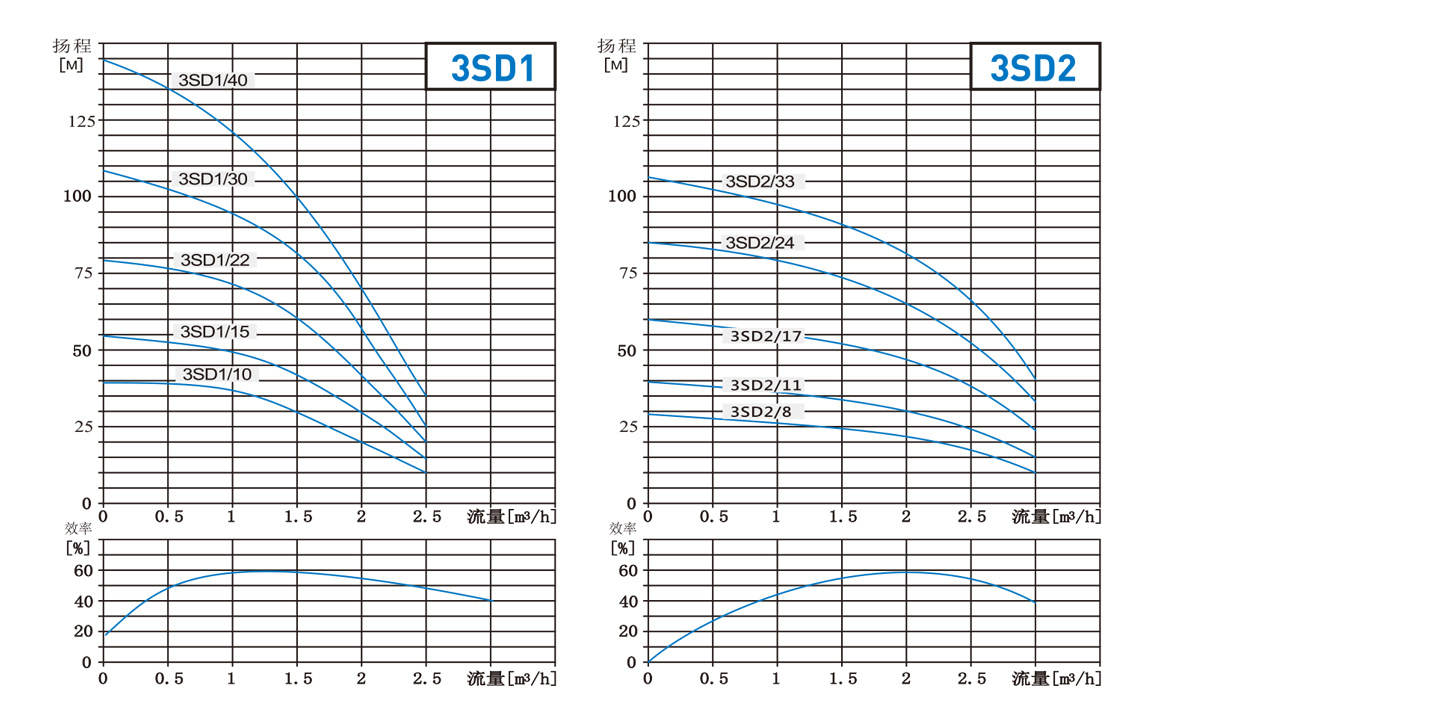

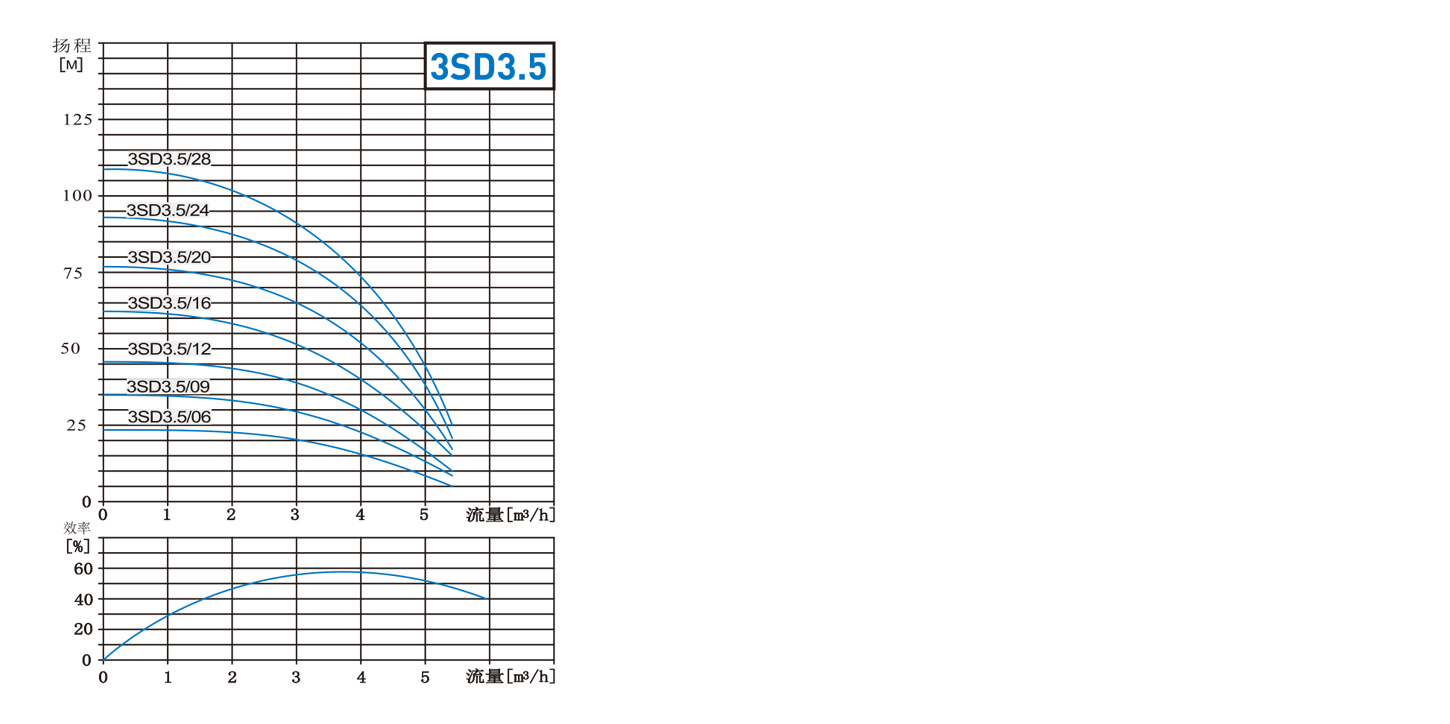

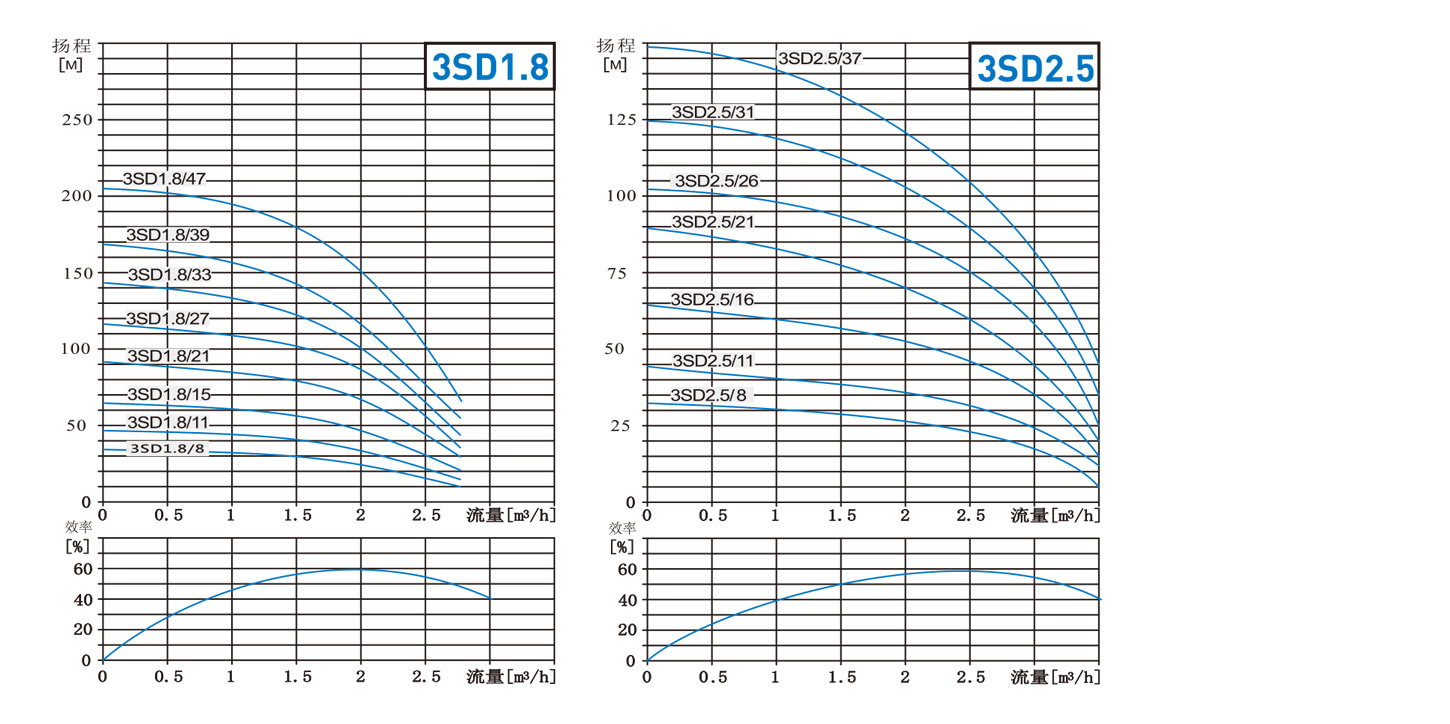

- Performance curve
- Package
- Parts
-

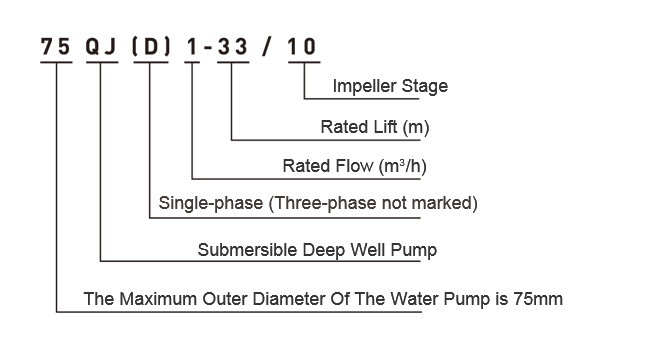

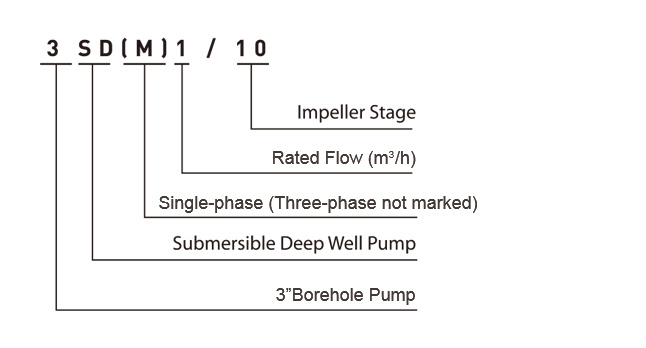

Mode Implication Domestic model
Applications
● For water supply from wells or reservoirs.
● For domestic use,for civil and industrial applications.
● For garden use and irrigation.Operating conditions
● Maximum fluid temperature up to+35 C
● Maximum sand content: 0.25%
● Maximum irnmersion: 80m.
● Maximum well diameter:3"Options on request
● Special mechanical seal
● Other voltages or frequency 60Hz
● Single phase motor with buit-in capacitor
Motor and Pump
● Rewindable motor or Full obturated screeri motor.
● Three-phase: 380V-41 5V/50Hz
● Single-phase: 220V-240V/50Hz
● Equip with start control box or digital auto-controlbox
● Pumps are designed by casing stressed
● NEMA dimension standards
● Curve tolerance according to ISO 9906Warranty: 1 Year
● (according to our general sales conditions).
Key words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
Export Model
Domestic Model
Power Flow(n = 2850r/min) l/min
0 5 8 10 15 17 20 25 30 33 35 40 42 45 47 50 55 60 70 80 90 Type kW HP m3/h 0 0.3 0.5 0.6 0.9 1 1.2 1.5 1.8 2 2.1 2.4 2.5 2.7 2.8 3.0 3.3 3.6 4.2 4.8 5.4 3SD1/10 75QJ1-33/10 0.25 0.33 Head
(m)
38 36 33 28 23 20 10 4 3SD1/15 75QJ1-50/15 0.37 0.5 55 54 50 40 34 29 14 5 3SD1/22 75QJ1-72/22 0.55 0.75 79 78 72 58 50 42 20 7 3SD1/30 75QJ1-93/30 0.75 1 1.8 105 93 76 64 57 27 10 3SD1/40 75QJ1-120/40 1.1 1.5 144 132 120 91 76 60 35 13 3SD1.8/8 75QJ1.8-26/8 0.18 0.25 Head
(m)
35 34 34 33 32 29 26 22 17 11 3SD1.8/11 75QJ1.8-36/11 0.25 0.33 48 47 47 46 44 40 36 30 24 15 3SD1.8/15 75QJ1.8-49/15 0.37 0.5 65 64 64 63 60 55 49 41 33 21 3SD1.8/21 75QJ1.8-68/21 0.55 0.75 91 90 90 88 84 77 68 58 46 29 3SD1.8/27 75QJ1.8-88/27 0.75 1 117 116 115 113 107 99 88 75 59 38 3SD1.8/33 75QJ1.8-107/33 1.1 1.5 143 142 141 138 131 121 107 91 72 46 3SD1.8/39 75QJ1.8-127/39 1.1 1.5 168 168 167 163 155 143 127 108 85 55 3SD1.8/47 75QJ1.8-153/47 1.5 2 203 202 201 196 187 172 153 130 102 66 3SD2/8 75QJ2-22/8 0.25 0.33 Head
(m)
28 27 26 25 23 22 17 11 3SD2/11 75QJ2-30/11 0.37 0.5 39 37 36 34 32 30 23 15 3SD2/17 75QJ2-46/17 0.55 0.75 60 58 56 52 49 46 37 23 3SD2/24 75QJ2-65/24 0.75 1 85 82 79 74 70 65 52 33 3SD2/33 75QJ2-82/33 1.1 1.5 106 103 98 92 87 82 65 41 3SD2.5/8 75QJ2.5-23/8 0.25 0.33 Head
(m)
32 32 31 30 30 29 27 26 24 23 21 18 13 8 3SD2.5/11 75QJ2.5-31/11 0.37 0.35 44 43 43 42 41 39 37 35 32 31 29 24 18 11 3SD2.5/16 75QJ2.5-45/16 0.55 0.75 64 63 62 61 59 57 54 51 47 45 42 35 27 16 3SD2.5/21 75QJ2.5-60/21 0.75 1 84 83 82 80 78 75 72 68 62 60 56 46 35 21 3SD2.5/26 75QJ2.5-74/26 1.1 1.5 104 103 101 99 96 93 89 84 77 74 69 57 44 26 3SD2.5/31 75QJ2.5-89/31 1.1 1.5 124 122 121 118 115 111 106 100 91 89 82 68 52 31 3SD2.5/37 75QJ2.5-105/37 1.5 2 148 146 144 141 137 132 126 119 109 105 98 81 62 37 3SD3.5/6 75QJ3.5-17/6 0.25 0.33 Head
(m)
23 23 23 22 21 20 17 14 10 5 3SD3.5/9 75QJ3.5-26/9 0.37 0.5 35 34 34 33 32 29 26 21 15 8 3SD3.5/12 75QJ3.5-34/12 0.55 0.75 46 46 45 45 42 39 34 28 20 11 3SD3.5/16 75QJ3.5-46/16 0.75 1 62 61 61 59 57 52 46 37 26 14 3SD3.5/20 75QJ3.5-57/20 1.1 1.5 77 76 76 74 71 65 57 46 33 18 3SD3.5/24 75QJ3.5-69/24 1.1 1.5 93 92 91 89 85 78 69 56 39 21 3SD3.5/28 75QJ3.5-80/28 1.5 2 108 107 106 104 99 91 80 65 46 25 -
-
*M(S)—Single Phase Motor *T(S)—Single Phase Motor+Pump
*M(T)—Three Phase Motor *T(T)—Three Phase Motor+Pump

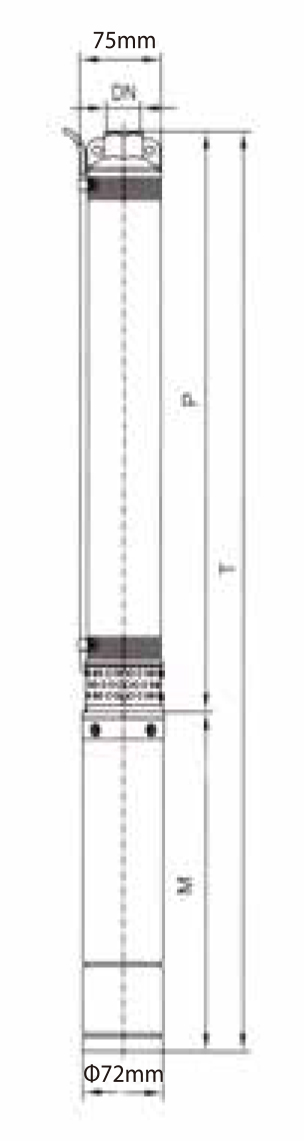

Type DN Dimension P M(S) M(T) T(S) T(T) 3SD1/10 1"
433 333 313 766 746 3SD1/15 558 353 333 911 891 3SD1/22 757 373 353 1130 1110 3SD1/30 981 413 373 1394 1354 3SD1/40 1256 473 413 1729 1669 3SD1.8/08 414 313 303 727 707 3SD1.8/11 482 333 313 815 795 3SD1.8/15 572 353 333 925 905 3SD1.8/21 743 373 353 1116 1096 3SD1.8/27 878 413 373 1291 1251 3SD1.8/33 1013 473 413 1486 1426 3SD1.8/39 1184 473 413 1657 1597 3SD1.8/47 1364 513 473 1877 1837 3SD2/08-0.25 406 333 313 739 719 3SD2/11-0.37 490 353 333 843 823 3SD2/17-0.55 682 373 353 1055 1035 3SD2/24-0.75 877 413 373 1290 1250 3SD2/33-1.2 1152 473 413 1625 1565
Type DN Dimension P M(S) M(T) T(S) T(T) 3SD2.5/8 11/4" 391 333 313 724 704 3SD2.5/11 469 353 333 822 802 3SD2.5/16 599 373 353 972 952 3SD2.5/21 754 413 373 1167 1127 3SD2.5/26 884 473 473 1357 1297 3SD2.5/31 1039 473 413 1512 1452 3SD2.5/37 1195 513 473 1708 1668 3SD3.5/6 436 333 313 769 749 3SD3.5/9 536 353 333 889 869 3SD3.5/12 637 373 353 1010 990 3SD3.5/16 807 413 373 1220 1180 3SD3.5/20 941 473 413 1354 1294 3SD3.5/24 1111 473 413 1584 1524 3SD3.5/28 1245 513 473 1758 1718 -

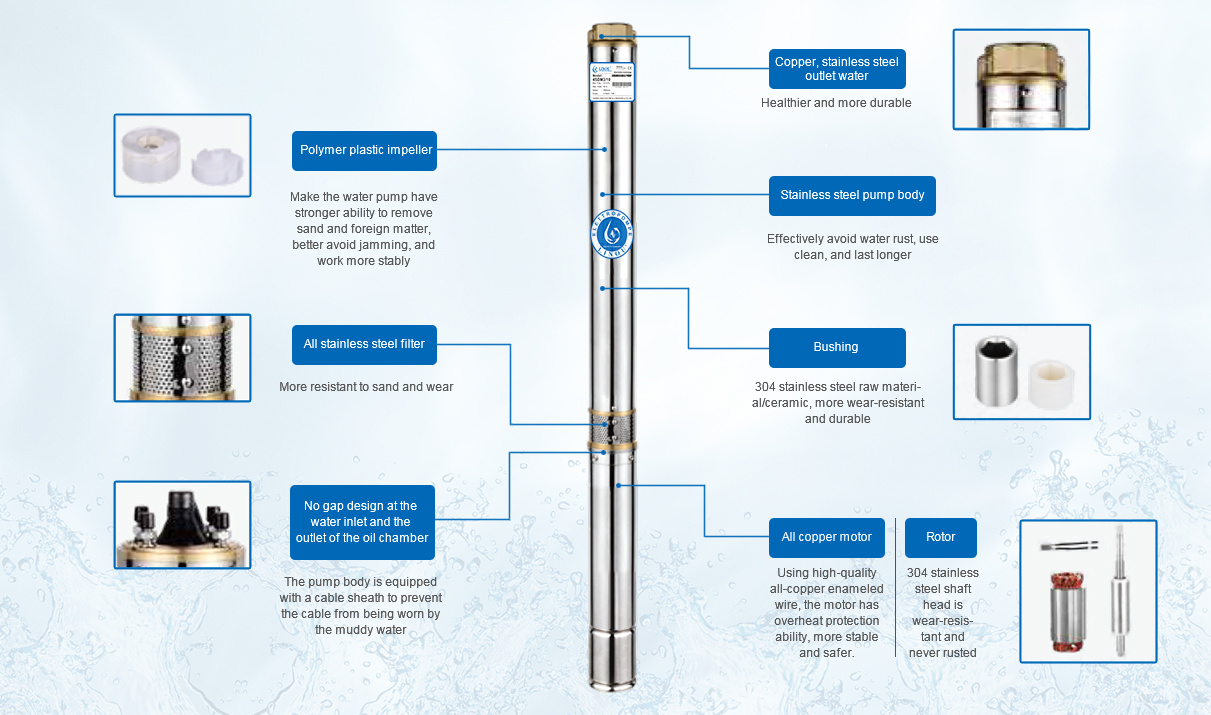

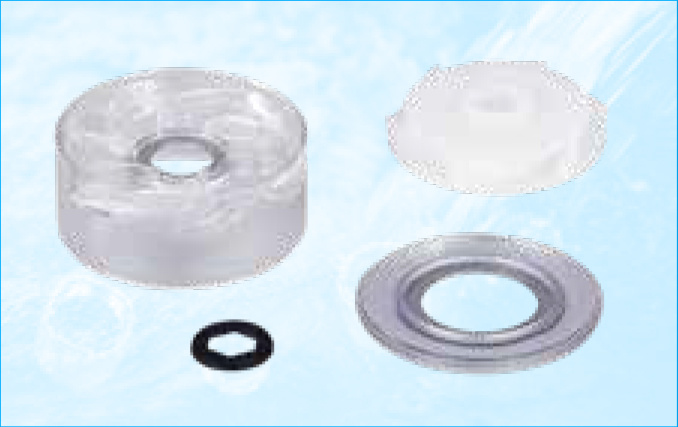

Single floating type impeller, sand-proof
Pure copper outlet, pure copper connection
Stainless Steel Coupling, Stainless Steel Bushing
Machinery Seal
