3SP(304)
3" Stainless Steel Deep Well Pumps
● The motor is loose and can be repaired.
● Stainless steel guide vane and impeller have high strength and corrosion resistance.
● Imported steel, continuous shaft.
● The drive coupling resists wear.
● The ultra-high water inlet section has a lot of water inflow.
● Ultra-large flow, ultra-high lift.
● Cable waterproof design, to prevent water from entering the motor.
● Environmentally friendly food grade mechanical oil, no pollution.
● Ultra-low voltage 100V start.
● The motor is automatically protected and does not burn the machine.
● High efficiency and more power saving.
● The diversion part is designed to prevent sand, and no sand is stuck.
- Product description
- Model parameter table
- Performance curve
- Package
- Parts
-

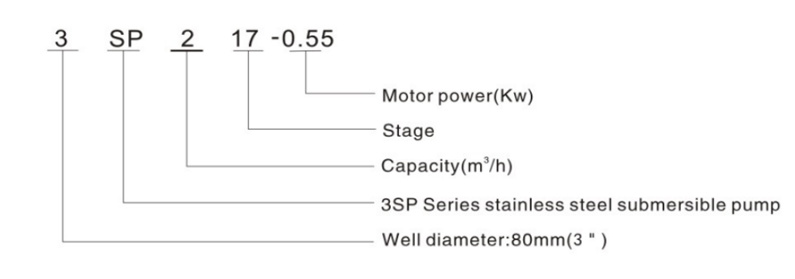

Mode Implication
Applications
● For pumping clean water with sand content less than 150g/m³
● For well pumping, river pumping, farm irrigation, water supply, mining, draiaage in breeding industry.
Operating conditions
● Water temperature up to 35℃
● Ambient temperature permissible up to 40℃
● 3SP Minimum internal diameter of well: 3"(75mm)
● Maximum sand content: 0.25%
● Maximum immersion depth: 80mMotor
● Rewindable motor
● Insulation Class B
● Protection IP68
● NEMA dimension standards
Options on request
● Special mechanical seal
● Single phase motor with built-in capacitor
● Single phase motor with control box
● The length of cable: 2 Meter
● Outlet dimension : 1¼"Key words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
3SPM Model
50Hz
Motor Power Three Phase Single Phase Q Capacity m³/h 0 0.5 1 1.5 2 2.5 3 3.5 4 380V 220V l/min 0 8 17 25 33 42 50 58 67 HP kW A A Total head in meters 3SP2/5 0.33 0.25 0.9 2.2 Hm 25 23 21 19 17 15 12 8 4 3SP2/8 0.5 0.37 1.8 3.1 40 37 34 31 28 24 20 13 6 3SP2/11 0.75 0.55 2.1 4 55 51 47 42 39 33 27 18 9 3SP2/13 1 0.75 2.5 5.4 65 60 55 50 46 39 32 21 12 3SP2/17 1.5 1.1 3.5 8 85 79 73 66 60 51 41 28 16 -
