OIL COOLING SUBMERSIBLE MOTOR
- Product description
- Model parameter table
- Performance curve
- Package
- Parts
-
3" oil cooling submersible motor
Feature
● Efficient and precise mechanical seals
● Motor housing and bottom cover adopt stainless steel 304
● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity
● High precision silent bearing enables the pumps long service life, more stable operation
● The stator adopts H class (200 degrees) high temperature resistant pure copper wire, low temperature rise, safe and reliable, suitable for long-term continuous work，long service life, environmental protection and energy saving
● Starting voltage can be as low as 180V3.5" oil cooling submersible motor
Feature
● Efficient and precise mechanical seals
● Motor housing and bottom cover adopt stainless steel 304
● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity
● High precision silent bearing enables the pumps long service life, more stable operation
● The stator adopts H class (200 degrees) high temperature resistant pure copper wire, low temperature rise, safe and reliable, suitable for long-term continuous work，long service life, environmental protection and energy saving
● Starting voltage can be as low as 180V4" oil cooling submersible motor
Feature
● Efficient and precise mechanical seals
● Motor housing and bottom cover adopt stainless steel 304
● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity
● High precision silent bearing enables the pumps long service life， more stable operation
● The stator adopts H class (200 degrees) high temperature resistant pure copper wire, low temperature rise, safe and reliable, suitable for long-term continuous work, long service life, environmental protection and energy saving
● 4-inch single-phase motor can be 160v-220v wide voltage
● Plug type cable can be used to make cable replacement more convenient6" oil cooling submersible motor
Feature
● Italian efficient and precise mechanical seals
● Motor housing and bottom cover adopt stainless steel 304
● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity
● High precision silent bearing enables the pumps long service life, more stable operation
● The stator adopts H class (200 degrees) high temperature resistant pure copper wire, low temperature rise, safe and reliable, suitable for long-term continuous work，long service life, environmental protection and energy saving
● Starting voltage can be as low as 180V
-
3"oil cooling submersible motor
Single-phase 220/230V 50HZ Model KW HP Current(A) cosΦ rpm L(mm) W(Kg) 3 OPM33 0.25 0.33 2.2 0.86 2800 333 6 3 OPM50 0.37 0.5 3.1 0.91 2800 353 6.3 3 OPM75 0.55 0.75 4 0.91 2800 373 6.7 3 OPM100 0.75 1 5.4 0.95 2800 413 7.7 3 OPM150 1.1 1.5 8 0.99 2800 473 8.4 3 OPM200 1.5 2 9.8 0.99 2800 513 10 Three-phase 380 / 415V 50HZ Model KW HP Current(A) cosΦ rpm L(mm) W(Kg) 3 OP50 0.37 0.5 1.8 0.63 2800 333 6.1 3 OP75 0.55 0.75 2.1 0.65 2800 353 6.5 3 OP100 0.75 1 2.5 0.68 2800 373 6.8 3 OP150 1.1 1.5 3.5 0.7 2800 413 7.8 3 OP200 1.5 2 4.5 0.73 2800 473 8.5 3.5"oil cooling submersible motor
Single-phase 220/230V 50HZ Model KW HP Current(A) cosΦ rpm L(mm) W(Kg) 3.5 OPM50 0.37 0.5 3.4 0.94 2850 400 7 3.5 OPM75 0.55 0.75 4.6 0.94 2850 420 8 3.5 OPM100 0.75 1 6 0.95 2850 440 10 3.5 OPM130 0.95 1.3 7.8 0.95 2850 460 12 3.5 OPM150 1.1 1.5 8.3 0.95 2850 480 13 3.5 OPM200 1.5 2 10 0.96 2850 560 14 Three-phase 380 / 415V 50HZ Model KW HP Current(A) cosΦ rpm L(mm) W(Kg) 3.5 OP75 0.55 0.75 1.8 0.73 2850 400 8 3.5 OP100 0.75 1 2.4 0.73 2850 420 10 3.5 OP130 0.95 1.3 2.8 0.75 2850 440 12 3.5 OP150 1.1 1.5 3.4 0.78 2850 460 13 3.5 OP200 1.5 2 4.4 0.94 2850 490 14 4"oil cooling submersible motor
Single-phase 220/230V 50HZ Model KW HP Current(A) cosΦ rpm L(mm) W(Kg) 4 OPM33 0.25 0.33 3 0.86 2830 412 6 4 OPM50 0.37 0.5 3.6 0.88 2830 422 7 4 OPM75 0.55 0.75 4.8 0.89 2830 432 8 4 OPM100 0.75 1 6.3 0.9 2830 457 10 4 OPM150 1.1 1.5 8.6 0.9 2850 487 12 4 OPM200 1.5 2 10.6 0.94 2850 522 14 4 OPM300 2.2 3 14 0.96 2850 577 16 Three-phase 380 / 415V 50HZ Model KW HP Current(A) cosΦ rpm L(mm) W(Kg) 4 OP75 0.55 0.75 1.85 0.8 2850 432 7.5 4 OP100 0.75 1 2.3 0.81 2850 452 9 4 OP150 1.1 1.5 3.2 0.82 2850 482 10 4 OP200 1.5 2 4.1 0.82 2850 512 12 4 OP300 2.2 3 5.8 0.83 2850 567 14.5 4 OP400 3 4 7.8 0.83 2850 602 17 4 OP550 4 5.5 10.4 0.83 2850 672 21 4 OP750 5.5 7.5 13.5 0.85 2850 772 26 4 OP1000 7.5 10 18 0.85 2850 907 32.5 6"oil cooling submersible motor
Three-phase 380 / 415V 50HZ Model KW HP Current(A) cosΦ rpm L(mm) W(Kg) 6 OP300 2.2 3 5.5 0.8 2850 678 30 6 OP400 3 4 7.6 0.8 2850 698 32 6 OP550 4 5.5 10 0.8 2850 718 34 6 OP750 5.5 7.5 12.9 0.83 2850 743 36 6 OP1000 7.5 10 16.5 0.85 2850 768 38 6 OP1250 9.2 12.5 19.5 0.87 2850 818 42 6 OP1500 11 15 23 0.87 2850 878 48.5 6 OP1750 13 17.5 26.3 0.88 2850 958 56.5 6 OP2000 15 20 29.5 0.88 2850 1008 61 6 OP2500 18.5 25 36.3 0.89 2850 1108 72 6 OP3000 22 30 43.1 0.89 2850 1183 78 -

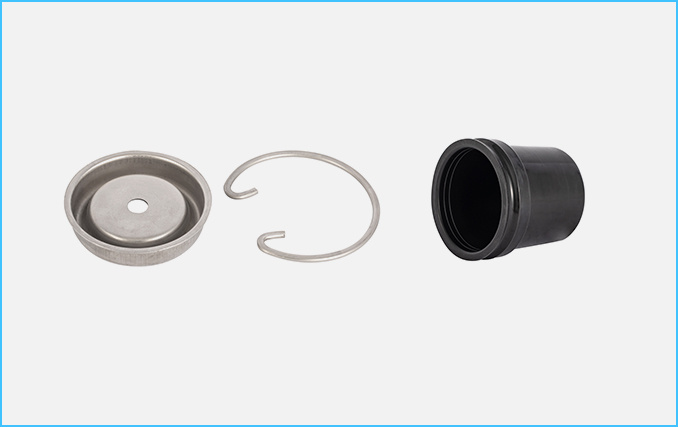

4 inch bottom cover,4 inch oil cup

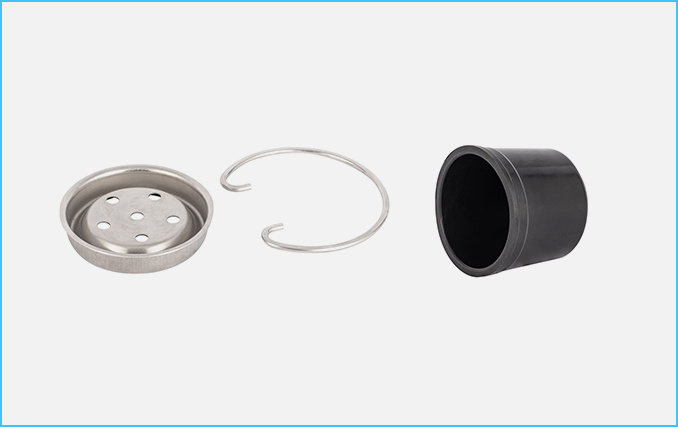

6 inch bottom cover,6 inch oil cup

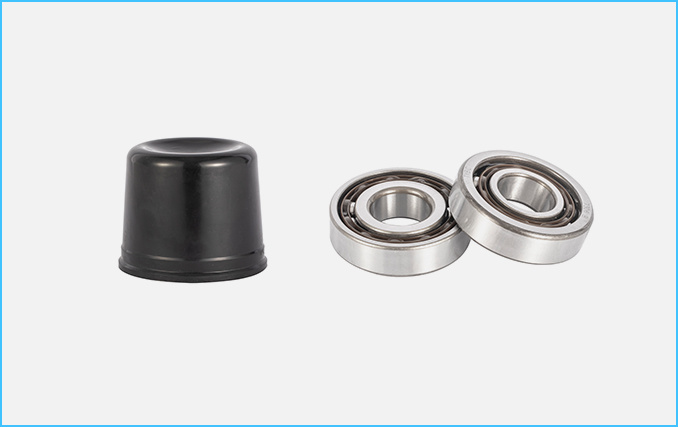

6 inch oil cup,High-precision bearings

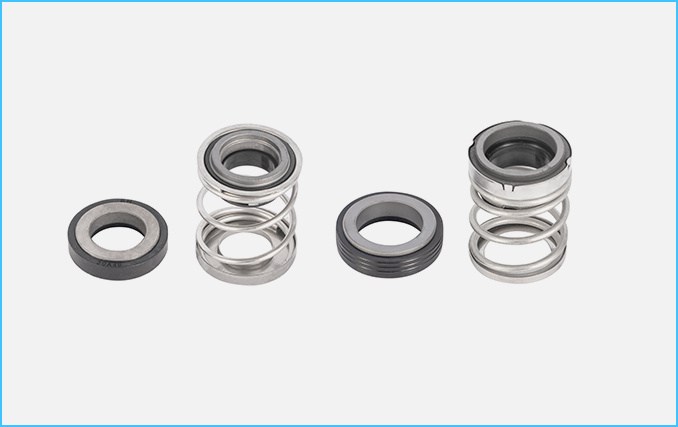

Machinery Seal

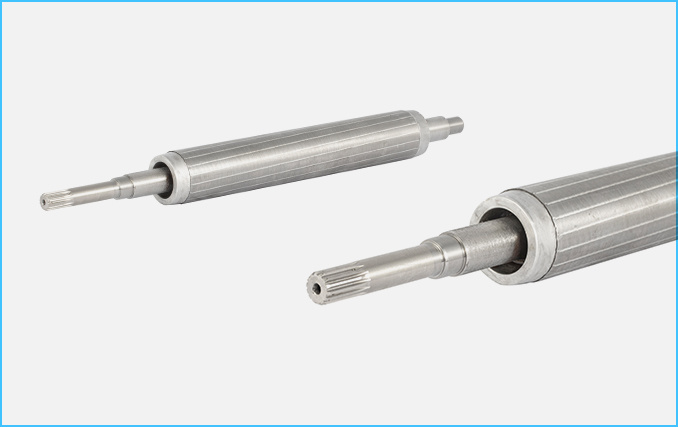

Aluminum Rotor

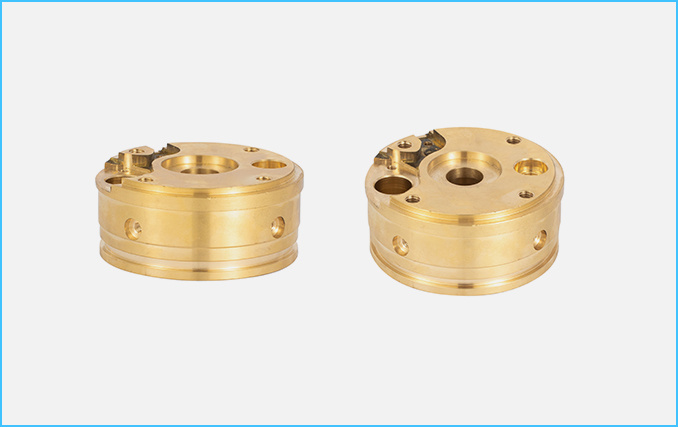

Copper Cylinder

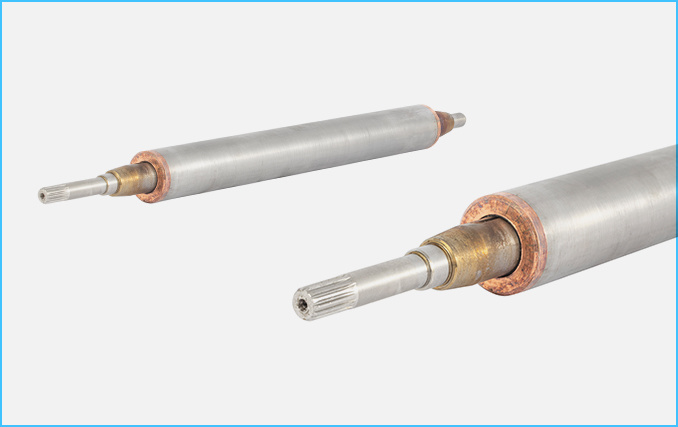

Copper Rotor
