4DCSP-A/D Brushless Stainless Steel Deep Solar Well PumpS:4-inch AC / DC impeller type solar deep well pump (outer diameter 96mm), The impeller and runner are made of 304 stainless steel.
Main features:
1) Single AC power supply (AC only)
2) Single DC power supply (only solar panels)
3) Economical model: AC and DC power supply at the same time (solar panel is preferred)
4) High end model: full power AC / DC automatic hybrid compensation (the minimum power of solar panel can be 1W) can increase the mobile Internet function of mobile app
- Product description
- Model parameter table
- Performance curve

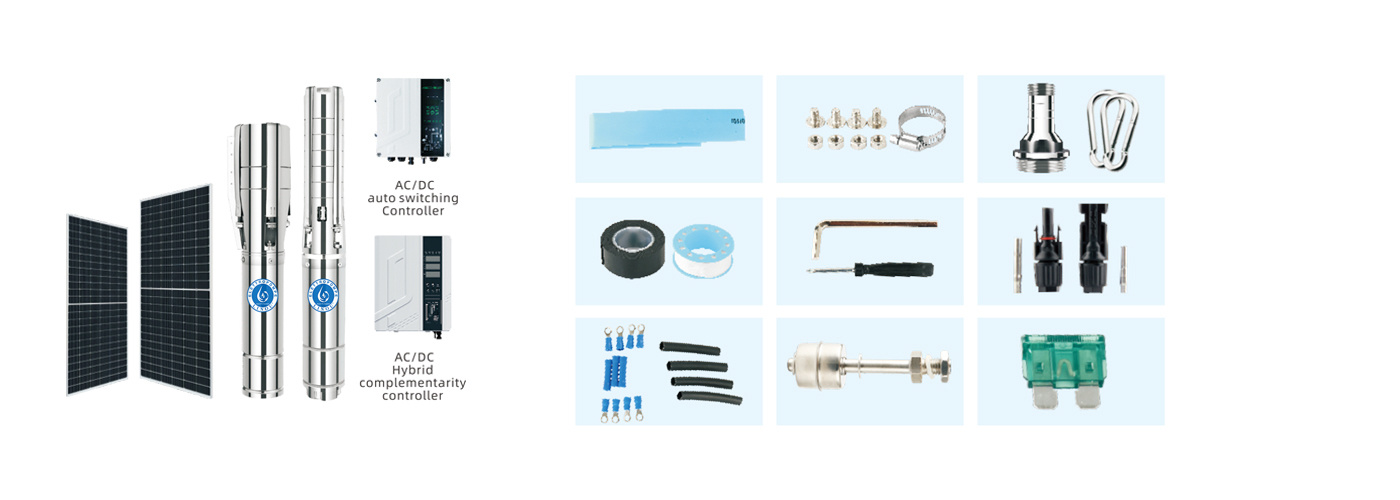

- Package
- Parts
-
4" AC/DC Brushless Stainless Steel Deep Solar Well PumpS
Installation and use:
The whole solar pump device is mainly composed of solar panel, control box and pump. Submersible solar pump uses solar energy to pump water and deliver water. This is a submersible pump. This is the most attractive way to supply water in sunny areas in the world today, especially in remote areas lacking electricity and electricity. It is mainly used for domestic water supply, agricultural irrigation, garden irrigation, etc. In addition to water pumps and renewable energy sources, solar water pumps also integrate all necessary control, communication and auxiliary equipment and are delivered as a complete system. The system can be combined and adapted to any needs, matching the conditions of the installation site. The choice of energy and a wide range of performance ensure great flexibility.
AC/DC AUTOMATIC SWITCHING CONTROLLER
WORKING ENVIRONMENT AND ELECTRICALPROPERTController and Pump Matching Method
Controller Model Adaptable Pump DC Max.Input Current
(A)AC Max.Input Current
(A)DC Input Voltage
(V)AC Input Voltage
(V)Working Temperature
(℃)VH-AC220V/DC110V Rated AC220V/DC110V Pump 12 20 108-410 100-264 -15-60 VH-AC220V/DC150V Rated AC220V/DC150V Pump 12 20 108-410 100-264 -15-60 VH-AC220V/DC200V Rated AC220V/DC200V Pump 12 20 108-410 100-264 -15-60 VH-AC220V/DC300V Rated AC220V/DC300V Pump 12 20 108-410 100-264 -15-60 AC/DC HYBRID COMPL EMENTARITY CONTROLLER
WORKING ENVIRONMENT AND ELECTRICALPROPERTYController and Pump Matching Method
Controller Model Adaptable Pump DC Max.Input Current
(A)AC Max.Input Current
(A)DC Input Voltage
(V)AC Input Voltage
(V)Working Temperature
(℃)VH-AC220V/DC110V Rated AC220V/DC110V Pump 12 15 80-410 150-264 -15-60 VH-AC220V/DC150V Rated AC220V/DC150V Pump 12 15 80-410 150-264 -15-60 VH-AC220V/DC200V Rated AC220V/DC200V Pump 12 15 80-410 150-264 -15-60 VH-AC220V/DC300V Rated AC220V/DC300V Pump 12 15 80-410 150-264 -15-60
MPPT SOLAR CONTROLLER
LED display: AC voltage DC voltage AC current DC current motor speed fault code.
Intelligent control: automatic start and stop function of water pump, water shortage protection function of water pump, automatic control of water level of water tower (external floating ball switch). Solar maximum tracking and pump fault display
Automatic AC / DC switching: automatic AC switching when the solar illumination is less than 500W.
AC / DC hybrid complementary model: full power AC / DC automatic hybrid compensation (the minimum power of solar panel can reach 1W) can increase the mobile Internet function of mobile applications
Protection grade: IP65
Operating temperature: - 15 ℃ - 65 ℃
Speed regulation of control motor: 1000-4500r / min
Maximum current: DC 12a, AC 20A
Permanent magnet DC brushless synchronous motor: the motor adopts n40sh rare earth strong magnet, 180 ℃ high temperature enamelled wire and 600 silicon steel sheet. The utility model has the advantages of simple structure, high reliability, small volume, high power, high efficiency, energy saving and longer service life. Machine automatic winding technology. Stainless steel shaft, high precision bearing, silicon carbide mechanical seal. Improve efficiency by 25%, save energy and reduce the number of solar panels.
Key words:- 3dcqj
- the
- is
- energy
- water
- solar
- and
- pump
- in
- of
-
TECHNICAL DATA
ITEM
Voltage
(v)Power
(w)Max.
Flow
(m3/h)Max.
Head
(m)Outlet
(in)Lnput Voltage Solar Panels Suggestion （AC） （DC） （DC） （AC） Voltage
(V)Power
(w)Quantity
(pcs)Connection 4DCSP5.5-75-110-750-A/D 220V 110V 750 5.5 75 1.25”-1” 80V-410V 150V-264V 36 340 3
4DCSP5.5-140-150-1100-A/D 220V 150V 1100 5.5 140 1.25”-1” 80V-410V
150V-264V 36 340 4
4DCSP5.5-202-150-1300-A/D 220V 150V 1300 5.5 202 1.25”-1” 80V-410V 150V-264V 36 340 5
4DCSP5.5-262-200-1500-A/D 220V 200V 1500 5.5 262 1.25”-1” 80V-410V 150V-264V 36 340 6
4DCSP5.5-280-300-2200-A/D 220V 300V 2200 5.5 280 1.25”-1” 80V-410V 150V-264V 36 340 8

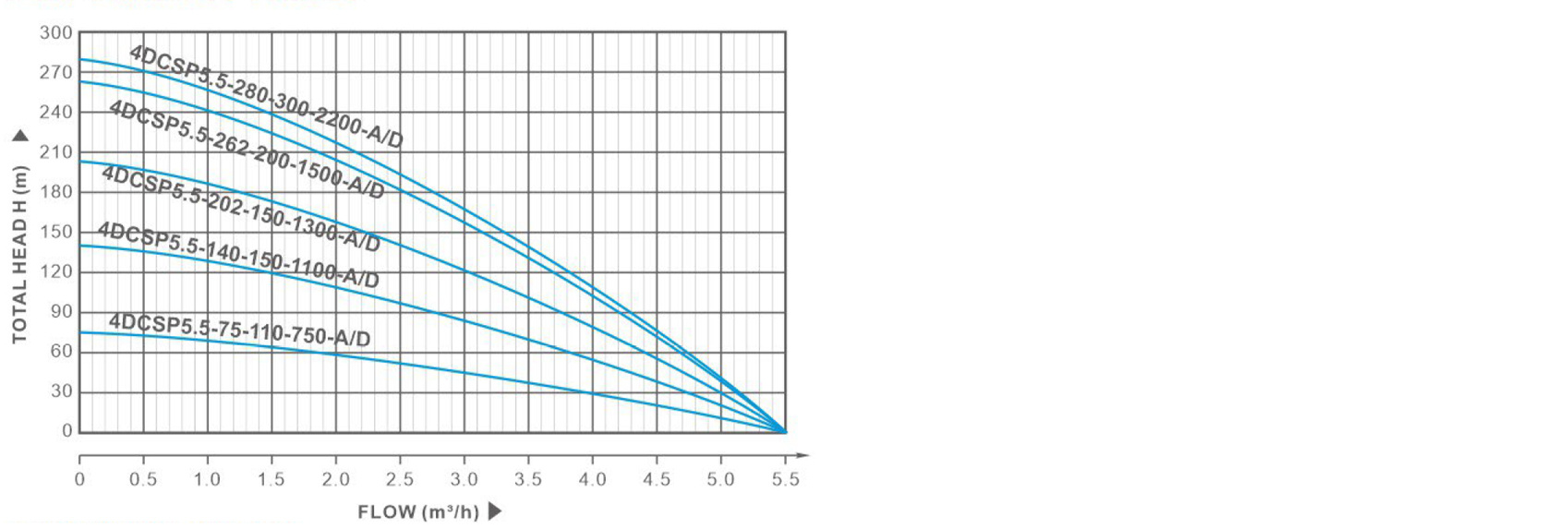

PERFORMANCE TABLE
ITEM Motor Power
Capacity and head Length L /min 0 17 25 33 42 50 58 67 75 83 m3/h 0 1 1.5 2 2.5 3 3.5 4 4.5 5 mm 4DCSP5.5-75-110-750-A/D Head
（m）
75 66 61 58 48 41 35 30 27 19 Ø96X535 4DCSP5.5-140-150-1100-A/D 140 124 115 96 85 74 62 51 35 24 Ø96X595 4DCSP5.5-202-150-1300-A/D 202 156 121 101 95 85 70 55 37 27 Ø96X685 4DCSP5.5-262-200-1500-A/D 262 162 127 119 109 94 76 59 40 30 Ø96X785 4DCSP5.5-280-300-2200-A/D 280 245 224 185 147 131 105 79 48 33 Ø96X915 TECHNICAL DATA
ITEM
Voltage
(v)Power
(w)Max.
Flow
(m3/h)Max.
Head
(m)Outlet
(in)Lnput Voltage Solar Panels Suggestion （AC） （DC） （DC） （AC） Voltage
(V)Power
(w)Quantity
(pcs)Connection 4DCSP7.5-106-150-1300-A/D 220V 110V 1300 7.5 106 1.25”-1 80V-410V 150V-264V 36 340 5 4DCSP7.5-136-200-1500-A/D 220V 150V 1500 7.5 136 1.25”-1 80V-410V 150V-264V 36 340 6
4DCSP7.5-155-300-2200-A/D 220V 300V 2200 7.5 155 1.25”-1 80V-410V 150V-264V 36 340 8
4DCSP10-74-200-1500-A/D 220V 200V 1500 10 74 2”-1.5” 80V-410V 150V-264V 36 340 6 4DCSP11-105-300-2200-A/D 220V 300V 2200 11 105 2”-1.5” 80V-410V 150V-264V 36 340 8 4DCSP18-46-200-1500-A/D 220V 200V 1500 18 46 2”-1.5” 80V-410V 150V-264V 36 340 6 4DCSP19-56-300-2200-A/D 220V 300V 2200 19 56 2”-1.5” 80V-410V 150V-264V 36 340 8 4DCSP21-31-200-1500-A/D 220V 200V 1500 21 31 2”-2” 80V-410V 150V-264V 36 340 6 4DCSP21-36-300-2200-A/D 220V 300V 2200 21 36 2”-2” 80V-410V 150V-264V 36 340 8 PERFORMANCE TABLE

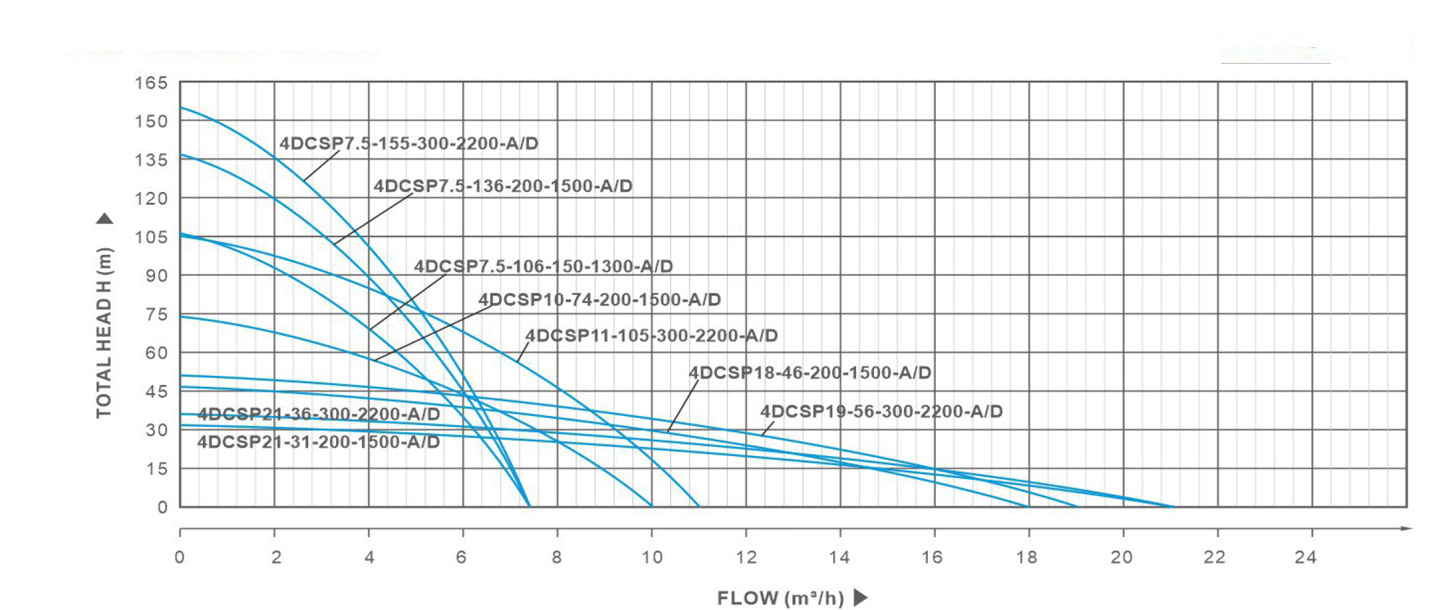

ITEM Motor Power
Capacity and head Length L /min 0 33 67 100 133 167 200 233 267 300 333 350 m3/h 0 2 4 6 8 10 12 14 16 18 20 21 mm 4DCSP7.5-106-150-1300-A/D Head
（m）
106 91 61 28 / / / / / / / / Ø96X555 4DCSP7.5-136-200-1500-A/D 136 98 75 30 / / / / / / / / Ø96X595 4DCSP7.5-155-300-2200-A/D 155 133 107 52 / / / / / / / / Ø96X705 4DCSP10-74-200-1500-A/D 74 71 58 43 26 17 / / / / / / Ø96X525 4DCSP11-105-300-2200-A/D 105 100 93 74 43 19 / / / / / / Ø96X645 4DCSP18-46-200-1500-A/D 46 42 35 29 23 18 14 11 7 3 / / Ø96X590 4DCSP19-56-300-2200-A/D 56 52 50 49 45 43 35 29 22 5 / / Ø96X705 4DCSP21-31-200-1500-A/D 31 30 29 28 23 19 16 14 11 8 5 3 Ø96X550 4DCSP21-36-300-2200-A/D 36 33 32 31 26 22 19 17 14 11 7 4 Ø96X610 TECHNICAL DATA
ITEM
Voltage
(v)Power
(w)Max.
Flow
(m3/h)Max.
Head
(m)Outlet
(in)Lnput Voltage Solar Panels Suggestion （AC） （DC） （DC） （AC） Voltage
(V)Power
(w)Quantity
(pcs)Connection 4/6DCSP31-18-150-1100-A/D 220V 150V 1100 31 18 3” 80V-410V 150V-264V 36 340 4
4/6DCSP35-22-200-1500-A/D 220V 200V 1500 35 22 3” 80V-410V 150V-264V 36 340 6 4/6DCSP36-38-399-2200-A/D 220V 300V 2200 36 38 3” 80V-410V 150V-264V 36 340 8

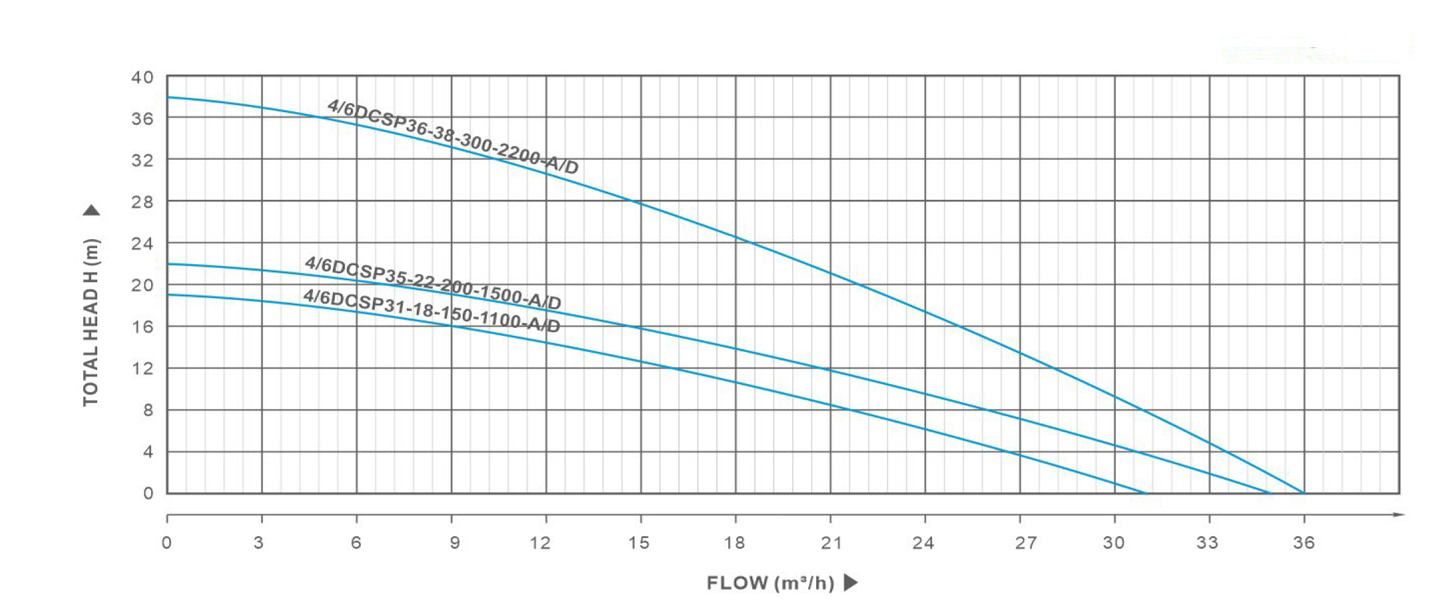

PERFORMANCE TABLE
ITEM Motor Power
Capacity and head Length L /min 0 67 133 200 267 333 400 467 533 583 m3/h 0 4 8 12 16 20 24 28 32 35 mm 4/6DCSP31-18-150-1100-A/D Head
（m）
18 17 16 15 13 10 7 4 / / Ø145X535 4/6DCSP35-22-200-1500-A/D 22 21 20 18 16 13 10 7 4 1 Ø145X535 4/6DCSP36-38-399-2200-A/D 38 37 35 33 27 23 17 12 7 2 Ø145X625 -
(n= 4000r/min)
(n= 4000r/min)
(n= 4000r/min)
