4DCQJ-A/D

Category：

Product Center

Solar Water Solutions

4-inch AC / DC solar deep well pump

4DCQJ-A/D Brushless Deep Solar Well PumpS:4-inch AC / DC impeller type solar deep well pump (outer diameter 96mm), the impeller adopts plastic PC,
Main features:
1) Single AC power supply (AC only)
2) Single DC power supply (only solar panels)
3) Economical model: AC and DC power supply at the same time (solar panel is preferred)
4) High end model: full power AC / DC automatic hybrid compensation (the minimum power of solar panel can be 1W) can increase the mobile Internet function of mobile app

Enquiry

Back to list

Product description
Model parameter table
Performance curve
Package

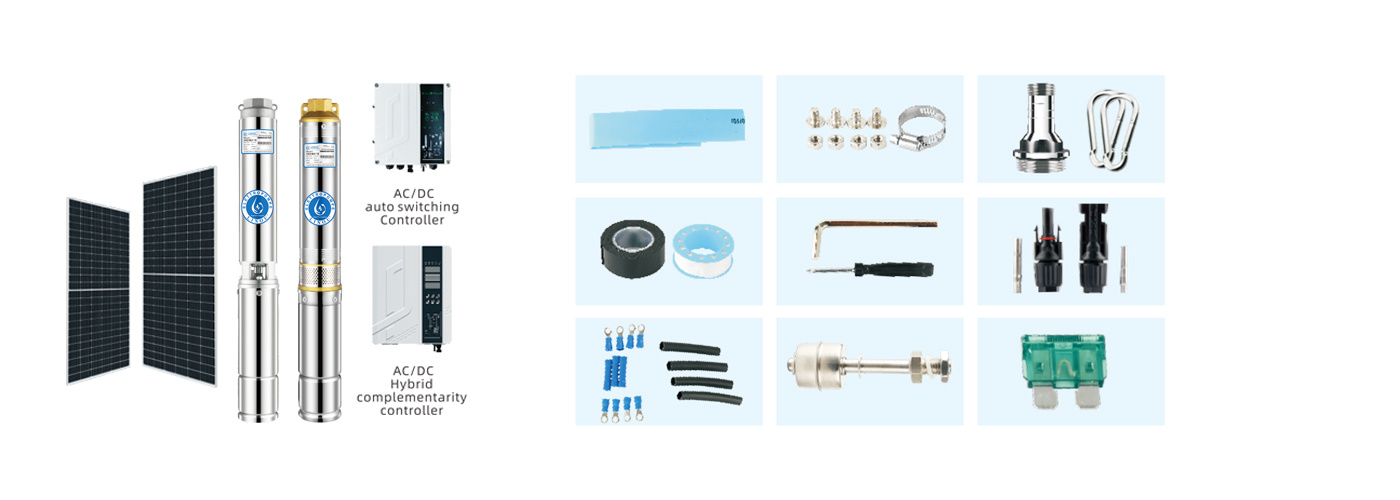

Parts

4" AC/DC Brushless Deep Solar Well PumpS

Installation and use:

The whole solar pump device is mainly composed of solar panel, control box and pump. Submersible solar pump uses solar energy to pump water and deliver water. This is a submersible pump. This is the most attractive way to supply water in sunny areas in the world today, especially in remote areas lacking electricity and electricity. It is mainly used for domestic water supply, agricultural irrigation, garden irrigation, etc. In addition to water pumps and renewable energy sources, solar water pumps also integrate all necessary control, communication and auxiliary equipment and are delivered as a complete system. The system can be combined and adapted to any needs, matching the conditions of the installation site. The choice of energy and a wide range of performance ensure great flexibility.

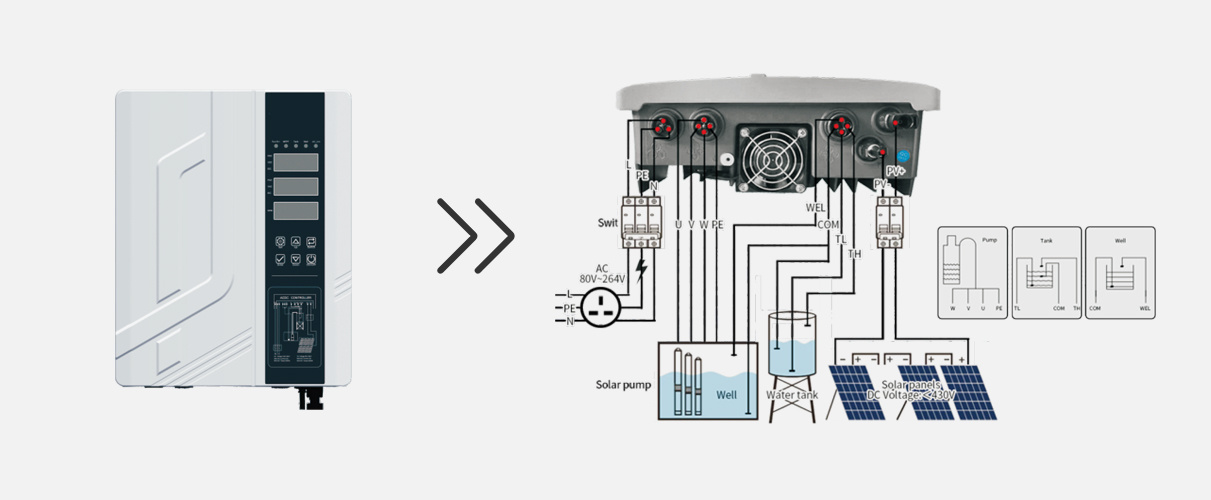

AC/DC AUTOMATIC SWITCHING CONTROLLER
WORKING ENVIRONMENT AND ELECTRICALPROPERT

Controller and Pump Matching Method
Controller Model	Adaptable Pump	DC Max.Input Current (A)	AC Max.Input Current (A)	DC Input Voltage (V)	AC Input Voltage (V)	Working Temperature (℃)
VH-AC220V/DC110V	Rated AC220V/DC110V Pump	12	20	108-410	100-264	-15-60
VH-AC220V/DC150V	Rated AC220V/DC150V Pump	12	20	108-410	100-264	-15-60
VH-AC220V/DC200V	Rated AC220V/DC200V Pump	12	20	108-410	100-264	-15-60
VH-AC220V/DC300V	Rated AC220V/DC300V Pump	12	20	108-410	100-264	-15-60

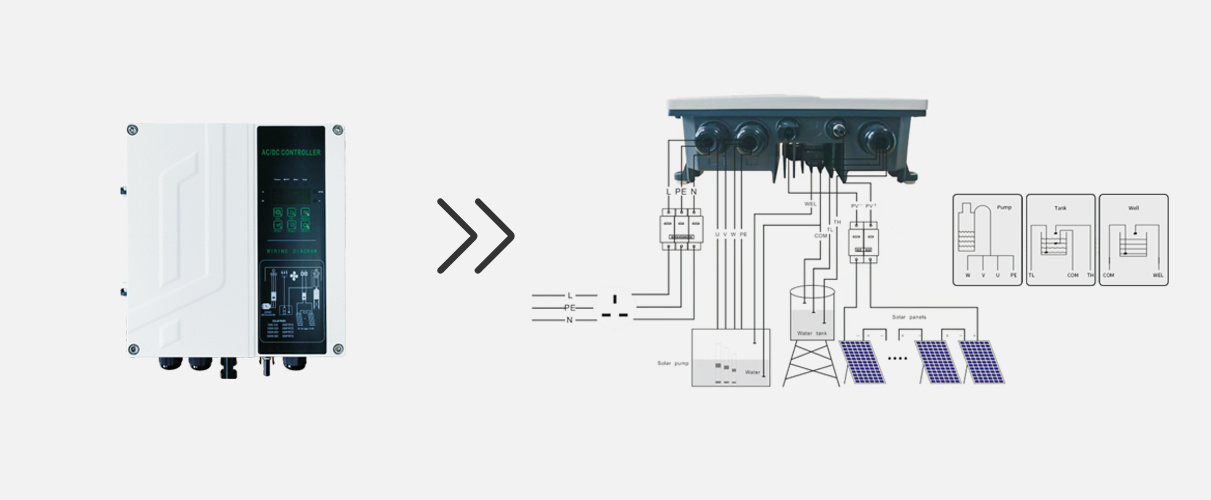

AC/DC HYBRID COMPL EMENTARITY CONTROLLER
WORKING ENVIRONMENT AND ELECTRICALPROPERTY

Controller and Pump Matching Method
Controller Model	Adaptable Pump	DC Max.Input Current (A)	AC Max.Input Current (A)	DC Input Voltage (V)	AC Input Voltage (V)	Working Temperature (℃)
VH-AC220V/DC110V	Rated AC220V/DC110V Pump	12	15	80-410	150-264	-15-60
VH-AC220V/DC150V	Rated AC220V/DC150V Pump	12	15	80-410	150-264	-15-60
VH-AC220V/DC200V	Rated AC220V/DC200V Pump	12	15	80-410	150-264	-15-60
VH-AC220V/DC300V	Rated AC220V/DC300V Pump	12	15	80-410	150-264	-15-60

MPPT SOLAR CONTROLLER

LED display: AC voltage DC voltage AC current DC current motor speed fault code.
Intelligent control: automatic start and stop function of water pump, water shortage protection function of water pump, automatic control of water level of water tower (external floating ball switch). Solar maximum tracking and pump fault display
Automatic AC / DC switching: automatic AC switching when the solar illumination is less than 500W.
AC / DC hybrid complementary model: full power AC / DC automatic hybrid compensation (the minimum power of solar panel can reach 1W) can increase the mobile Internet function of mobile applications
Protection grade: IP65
Operating temperature: - 15 ℃ - 65 ℃
Speed regulation of control motor: 1000-4500r / min
Maximum current: DC 12a, AC 20A

Permanent magnet DC brushless synchronous motor: the motor adopts n40sh rare earth strong magnet, 180 ℃ high temperature enamelled wire and 600 silicon steel sheet. The utility model has the advantages of simple structure, high reliability, small volume, high power, high efficiency, energy saving and longer service life. Machine automatic winding technology. Stainless steel shaft, high precision bearing, silicon carbide mechanical seal. Improve efficiency by 25%, save energy and reduce the number of solar panels.

Key words:

3dcqj
the
is
energy
water
solar
and
pump
in
of

TECHNICAL DATA

ITEM

Voltage
(v)

Power
(w)

Max.
Flow
(m³/h)

Max.
Head
(m)

Outlet
(in)

Lnput Voltage

Solar Panels Suggestion

（AC）

（DC）

（AC）

Voltage
(V)

Power
(w)

Quantity
(pcs)

Connection

4DCQJ7-57-110-750-A/D

220V

110V

750

1.25”-1”

80V-410

150V-264V

340

4DCQJ7-84-150-1100-A/D

220V

150V

1100

1.25”-1”

80V-410

150V-264V

340

4DCQJ7-115-150-1300-A/D

220V

150V

1300

115

1.25”-1”

80V-410

150V-264V

340

4DCQJ7-144-200-1500-A/D

220V

200V

1500

144

1.25”-1”

80V-410

150V-264V

340

4DCQJ7-170-300-2200-A/D

220V

300V

2200

170

1.25”-1”

80V-410

150V-264V

340

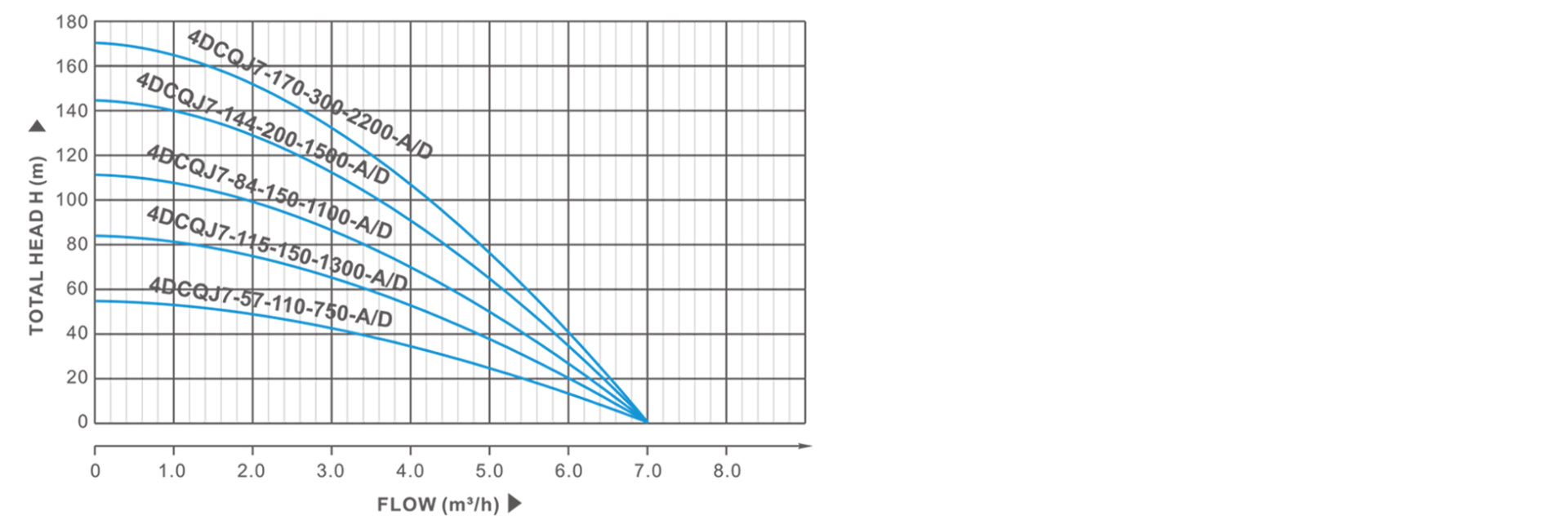

PERFORMANCE TABLE

ITEM	Motor Power	Capacity and head									Length
	L /min	0	17	33	50	58	67	83	100	117	Length
	m³/h	0	1	2	3	3.5	4	5	6	7	mm
4DCQJ7-57-110-750-A/D	Head （m）	57	56	53	50	46	43	36	27	16	Ø96X562
4DCQJ7-84-150-1100-A/D		84	77	74	72	67	60	49	35	20	Ø96X614
4DCQJ7-115-150-1300-A/D		115	105	87	80	71	64	43	38	25	Ø96X666
4DCQJ7-144-200-1500-A/D		144	120	99	88	80	72	53	43	28	Ø96X718
4DCQJ7-170-300-2200-A/D		170	144	118	105	96	86	63	51	33	Ø96X790

TECHNICAL DATA

ITEM

Voltage
(v)

Power
(w)

Max.
Flow
(m³/h)

Max.
Head
(m)

Outlet
(in)

Lnput Voltage

Solar Panels Suggestion

（AC）

（DC）

（AC）

Voltage
(V)

Power
(w)

Quantity
(pcs)

Connection

4DCQJ9-45-110-750-A/D

220V

110V

750

2”-1.5”

80V-410V

150V-264V

340

4DCQJ9-58-150-1100-A/D

220V

150V

1100

2”-1.5”

80V-410V

150V-264V

340

4DCQJ9-71-150-1300-A/D

220V

150V

1300

2”-1.5”

80V-410V

150V-264V

340

4DCQJ9-95-200-1500-A/D

220V

200V

1500

2”-1.5”

80V-410V

150V-264V

340

4DCQJ9-125-300-2200-A/D

220V

300V

2200

125

2”-1.5”

80V-410V

150V-264V

340

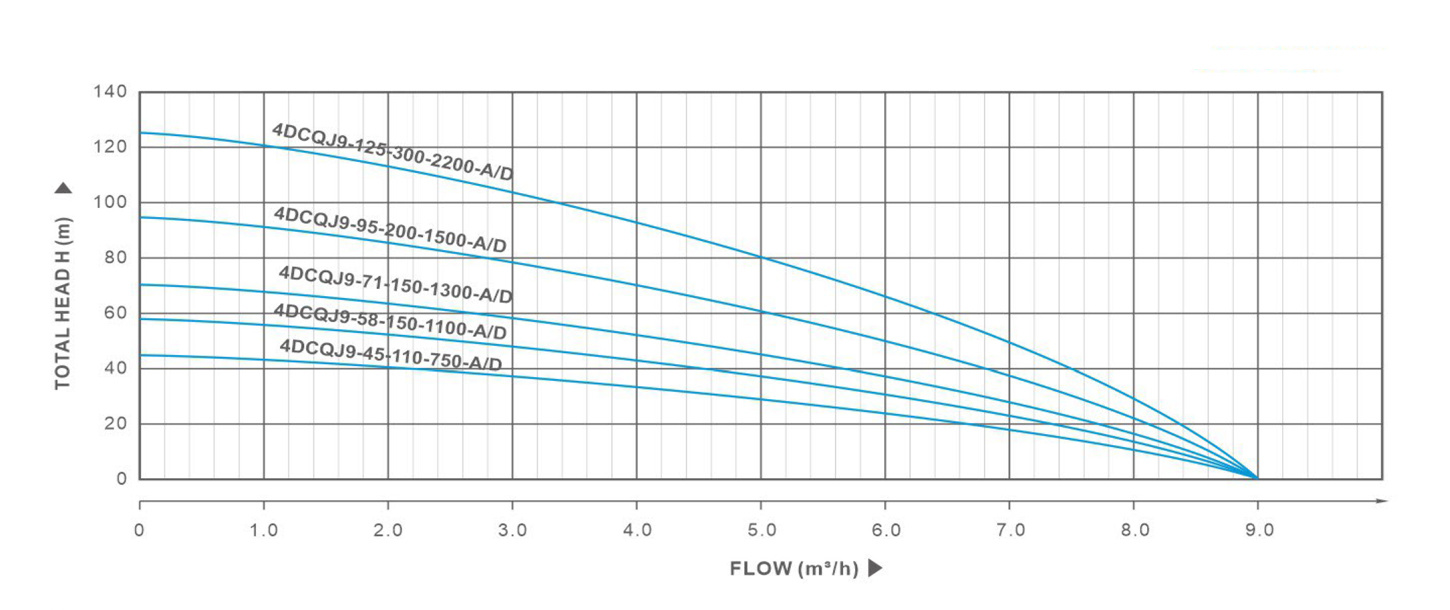

PERFORMANCE TABLE

ITEM	Motor Power	Capacity and head										Length
	L /min	0	17	33	50	58	83	100	117	133	150	Length
	m³/h	0	1	2	3	4	5	6	7	8	9	mm
4DCQJ9-45-110-750-A/D	Head （m）	45	41	39	36	35	28	23	18	12	7	Ø96X584
4DCQJ9-58-150-1100-A/D		58	53	50	43	39	33	27	21	15	8	Ø96X584
4DCQJ9-71-150-1300-A/D		71	67	63	54	48	42	33	26	17.5	9	Ø96X615
4DCQJ9-95-200-1500-A/D		95	92	90	71	64	57	43	33	26	12	Ø96X647
4DCQJ9-125-300-2200-A/D		125	118	115	106	96	86	65	50	39	18	Ø96X761

TECHNICAL DATA

ITEM

Voltage
(v)

Power
(w)

Max.
Flow
(m³/h)

Max.
Head
(m)

Outlet
(in)

Lnput Voltage

Solar Panels Suggestion

（AC）

（DC）

（AC）

Voltage
(V)

Power
(w)

Quantity
(pcs)

Connection

4DCQJ13-38-110-750-A/D

220V

110V

750

2”- 2”

80V-410V

150V-264V

340

4DCQJ13-45-150-1100-A/D

220V

150V

1100

2”- 2”

80V-410V

150V-264V

340

4DCQJ13-65-150-1300-A/D

220V

150V

1300

2”- 2”

80V-410V

150V-264V

340

4DCQJ13-80-200-1500-A/D

220V

200V

1500

2”- 2”

80V-410V

150V-264V

340

4DCQJ13-100-300-2200-A/D

220V

300V

2200

100

2”- 2”

80V-410V

150V-264V

340

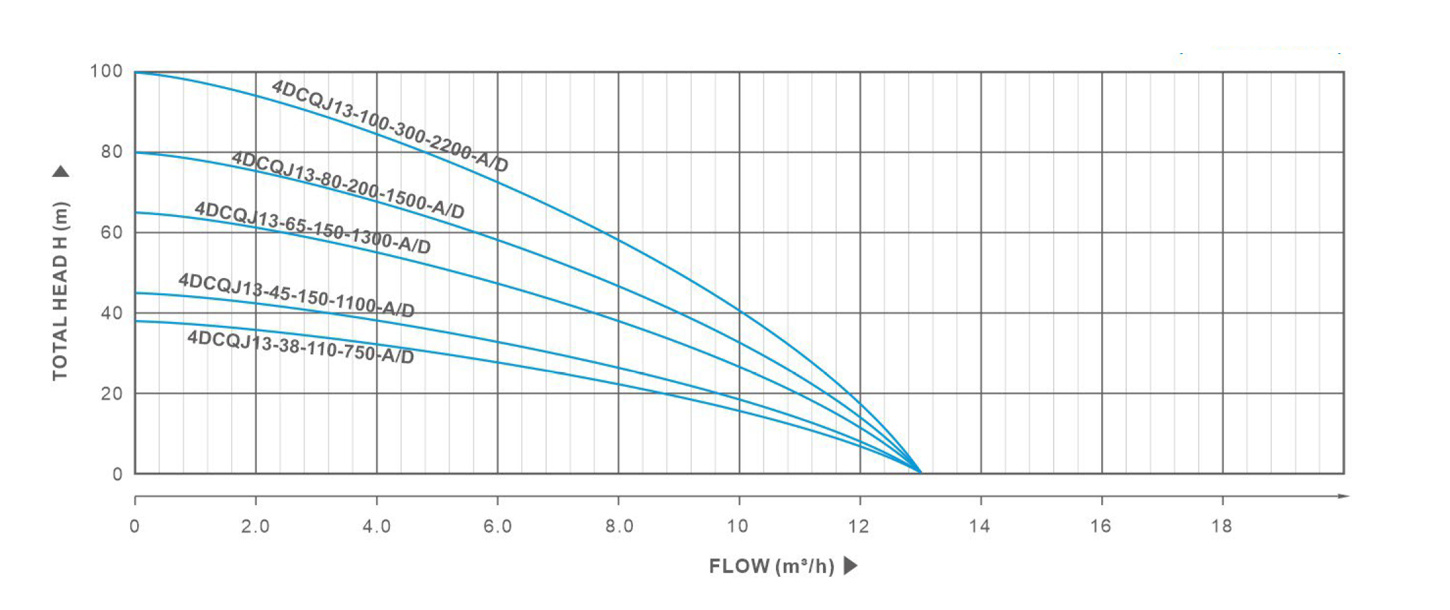

PERFORMANCE TABLE

ITEM	Motor Power	Capacity and head										Length
	L /min	0	33	67	100	133	150	167	200	217	233	Length
	m³/h	0	2	4	6	8	9	10	12	13	14	mm
4DCQJ13-38-110-750-A/D	Head （m）	38	34	35	32	26	22	18	13	9	5	Ø96X561
4DCQJ13-45-150-1100-A/D		45	44	43	37	28	24	19	14	10	7	Ø96X596
4DCQJ13-65-150-1300-A/D		65	60	48	42	32	28	24	20	16	12	Ø96X630
4DCQJ13-80-200-1500-A/D		80	72	58	51	39	34	29	24	20	15	Ø96X665
4DCQJ13-100-300-2200-A/D		100	96	75	66	50	42	36	32	25	19	Ø96X720

TECHNICAL DATA

ITEM

Voltage
(v)

Power
(w)

Max.
Flow
(m³/h)

Max.
Head
(m)

Outlet
(in)

Lnput Voltage

Solar Panels Suggestion

（AC）

（DC）

（AC）

Voltage
(V)

Power
(w)

Quantity
(pcs)

Connection

4DCQJ16-45-110-750-A/D

220V

110V

750

2”- 2”

80V-410V

150V-264V

340

4DCQJ16-50-150-1100-A/D

220V

150V

1100

2”- 2”

80V-410V

150V-264V

340

4DCQJ16-60-150-1300-A/D

220V

1500V

1300

2”- 2”

80V-410V

150V-264V

340

4DCQJ16-70-200-1500-A/D

220V

200V

1500

2”- 2”

80V-410V

150V-264V

340

4DCQJ16-80-300-2200-A/D

220V

300V

2200

2”- 2”

80V-410V

150V-264V

340

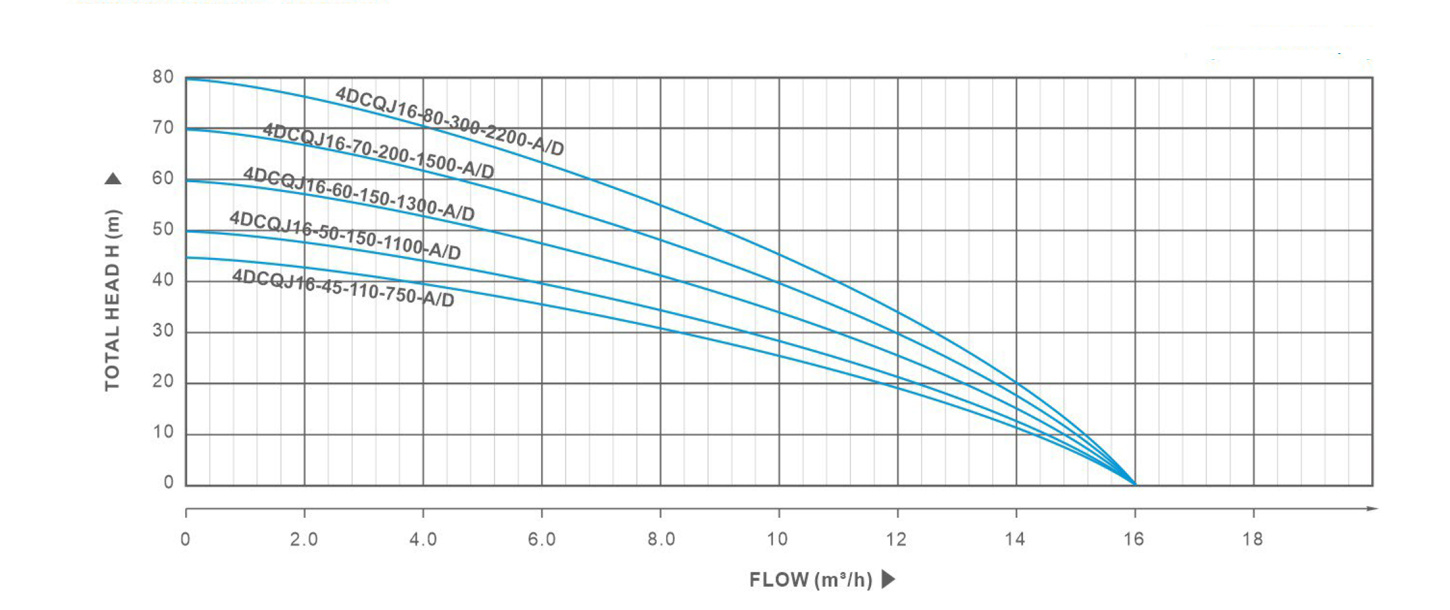

PERFORMANCE TABLE

ITEM	Motor Power	Capacity and head										Length
	L /min	0	67	100	133	150	167	200	217	233	250	Length
	m³/h	0	4	6	8	9	10	12	13	14	15	mm
4DCQJ16-45-110-750-A/D	Head （m）	45	38	35	31	28	25	20	16	14	10	Ø96X561
4DCQJ16-50-150-1100-A/D		50	45	40	35	30	28	24	19	16	12	Ø96X596
4DCQJ16-60-150-1300-A/D		60	52	45	39	33	31	28	22	18	14	Ø96X630
4DCQJ16-70-200-1500-A/D		70	61	56	48	43	39	32	26	22	16	Ø96X665
4DCQJ16-80-300-2200-A/D		80	72	67	60	54	590	39	31	26	18	Ø96X720

(n= 4000r/min)

(n= 4000r/min)

(n= 4000r/min)

(n= 4000r/min)
