DCQB
DCQB DC BRUSHLESS VORTEX SURFACE SOLAR PUMP:Vortex solar ground pump. The impeller is made of brass. It is mainly characterized by low power, low voltage and large water head. It is suitable for clean water without abrasive particles and liquid without chemical corrosivity to pump manufacturing materials. They are easy to use and economical and are ideal for household use, especially in combination with small pressure groups for water distribution and for irrigation and distribution of gardens. The pump should be installed in a closed environment or at least away from bad weather. The pump requires fewer solar panels and batteries, which also reduces the installation cost of the pump
- Product description
- Model parameter table

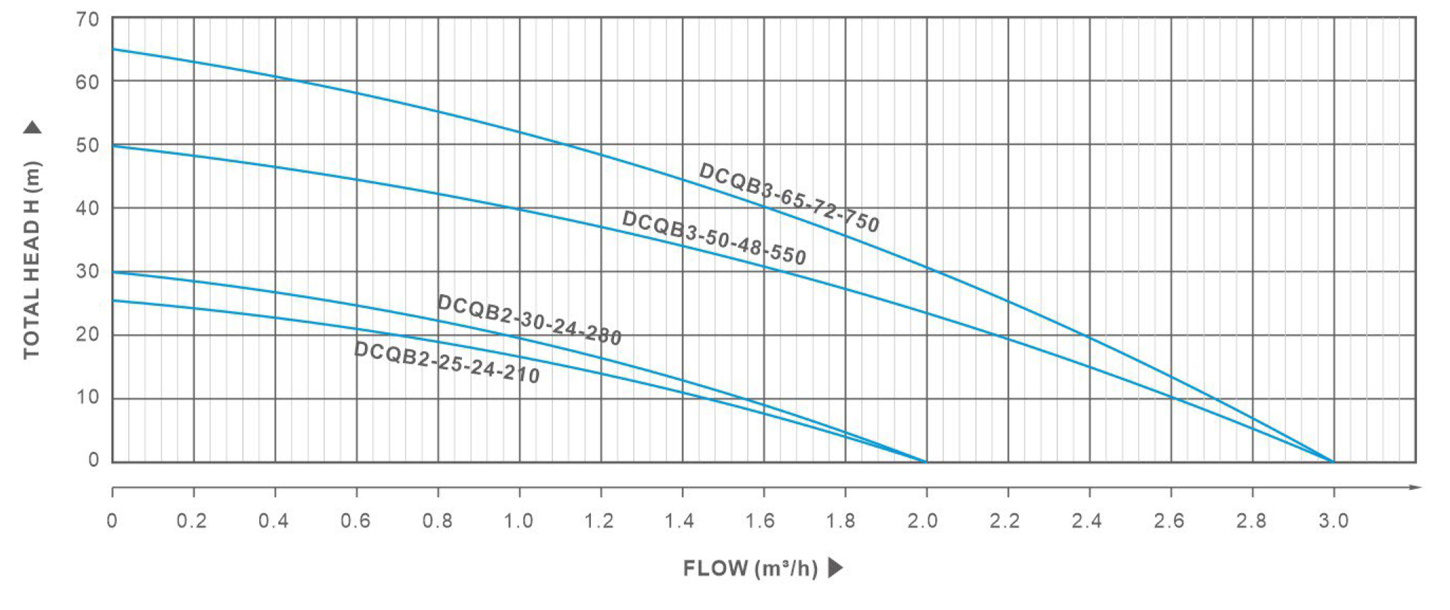

- Performance curve

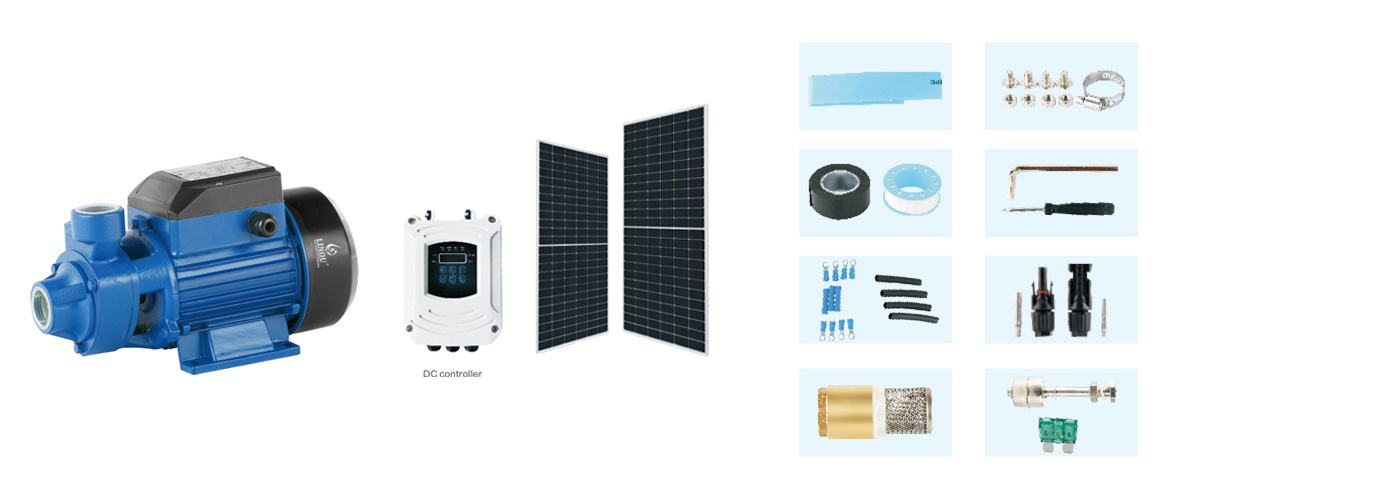

- Package
- Parts
-
DCQB DC BRUSHLESS VORTEX SURFACE SOLAR PUMP
Installation and use:
The whole device of solar pump is mainly composed of solar panel, control box and pump. The solar surface pump used to increase water pressure. Allow water to be transported to higher and bigger ranges. Working with solar energy, it is the most attractive water supply method in the sun-rich regions of the world, especially in remote areas that lack electricity. In addition to the pump and renewable energy source, solar pump incorporates all necessary controls, communication and ancillary units delivered as one complete system. The system can be combined and adapted to any need, matching the conditions on the installation site. The choice of energy source and wide- ranging performance ensures extreme flexibility.
DC CONTROLLER WORKING ENVIRON MENT AND ELECTRICAL PROPERT
Controller and Pump Matching Method
Controller Model Adaptable Pump Max.Input Current
(A)Max .Open Circuit Voltage
(V)MPPT Voltage Range
(V)Working Temperature
(℃)VH-24 Rated 24V Pump 15 <50 24-36 -15-60 VH-36 Rated 36V Pump 15 <50 24-36 -15-60 VH-48 Rated 48V Pump 15 <100 48-72 -15-60 VH-72 Rated 72V Pump 15 <150 72-108 -15-60 VH-110 Rated 110V Pump 15 <200 96-144 -15-60
MPPT SOLAR CONTROLLER
LED display: power、voltage 、current、 speed、 fault code.
Intelligent control: automatic start and stop function of water pump, water shortage protection function of water pump, automatic control of water level of water tower (external floating ball switch). Solar maximum tracking and pump fault display
Protection grade: IP65
Operating temperature: - 15 ℃ - 65 ℃
Speed regulation of control motor: 1000-4500r / min
Maximum current: 15A
Permanent magnet DC brushless synchronous motor: the motor adopts n40sh rare earth strong magnet, 180 ℃ high temperature enamelled wire, 600 silicon steel sheet, machine automatic winding technology, stainless steel shaft, high-precision bearing and silicon carbide mechanical seal. The utility model has the advantages of simple structure, high reliability, small volume, high power, high efficiency, energy saving and long service life. Improve efficiency by 25%, save energy and reduce the number of solar panels.
Key words:- 3dcqj
- the
- is
- energy
- water
- solar
- and
- pump
- in
- of
-
TECHNICAL DATA
ITEM
Voltage
(v)Best input
Voltage
(DC)Power
(w)Max.
Flow
(m3/h)Max.
Head
(m)Outlet
(in)Open circuit
voltage
(VOC)Solar Panels Suggestion Voltage
(V)Power
(w)Quantity
(pcs)Connection DCQB2-25-24-210 24 30-48V 210 2 25 1”x1” <50V 36 300 1
DCQB2-30-24-280 24 30-48V 280 2 30 1”x1” <50V 36 250 2
DCQB3-50-48-550 48 60-90V 550 3 50 1”x1” <100V 36 250 4
DCQB3-65-72-750 72 90-120V 750 3 65 1”x1” <150V 36 330 3
-
(n= 4000r/min)
