HF
CLEAN WATER CENTRIFUGE PUMP
- Product description
- Model parameter table

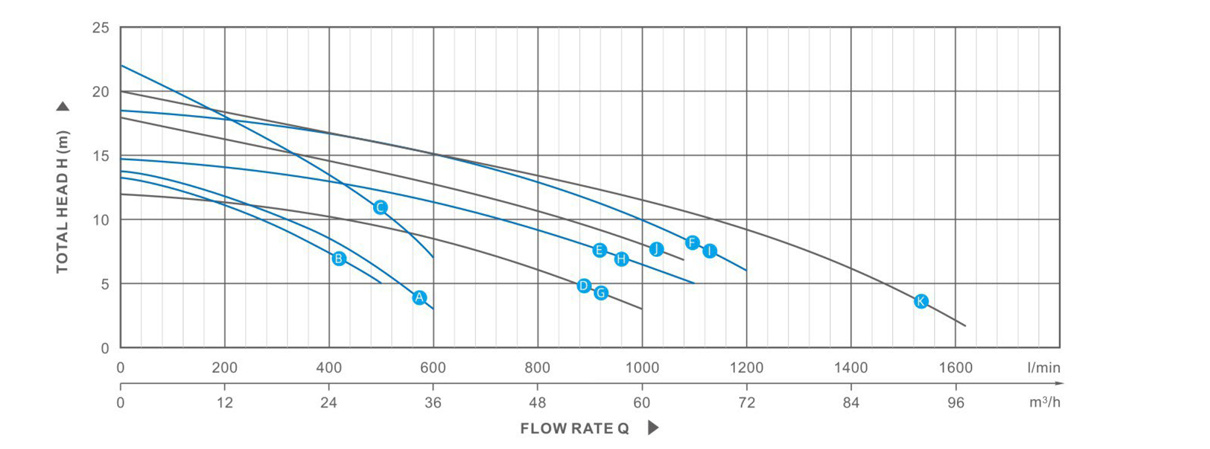

- Performance curve
- Package
- Parts
-
Applications
● Suitable for use in civil and agricultural applications.
● The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.Motor
● Two- pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if requestOperating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 8m
Component Construction
● Pump body: Cast iron
● Pump support: Cast iron
● Motor housing: Aluminum
● Impeller: Brass
● Motor shaft: Carbon steel, AISI304 SS if request
● Mechanical seal: SIC/GraphiteKey words:- vcm
- the
- and
- motor
- pump
- to
- for
- if
- in
- are
-
(50Hz n=2850 rpm/min)
Model
Inlet/ Outlet
Power
FlowQ(m3/h) 0 6 9 12 15 18 21 24 30 36 42 48 54 60 66 72 108 Inch kW HP (L/min) 0 100 150 200 250 300 350 400 500 600 700 800 900 1000 1100 1200 1800
HF 5B2"x2" 0.75 1.0 H(m)
13.7 13.2 13 12.5 11.6 10.5 9.2 8 5 -
HF 5A2"x2" 1.1 1.5 14.5 13.8 13.5 13.2 12.6 11.5 10.5 9.2 6.5 3
HF 5AM2"x2" 1.5 2.0 22.5 22 21.5 21 20 18.5 16.6 14.5 10 7
HF/6C3"x3" 1.1 1.5 - - 11.9 11.7 11.5 11.3 11 10.7 10.2 9 8 6.7 5 3 - - -
HF/6B3"x3" 1.5 2.0 - - 14.7 14.5 14.2 14 13.5 13.5 13 12 11 9.7 8.2 6.7 5 - -
HF/6A3"x3" 2.2 3.0 - - 18.5 18.1 18 17.8 17.5 17.2 16.8 16 15 13.8 12.2 10.5 8.3 6 -
HF/6CR4"x4" 1.1 1.5 - - 11.9 11.7 11.5 11.3 11 10.7 10.2 9 8 6.4 5 3 - - -
HF/6BR4"x4" 1.5 2.0 - - 14.7 14.5 14.2 14 13.7 13.5 13 12 11 9.7 8.2 6.7 5 - -
HF/6AR4"x4" 2.2 3.0 - - 18.5 18.1 18 17.8 17.5 17.2 16.8 16 15 13.8 12.2 10.5 8.3 6 -
HF/7BR4"x4" 3.0 4.0 - - 21.5 21 18.7 18.6 18.5 18.4 17.9 17 16.2 15 13.8 12.2 10.3 8.2
HF/7AR4"x4" 4.0 5.5 - - 24 23.5 23 22.5 22 21 20 19.5 19 18 17.3 16 15 13.5 2 -
n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 1"x1" 8.5 270x190x240 1"x1" 11.5 320x200x255 1"x1" 13.5 320x215x270 1"x1" 20 380x265x325 1"x1" 21 380x265x325 1"x1" 22 380x265x325 1"x1" 8.5 270x190x240 1"x1" 11.5 320x200x255 1"x1" 13.5 320x215x270 1"x1" 20 380x265x325 1"x1" 21 380x265x325 -
