VGP
CLEAN SELF PRIMING WATER PUMP
- Product description
- Model parameter table

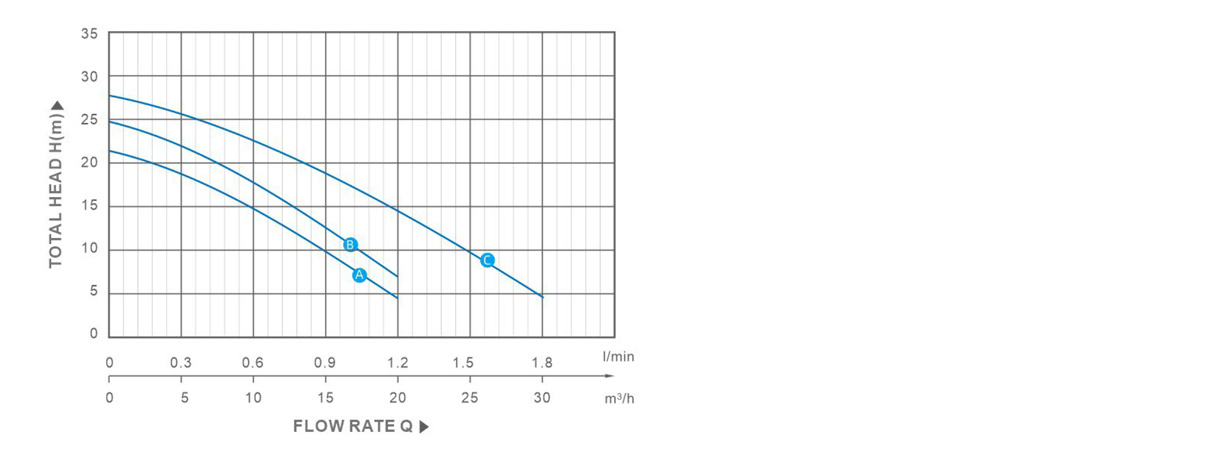

- Performance curve
- Package
- Parts
-
Applications
● Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
● They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments. The pump comes complete with a flap-check valve.
● Keep the water pressure stable to let water heater normally working.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector
● Single-phase 220V/50Hz, 60Hz if requestOperating conditions
● Liquid temperature up to 80°C
● Ambient temperature up to 40°C
● Total suction lift up to 9m
Component Construction
● Pump body: Cast iron+AISI304 SS insert
● Pump support: Pure brass
● Motor housing: Aluminum
● Impeller: Brass
● Motor shaft: AISI304 SS
● Mechanical seal: Ceramic/GraphiteKey words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
(50Hz n=2850 rpm/min)
Model
Inlet/ Outlet
Power
FlowQ(m3/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 Inch kW HP (L/min) 0 5 10 15 20 25 30
VGP125-A VGP125-B1"x1" 0.25 0.33 H(m)
22 18 15 10 5 - -
VGP126-A VGP126-B1"x1" 0.25 0.33 25 20 15 10 5 - -
VGP136-A VGP136-B1"x1" 0.55 0.75 35 30 25 20 15 10 5 -
n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 1"x1" 8.3 258x225x280 1"x1" 12.3 300x235x300 1"x1" 13.6 300x235x300 -

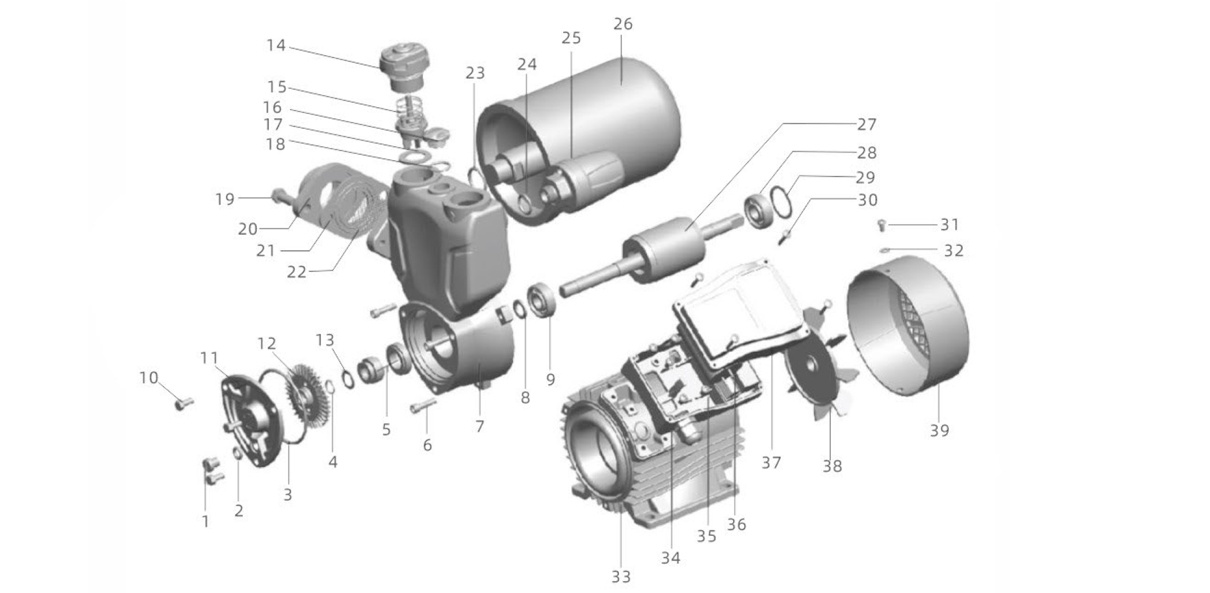

Materials Table
NO. Part Material 1 Dischargplug Brass 2 "O"ring Rubber 3 "O"ring Rubber 4 Snap ring STEEL 5 Mechanicalseal Ceramic graphite 6 Boll STEEL 7 Pump casing Iron 8 Drops guard Rubber 9 Bearing Assembly 10 Bolt STEEL 11 Pump casing cover Brass/lron 12 Impeller Brass 13 Washer STEEL 14 Flow sensor Nylon plastic 15 Flow valve with spring STEEL 16 Filling plug Brass 17 Rubber gasket Brass 18 “O”ring Rubber 19 Bolt STEEL 20 Suction flange lron 21 Gasket seal Rubber 22 Strainer mesh STEEL 23 “O" ring Rubber 24 “O”ring Rubber 25 Pressure switch Assembly 26 Tank STEEL 27 Rotor Assembly 28 Bearing Assembly 29 split ring Spring 30 Bolt STEEL 31 Bolt STEEL 32 Gasket STEEL 33 Casing withwound stator Cast aluminum 34 Terminalbox Assembly 35 Bolt STEEL 36 Capacitor Assembly 37 Terminal cover ABS 38 Fan POM 39 Fan cover STEEL
