CLEAN WATER PUMP
- Product description
- Model parameter table

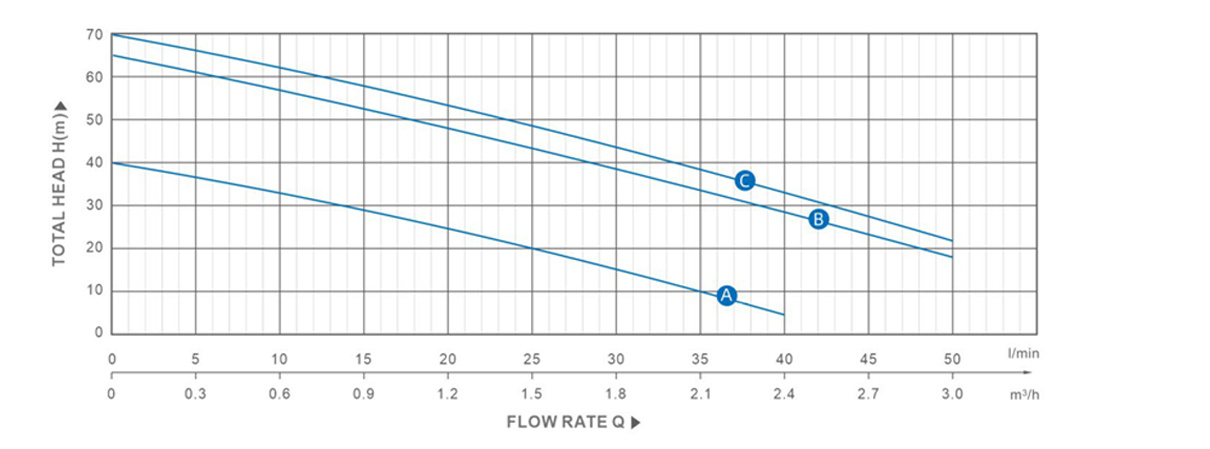

- Performance curve
- Package
- Parts
-
Applications
● Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
● They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.Motor
● Two- pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if requestOperating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 8m
Component Construction
● Pump body: Cast iron, with brass/AISI304 SS insert if request
● Pump support: Cast iron, with brass/ AISI304 SS insert if request
● Motor housing: Aluminum
● Impeller: Brass
● Motor shaft: Carbon steel, AISI304 SS if request
● Mechanical seal: Ceramic/ Graphite
Key words:- 3dcqg
- table
- tr
- table-responsive
- 36
- td
- 0.75
- background
- voltage
- solid
-
(50Hz n=2850 rpm/min)
Model
Inlet/ Outlet
Power
FlowQ(m3/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 3.0 Single phase Inch kW HP (L/min) 0 5 10 15 20 25 30 35 40 50
QB60 PM35 TQ60 MKP 601"x1" 0.37 0.5 Head
H(m)
40 38 33.5 29 24 19.5 15 10 5 -
QB70 PM45 TQ70 MKP 701"x1" 0.55 0.75 65 62 57 52 47 42 37 32 27 18
QB80 PM50 TQ80 MKP 801"x1" 0.75 1.0 70 66 61 56 51 46 41 36 31 22 -
n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 1"x1" 5.2 265x130x160 1"x1" 8.5 325x160x200 1"x1" 9.5 325x160x200 -

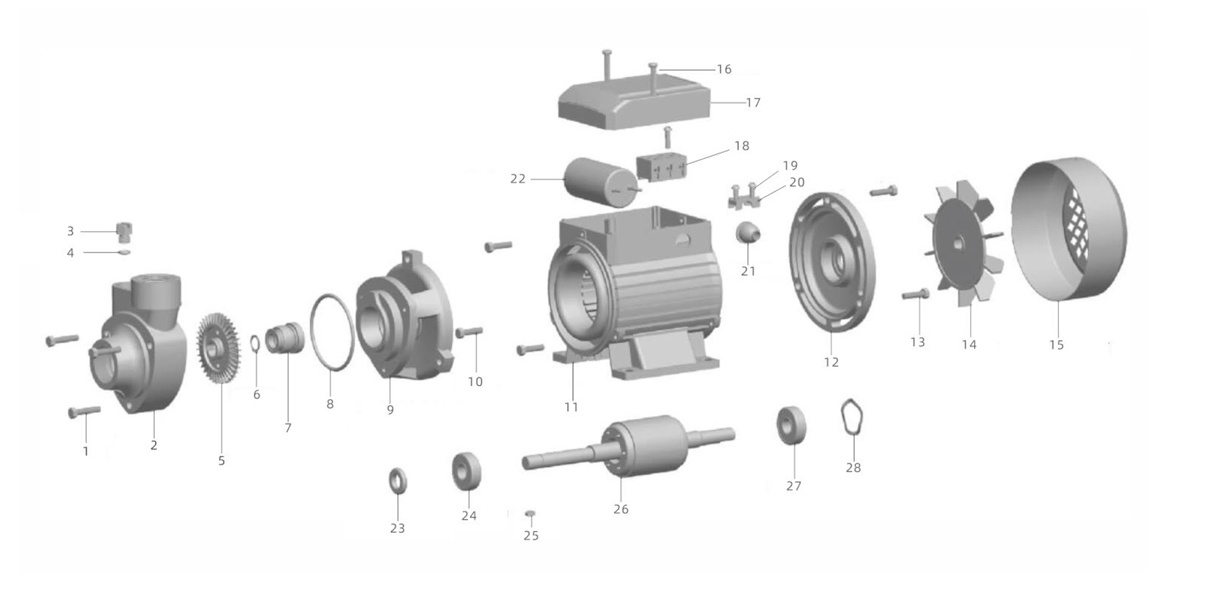

Materials Table
NO. Part Material 1 Bolt STEEL 2 Pump casing Iron 3 Charge plug brass 4 “O”ring rubber 5 Impeller brass 6 Snapring SS 7 Mechanical seal Ceramic graphite 8 "O" ring rubber 9 Pump support lron 10 Bolt STEEL 11 Casing with wound stator Cast aluminum 12 Driving cap Iron 13 Bolt STEEL 14 Fan POM 15 Fan cover STEEL 16 Bolt STEEL 17 Terminal cover ABS 18 Terminal board Assembly 19 Screw STEEL 20 Cable presser ABS 21 Fairlead Rubber 22 Capacitor Assembly 23 Drops guard Rubber 24 Bearing Assembly 25 Key STEEL 26 Rotor Assembly 27 Bearing Assembly 28 Split ring Spring
