DC BILGE PUMP

Category：

Product Center

Submersible pump

DC submersible pump

AUTOMATIC BILGE PUMP

Enquiry
Back to list
  • Product description
  • Model parameter table
  • Performance curve
  • Package
  • Parts

  •



    FEATURES



    ● All-in-one pump and switch-no external float switch needed
    ● Fully automatic bilge pump
    ● Contains no mercury
    ● Pump turns on at 50mm water level and turns off at 20mm water level
    ● Will not pump oil-straight motor oil that enters the bilge will not turn the pump on lgnition protected and corrosion resistant stainless steel shaft
    ● Size: 600GPH (2271LPH) ,750GPH ( 2838LPH) in 12 and 24 volt versions
    ● Includes a detachable base for easier cleaning and faster service
    ● Anti-fouling impeller
    ● Quiet and vibrationless operation




    FEATURES



    ● Pump and switch are stand alone products
    ● Traditional operation by float switch
    ● Compact, efficient, long life motors
    ● Run dry capable, saltwater safe, quiet industry standard mounting pattern
    ● Stainless steel shaft, anti-airlock protection, exclusive moisture tight seals
    ● Freshwater and saltwater compatible
    ● Size: 350, 500,750gph in 12and 24 volt versions
    ● Quick -disconnect base plate for easy installation and cleaning
    ● Entirely submersible and marine grade blocked wiring





    FEATURES



    ● Pump and switch are stand alone products
    ● Traditional operation by float switch
    ● Compact, efficient, long life motors
    ● Run dry capable, saltwater safe quiet, industry standard mounting pattern
    ● Stainless steel shaft, anti-airlock protection, exclusive moisture tight seals
    ● Freshwater and saltwater compatible
    ● Size: 1 500/2000gph in 12and 24 volt versions
    ● Quick-disconnect base plate for easy installation and cleaning
    ● Entirely submersible and marine grade blocked wiring




    Key words:
    • vcm
    • the
    • and
    • motor
    • pump
    • to
    • for
    • if
    • in
    • are

  • (50Hz n=2850 rpm/min)





    Model

    VOLT.

    FLOW RATE

    HEAD

    AMPS

    HOSE PORTS

    WIRE LEAD

    GIFTBOX SIZE

    N.G/ G.W
      (V) (GPH) (m) (A)     (mm) (KG)
    A02-106001 12 600 2.5 2 ID 19mm/3/4" 18AEG 1m 90x155x115 0.51/0.57
    A02-206001 24 600 2.5 1.5 ID 19mm/3/4" 18AEG 1m 90x155x115 0.51/0.57
    A02-107501 12 750 3 2.5 ID 19mm/3/4" 18AEG 1m 90x155x115 0.51/0.57
    A02-207501 24 750 3 1.4 ID 19mm/3/4" 18AEG 1m 90x155x115 0.51/0.57
    A02-109501 12 950 3.5 3.1 ID29mm/1-1/8" 18AEG 1m 90x155x115 0.51/0.57
    A02-209501 24 950 3.5 1.7 ID 29mm/1-1/8" 18AEG 1m 90x155x115 0.51/0.57
    A02-111001 12 1100 4 3.2 ID 29mm/1-1/8" 18AEG 1m 90x155x115 0.51/0.57
    A02-211001 24 1100 4 1.8 ID 29mm/1-1/8" 18AEG 1m 90x155x115 0.51/0.57





    Model

    VOLT.

    FLOW RATE

    HEAD

    AMPS

    HOSE PORTS

    WIRE LEAD

    GIFTBOX SIZE

    N.G/ G.W
      (V) (GPH) (m) (A)     (mm) (KG)
    A01-103501 12 350 1.5 0.8 ID 19mm/3/4" 18AEG 1m 90x100x118 0.36/0.40
    A01-105001 12 500 2 1.8 ID 19mm/3/4" 18AEG 1m 90x100x118 0.36/0.40
    A01-205001 24 500 2 1 ID 19mm/3/4" 18AEG 1m 90x100x118 0.36/0.40
    A01-107501 12 750 3.0 2.4 ID 19mm/3/4" 18AEG 1m 90x100x118 0.36/0.40
    A01-207501 24 750 3.0 1.2 ID 19mm/3/4" 18AEG 1m 90x100x118 0.36/0.40
    A01-111001 12 1100 4 3.2 ID 29mm/1-1/8" 18AEG 1m 90x100x118 0.36/0.40
    A01-211001 24 1100 4 1.7 ID 29mm/1-1/8" 18AEG 1m 90x100x118 0.36/0.40





    Model

    VOLT.

    FLOW RATE

    HEAD

    AMPS

    HOSE PORTS

    WIRE LEAD

    GIFTBOX SIZE

    N.G/ G.W
      (V) (GPH) (m) (A)     (mm) (KG)
    A06-115001  12 1500 4 6.0 ID 29mm/1-1/8" 18AEG 1m 90x155x115  0.67/0.72
    A06-215001 24 1500 4 3.5 ID 29mm/1-1/8" 18AEG 1m 90x155x115 0.67/0.72
    A03-115001 12 1500 5 7.0 ID 29mm/1-1/8" 14AEG 1m 110x153x130 1.13/1.21
    A03-215001 24 1500 5 3.5 ID 29mm/1-1/8" 14AEG 1m 110x153x130 1.13/ 1.21
    A03-120001  12 2000 6 8.0 ID 29mm/1-1/8" 14AEG 1m 110x153x130 1.13/1.21
    A03-220001 24 2000 6 4 ID 29mm/1-1/8" 14AEG 1m 110x153x130 1.13/1.21





    Model

    VOLT.

    FLOW RATE

    HEAD

    AMPS

    HOSE PORTS

    WIRE LEAD

    GIFTBOX SIZE

    N.G/ G.W
      (V) (GPH) (m) (A)     (mm) (KG)
    BP1-G3000-01 12 3000 8 10 40 100 167x167x213 2.25/2.35
    BP2-G3000-01 24 3000 8 6.0 40 100 167x167x213 2.25/2.35
    BP1-G3500-01 12 3500 8 12 40 100 167x167x213 2.25/2.35
    BP2-G3500-01 24 3500 8 8.0 40 100 167x167x213 2.25/2.35
    BP1-G3700-01 12 3700 8 16 40 100 167x167x213 2.25/2.35
    BP2-G3700-01 24 3700 8 10 40 100 167x167x213 2.25/2.35
    BP1-G4000-01 12 4000 8 16 52 100 167x167x213 2.25/2.35
    BP2-G4000-01 24 4000 8 10 52 100 167x167x213 2.25/2.35

  •

    Model

    Inlet/Outlet

    N. W

    LxWxH
      Inch Kg mm
    WQ15-12-1.1 21/2" 33 260x220x550
    WQ7-15-1.1 2" 33 260x220x550
    WQ15-15-1.5 2" 37 255x205x560
    WQ15-20-2.2 2" 43 260x210x575
    WQ27-15-2.2 21/2" 46 260x210x575
    WQ25-20-3 21/2" 51 305x255x625
    WQ15-30-3 2" 48.5 305x255x625
    WQ15-32-4 2" 58.5 365x265x675
    WQ25-26-4 21/2" 58.5 365x265x675
    WQ30-22-4 3" 66.5 365x265x675
    WQ25-32-5.5 21/2" 68.5 365x265x705
    WQ30-30-5.5 3" 73 365x265x705
    WQ40-10-2.2 3" 43 260x210x575
    WQ43-13-3 3" 48.5 305x255x625
    WQ60-11-4 4" 62.5 365x265x675
    WQ65-20-7.5 4" 103 410x320x765
    WQ100-12-7.5 6" 103 410x320x765







  •

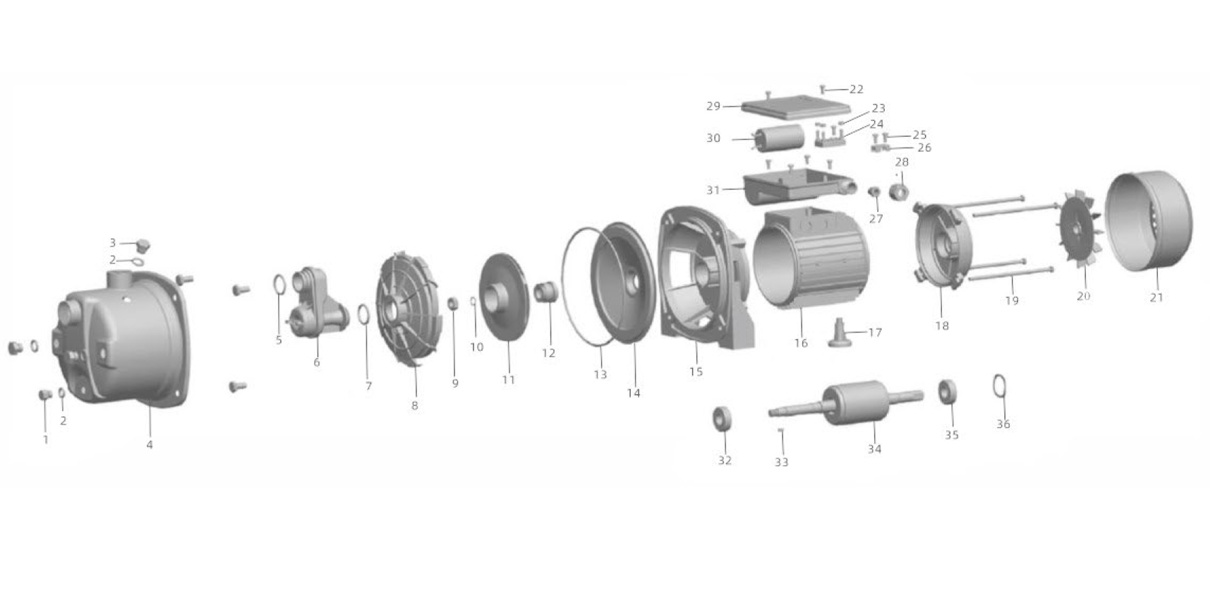

    Materials Table



    NO. Part Material
    1 Discharge plug STEEL
    2 "O" ring Rubber
    3 Charge plug STEEL
    4 Pump casing STEEL
    5 "O”ring Rubber
    6 Venturi pipe PPO
    7 "O” ring Rubber
    8 Diffuser PPO
    9 Nut STEEL
    10 Spring gasket STEEL
    11 Imoeller STEEL/Brass
    12 Mechanical seal Ceramic graphite
    13 "O”ring Rubber
    14 Pump casing cover STEEL
    15 Pump support Cast aluminum
    16 Casing with wound stator Cast aluminum
    17 Stand ABS
    18 Driving cap Iron
    19 Tie-rod STEEL
    20 Fan POM
    21 Fan cover STEEL
    22 Screw STEEL
    23 Fairlead STEEL
    24 Nut Assembly
    25 Screw STEEL
    26 Cable presser ABS
    27 Fairlead Rubber
    28 Nut ABS
    29 Terminal cover ABS
    30 Capacitor Assembly
    31 Terminal box ABS
    32 Bearing Assembly
    33 Key STEEL
    34 Rotor Assembly
    35 Bearing Assembly
    36 Split ring STEEL
