QDX-A-B-C-D
Category：
SUBMERSIBLE PUMPS
- Product description
- Model parameter table

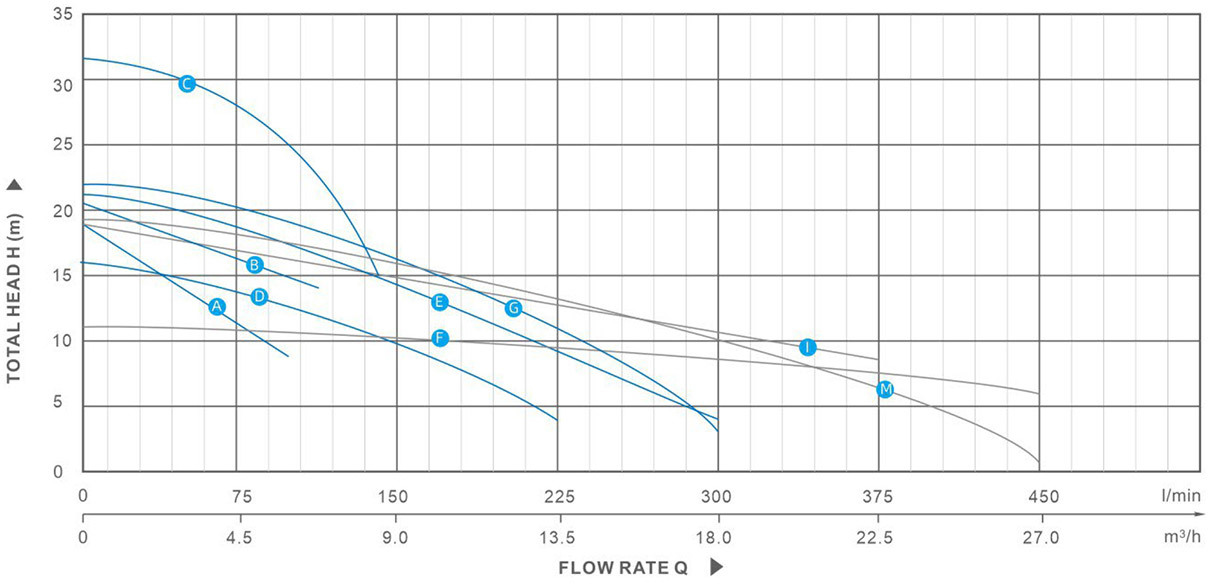

- Performance curve
- Package
- Parts
-
Applications
● Suitable for use with clean water that does not contain abrasive particles.
● As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as domestic, gardening, irrigation and emptying tanks.
Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP68
● Continuous service S1
● Thermal protector
● Single-phase 220V/50Hz, 60Hz if requestOperating conditions
● 5m maximum immersion depth
● Liquid temperature upto 35°C
● Maximum ambient temperature 40°CComponent Construction
● Pump body: Cast iron
● Suction filter: Aluminum
● Impeller: Aluminum
● Motor shaft: Carbon steel,AISI304 SS if request
● Mechanical seal: Ceramic/Graphite
● Cable: 8m power cable with plugKey words:- vcm
- the
- and
- motor
- pump
- to
- for
- if
- in
- are
-
(50Hz n=2850 rpm/min)
Model
Inlet/ Outlet
Power
FlowQ(m3/h) 0 1.2 2.4 3.6 4.8 6.0 7.2 8.4 Inch kW HP (L/min) 0 20 40 60 80 100 120 140
QDX1.5-17-0.37F-A/B/C/D1" 0.37 0.5 H(m)
18 16 15 13.5 11.2 8.2
QDX3-20-0.55F-A/B/C/D1" 0.55 0.75 20.5 20 19.5 18.5 17 14.5 12.5
QDX1.5-32-0.75F-A/B/C/D1" 0.75 1 32 31 30 29 27.5 23 19 15 Model Inlet/ Outlet
Power
FlowQ(m3/h) 0 4.5 9.0 13.5 18.0 22.5 27.0 Inch kW HP (L/min) 0 20 40 60 80 100 120
QDX10-10-0.55F-A/B/C/D1½" 0.55 0.75 H(m)
16 14 11.5 4
QDX7-13-0.75F-A/B/C/D1½" 0.75 1 21 20 18.5 7.5 4.5
QDX15-10-0.75F-A/B/C/D1¼" 0.75 1 11 10.5 10 9.5 8.5 7.5 5.8
QDX10-16-0.75F-A/B/C/D2½" 0.75 1 21 19 17 12.5 4
QDX15-15-1.1F-A/B/C/D1½" 1.1 1.5 18.5 17.8 16 14 11.5 7.3 1.5
QDX10-18-1.1 F-A/B/C/D2" 1.1 1.5 18 17.5 17 15 12 8 -
n=2850 rpm/min
-
Model Inlet/Outlet
N. W
LxWxH
Inch Kg mm 1" 9 190x150x390 1" 12 210x160x415 1" 13 225x180x430 1½" 13 225x165x415 1½" 14 225x165x420 1¼" 14.5 233x168x430 21½" 14 235x165x425
1½" 15 250x175x445 2" 15 240x175x450 -
